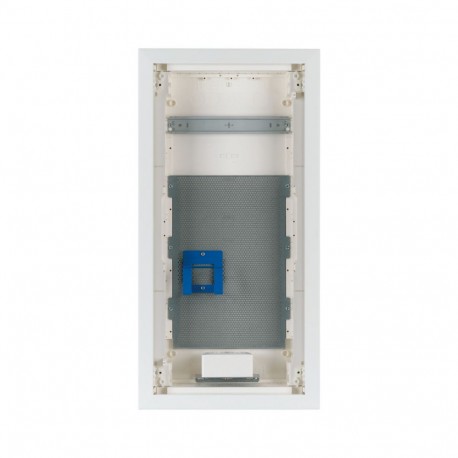

KLV-48UPM-SF 178833 Y7-178833 EATON ELECTRIC Compact distribution board-flush mounting multimedia 4-rows sup..

KLV-48UPM-SF

178833

Y7-178833

EATON-MOELLER

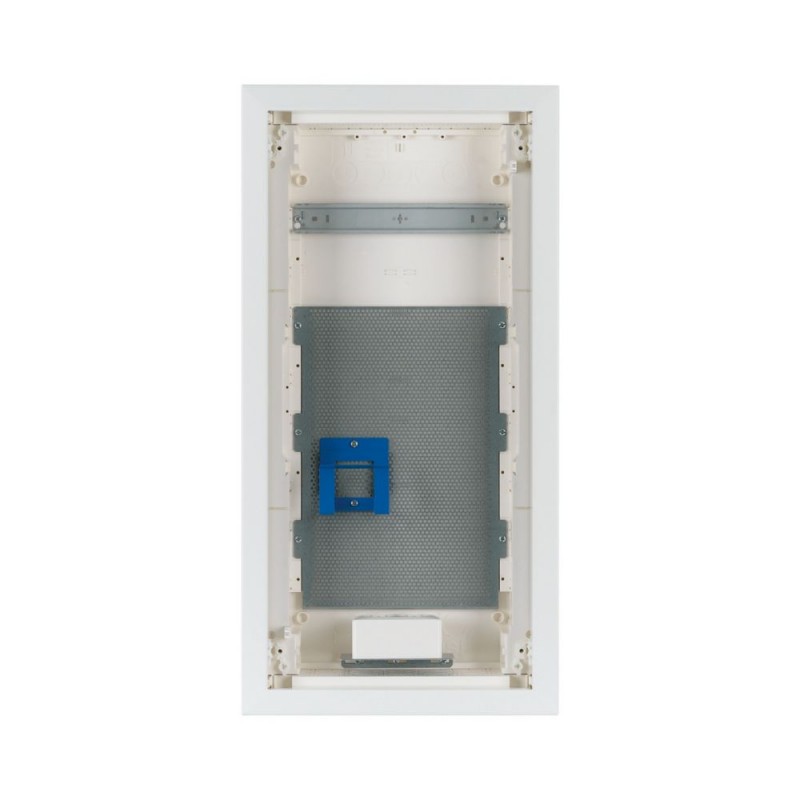

Compact distribution board-flush mounting; multimedia; 4-rows; super-slim sheet steel door

KLV-48UPM-SF

Eaton xComfort KLV LV systems Final Distribution Boards. Compact distribution board-flush mounting, multimedia, 4-rows, super-slim sheet steel door

Second generation KLV flush mounting media enclosures, plastic distribution board with sheet steel door with ventilation openings, marking slot in wall box, one-of-a-kind super-slim door frame design, rugged door cam lock, optionally replaceable with safety interlock, cable retainer for neat cable routing, optionally available in form of delivery for projects, optional door with frame with requested RAL color, comprehensive range of accessories, equipment supplied: enclosure, 1x mounting rail, microperforated mounting plate, 1x device holder, 2x single-way socket outlet with plug-in units and Euro2 adapter, spirit level for leveling , 3D adjustment element for mounting designed to adjust the mounting depth by up to 18 mm, cable retainer, nail lugs, installation instructions, special packaging designed to meet real-life application requirements. Standards: Approved for multi-media applications in GP universal enclosure in accordance with IEC/EN 60670-24. Protection class I.

More details


Data and telecommunication > Distributor for telecommunication

Compact Distribution Boxes

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton xComfort KLV multimedia distribution board
Catalog Number
178833
Model Code
KLV-48UPM-SF
EAN
4015081741625
Product Length/Depth
100 mm
Product Height
715 mm
Product Width
360 mm
Product Weight
6.5 kg
Compliances
RoHS conform
Certifications
IEC/EN 62208
IEC/EN 60670-24 (GP)

Delivery program

Type
Basic deviceInstallation distribution boardKLV multimedia
Model
Distributor enclosure
Application
Indoor (installation site)
Color
Traffic white (RAL 9016)
White

Technical data - electrical

Voltage rating at AC
230 V AC
Frequency rating of contacts
50 Hz

Technical data - mechanical

Mounting dimension
Other
Mounting method
Flush mounting
DIN-compatible
Flush mounted (plaster)
Material
Polystyren (plastic)
Sheet steel, powder-coated
Steel plate/plastic
Number of cores (dual) - max
12
Number of module space units per row
12
Number of mountable connection strips
12
Number of rows
4
Terminal type
Without terminals
Cable entry postion
Cable entries on top and bottom, side, back plate
Cover/door color
White
Module rack type
Media mounting plate
Protective shrouding material
Without shroud for protection against accidental contact

Temperature-rise verification as per IEC 60890

Heat diss. ambient 35°C delta T:20°C flush mount individ. encl. top(IEC 60890)
24 W
Heat diss. ambient 35°C delta T:35°C flush mount individ. encl. top(IEC 60890)
48 W

Design verification as per IEC/EN 61439 - technical data

Ambient operating temperature details
-5 °C - 40 °C

Design verification as per IEC/EN 61439

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
650 °C; meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2.6 Mechanical impact
IK05
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
IP30
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
Protection class 2, therefore not applicable.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 400 V AC
10.9.3 Impulse withstand voltage
4 kV
10.9.4 Testing of enclosures made of insulating material
Meets the product standard's requirements.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.

Additional information

Features
110-compatible
Fitted with:
Cable retainer
Nail lugs
Device support rails
2x single-way socket outlet
Door/Frame
Installation instructions
Wall trough
Microperforated mounting plate
Device holder
Spirit level for leveling
3D adjustment element for mounting designed to adjust the mounting depth by up to 18 mm
Functions
Basic device
Protection class
II (totally insulated)
Special features
IP30Protection Class IIPlastic enclosure with sheet steel door, white (RAL 9016)Note: To obtain protection class II, all devices installed on the mounting plate must be of the fully insulated type.
Used with
Basic device
Installation distribution board
KLV multimedia

ETIM for 178833 Data networking products (EC000374)
Feature Name Feature Value
Model (EF000010) Distributor enclosure
Mounting method (EF000003) Flush mounted
With connecting lugs (EF000398) No
Max. number of dual cores (EF003664) 12
Mounting dimension (standardised) (EF000397) Other
110-compatible (EF006673) Yes
LSA (EF007921) No
SID (EF009749) No
Material (EF002169) Steel plate/plastic
Degree of protection (IP) (EF005474) IP30
Degree of protection (NEMA) (EF011959) Other
Colour (EF000007) White
Height (EF000040) 715 mm
Width (EF000008) 360 mm
Depth (EF000049) 100 mm
Number of mountable connection strips (EF000393) 12
DIN-compatible (EFDE0024) Yes
Compatible with Grade2TV according to XP-C 90-483 (EFFR0001) No
Compatible with Grade3TV according to XP-C 90-483 (EFFR0002) No

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
KLV-48UPM-SF Y7-178833 178833 ES_302465.pdf 2 Mbytes KLV-48UPM-SF Y7-178833 178833 ES_302465.pdf
