KLV-48UPM-F 178832 EATON ELECTRIC Compact distribution board-flush mounting multimedia 4-rows flush sheet st..
KLV-48UPM-F
178832
EATON-MOELLER

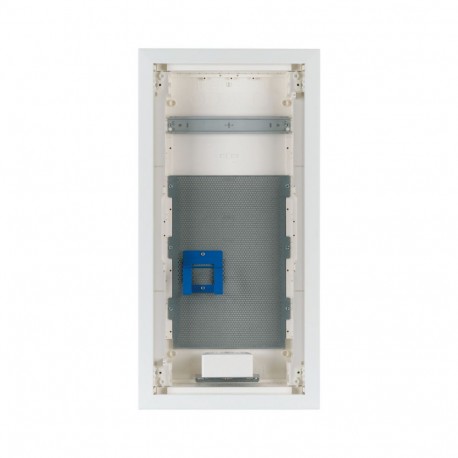

Compact distribution board-flush mounting; multimedia; 4-rows; flush sheet steel door
KLV-48UPM-F
Data and telecommunication > Distributor for telecommunication
Compact Distribution Boxes
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
More info
▲Compact distribution board-flush mounting; multimedia; 4-rows; flush sheet steel door
Second generation KLV flush mounting media enclosures, plastic distribution board with sheet steel door with ventilation openings, marking slot in wall box, slim door frame design, rugged door cam lock, optionally replaceable with safety interlock, cable retainer for neat cable routing, optionally available in form of delivery for projects, optional door with frame with requested RAL color, comprehensive range of accessories, equipment supplied: enclosure, 1x mounting rail, microperforated mounting plate, 1x device holder, 2x single-way socket outlet with plug-in units and Euro2 adapter, spirit level for leveling , 3D adjustment element for mounting designed to adjust the mounting depth by up to 18 mm, cable retainer, nail lugs, installation instructions, special packaging designed to meet real-life application requirements. Standards: Approved for multi-media applications in GP universal enclosure in accordance with IEC/EN 60670-24. Protection class I.
General specifications
Product name
Eaton xComfort KLV multimedia distribution board
Part no.
KLV-48UPM-F
EAN
4015081741618
Product Length/Depth
100 millimetre
Product height
715 millimetre
Product width
360 millimetre
Product weight
6.5 kilogram
Compliances
RoHS conform
Certifications
IEC/EN 60670-24 (GP)
IEC/EN 62208
IEC/EN 62208
Product Tradename
xComfort KLV
Product Type
Multimedia distribution board
Product Sub Type
None
Delivery program
Type
Basic deviceInstallation distribution boardKLV multimedia
Model
Distributor enclosure
Application
Indoor (installation site)
Color
Traffic white (RAL 9016)
White
White
Technical Data - Electrical
Frequency rating of contacts
50 Hz
Technical Data - Mechanical
Mounting dimension
Other
Mounting method
DIN-compatible
Flush mounting
Flush mounted (plaster)
Flush mounting
Flush mounted (plaster)
Material
Steel plate/plastic
Sheet steel, powder-coated
Polystyren (plastic)
Sheet steel, powder-coated
Polystyren (plastic)
Degree of protection
IK05 (impact resistance)
IP30
Other
IP30
Other
Number of cores (dual) - max
12
Number of module space units per row
12
Number of mountable connection strips
12
Number of rows
4
Terminal type
Without terminals
Cover/door color
White
Module rack type
Media mounting plate
Protective shrouding material
Without shroud for protection against accidental contact
Temperature-rise verification as per IEC 60890
Heat diss. ambient 35°C delta T:20°C flush mount individ. encl. top(IEC 60890)
24 W
Design verification as per IEC/EN 61439 - technical data
Ambient operating temperature details
-5 °C - 40 °C
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
650 °C; meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2.6 Mechanical impact
IK05
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
IP30
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
Protection class 2, therefore not applicable.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 400 V AC
10.9.3 Impulse withstand voltage
4 kV
10.9.4 Testing of enclosures made of insulating material
Meets the product standard's requirements.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.
Additional information
Features
110-compatible
Fitted with:
Wall trough
Spirit level for leveling
Device holder
3D adjustment element for mounting designed to adjust the mounting depth by up to 18 mm
Cable retainer
Microperforated mounting plate
Nail lugs
Installation instructions
Device support rails
2x single-way socket outlet
Door/Frame
Spirit level for leveling
Device holder
3D adjustment element for mounting designed to adjust the mounting depth by up to 18 mm
Cable retainer
Microperforated mounting plate
Nail lugs
Installation instructions
Device support rails
2x single-way socket outlet
Door/Frame
Functions
Basic device
Protection class
II (totally insulated)
Special features
IP30Protection Class IIPlastic enclosure with sheet steel door, white (RAL 9016)Note: To obtain protection class II, all devices installed on the mounting plate must be of the fully insulated type.
Technical data ETIM 9.0
Data and telecommunication (EG000037) / Distributor for telecommunication (EC000374)
Electric engineering, automation, process control engineering / Electrical installation, device / Connection devices / Distributor for telecommunication (ecl@ss13-27-14-44-26 [AEI678011])
Model
Distributor enclosure
Mounting method
Flush-mounted
With connecting lugs
No
Max. number of dual cores
12
Mounting dimension (standardised)
Other
110-compatible
Yes
LSA
No
SID
No
Material
Steel plate/plastic
Degree of protection (IP)
IP30
Degree of protection (NEMA)
Other
Colour
White
Height
715 mm
Width
360 mm
Depth
100 mm
Number of mountable connection strips
12
DIN-compatible
Yes
Compatible with Grade2TV according to XP-C 90-483
No
Compatible with Grade3TV according to XP-C 90-483
No
Datasheet - PDF
