C22-DR-W-K10-P1 185686 Y7-185686 EATON ELECTRIC Push button flush compact, 22 mm Interlocking White 1 NO cab..
C22-DR-W-K10-P1
185686
Y7-185686
EATON-MOELLER

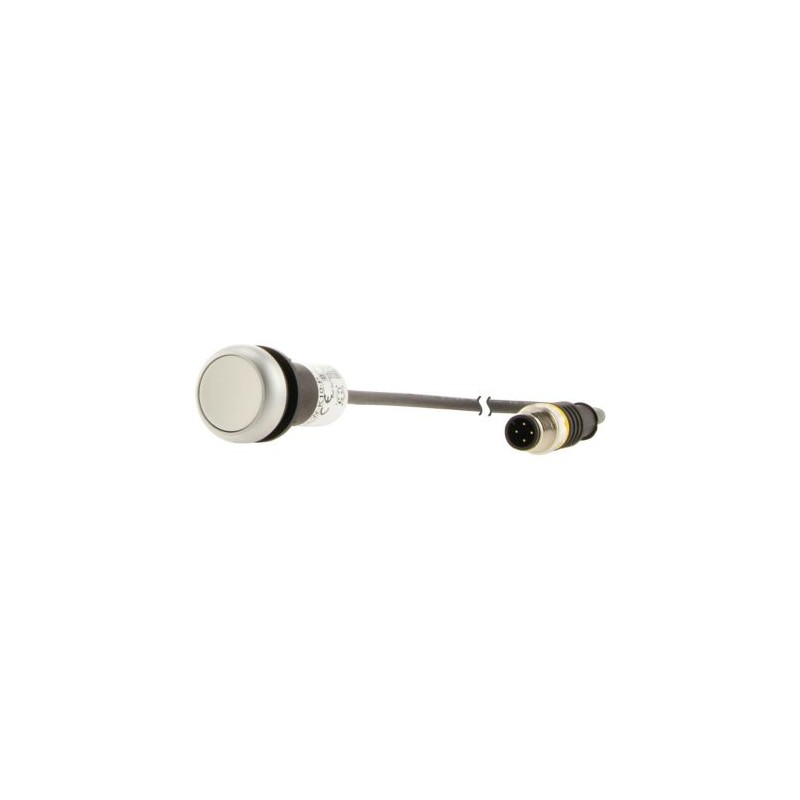

Push button flush compact, 22 mm; Interlocking; White; 1 NO; cable 0.2 m and connector M12A
C22-DR-W-K10-P1
Eaton Moeller® series C22 Pushbutton, classic, flat, maintained, 1 N/O, white, cable (black) with m12a plug, 4 pole, 0.2 m
Pushbutton, RMQ compact solution, Complete unit, Design: Flat, maintained, Connection type: Cable (black) with M12A plug, 4 pole, Cable Length: 0.2 m, button plate: White, Button plate Blank, Name: None, Degree of Protection: IP66, IP67, IP69K (front), IP65 (on rear), Bezel: titanium, Connection to SmartWire-DT: no, N/O = Normally open: 1 N/O, Standards: IEC/EN 60947-5-1, VDE 0660
Low-voltage industrial components > Push button, complete
Auxiliary Control and Signalling Elements
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
VDE 0660
UL
CE
CSA
CSA Class No.: 321103
CSA File No.: 165628
UL 508
CSA-C22.2 No. 14-18 and No. 94.2-15
CE marking
UL Category Control No.: NKCR
UL File No.: E29184
Features & Functions
Flat
Classical
General
IP67/IP69K
2 Nm, Threaded ring
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Electrical rating
Actuator
Maintained
Contacts
| Feature Name | Feature Value |
|---|---|
| Number of command positions (EF001372) | 1 |
| Type of button (EF001546) | Flat |
| Colour button (EF000190) | White |
| Transparent (EF006243) | false |
| Construction type lens (EF006253) | Round |
| Hole diameter (EF000079) | 22.5 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Suitable for lighting (EF001142) | false |
| Switching function latching (EF007447) | true |
| Spring-return (EF001407) | false |
| Supply voltage lamp (EF006522) | 0 V |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Type of electric connection (EF003961) | Other |
| With front ring (EF006014) | true |
| Material front ring (EF005972) | Plastic |
| Colour front ring (EF002429) | Titanium |
| Degree of protection (IP) (EF005474) | IP67/IP69K |
| Degree of protection (NEMA) (EF011959) | 12 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON COMMAND INDICATION EN.pdf | 24 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| C22-DR-W-K10-P1 Y7-185686 185686 ES_181628.pdf | 2 Mbytes |
|
