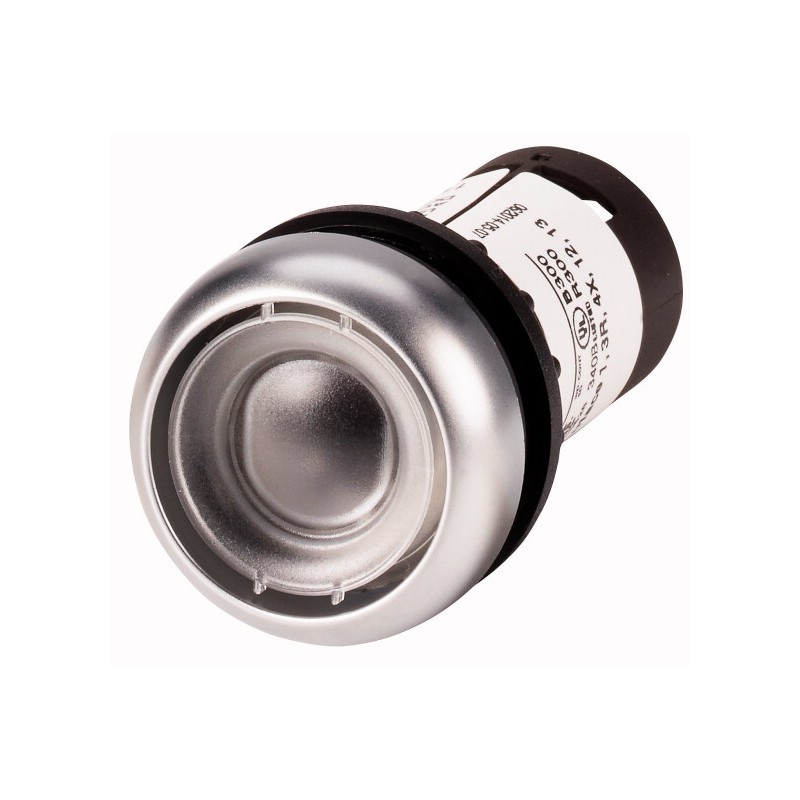

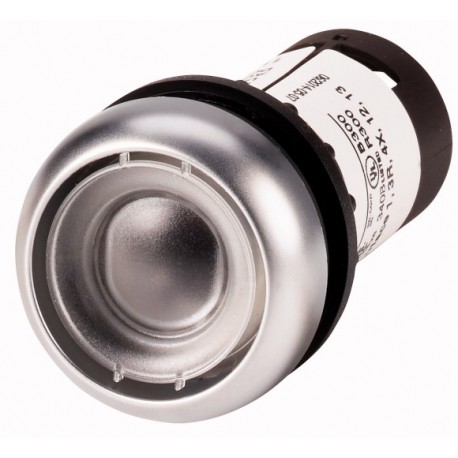

C22-D-X-K01 132465 EATON ELECTRIC C22-D-X-K01 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

C22-D-X-K01 132465 EATON ELECTRIC C22-D-X-K01

C22-D-X-K01

132465

EATON-MOELLER

C22-D-X-K01

Pushbutton, Flat, momentary, 1 NC, Screw connection, Without button plate, Bezel: titanium

Pushbutton, RMQ Compact, Complete unit, Design: Flat, momentary, Connection type: Screw connection, button plate: Without button plate, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.65, Maximum travel: mm 5.7, Minimum force for positive opening: N 15, Positive opening (ZW): yes, Standards: IEC/EN 60947-5-1, VDE 0660

More details


Low-voltage industrial components > Push button, complete

Auxiliary Control and Signalling Elements

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Pushbutton, Flat, momentary, 1 NC, Screw connection, Without button plate, Bezel: titanium
Pushbutton, RMQ Compact, Complete unit, Design: Flat, momentary, Connection type: Screw connection, button plate: Without button plate, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.65, Maximum travel: mm 5.7, Minimum force for positive opening: N 15, Positive opening (ZW): yes, Standards: IEC/EN 60947-5-1, VDE 0660

Delivery program

Product range
RMQ Compact
Basic function
Pushbutton actuators
Single unit/Complete unit
Complete unit
Design
Flat
momentary
Connection type
Screw connection
Button plate
button plate
Without button plate
Degree of Protection
IP66, IP67, IP69
Front ring
Bezel: titanium
Connection to SmartWire-DT
no
Contacts
N/C = Normally closed
1 NC
Notes
= safety function, by positive opening to IEC/EN 60947-5-1
Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1
[mm]
4.65
Maximum travel [mm]
5.7
Minimum force for positive opening [ N]
15
Contact sequence
1160SWI-54
Contact travel■ = Contact closed□ = Contact open
Contact diagram
1160DIA-14
Positive opening (ZW)
yes

Technical data

General
Standards
IEC/EN 60947-5-1
VDE 0660
Lifespan, mechanical [Operations]
> 5 x 106
Operating frequency [Operations/h]
≦ 3600
Actuating force
≦ 5 n
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Degree of Protection
IP66, IP67, IP69
Ambient temperatureOpen
-25 - +70 °C
Ambient temperatureStorage
- -30 - + 80 °C
Mounting position
As required
Terminal capacitiesSolid
2 x 0.5 - 1.5_x mm2
Terminal capacitiesFlexible with ferrule
2 x 0.5 - 1.5_x mm2
Tightening torque for terminal screw
0.8 Nm
Contacts
Rated impulse withstand voltage [Uimp]
4000 V AC
Rated insulation voltage [Ui]
250 V
Rated conditional short-circuit current [Iq]
1 kA
Overvoltage category/pollution degree
III/3
Max. short-circuit protective deviceFuse [gG/gL]
10 A

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Push button, complete (EC001028)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Push-button actuator, complete unit ([email protected] [AKF046014])
Number of command positions
1
Type of button
Flat
Colour button
Without button plate
Construction type lens
Round
Hole diameter
22.5 mm
Width opening
0 mm
Height opening
0 mm
Suitable for illumination
No
Switching function latching
No
Spring-return
Yes
Supply voltage lamp
0 V
Number of contacts as normally open contact
0
Number of contacts as normally closed contact
1
Number of contacts as change-over contact
0
Type of electric connection
Screw connection
With front ring
Yes
Material front ring
Plastic
Colour front ring
Other
Degree of protection (IP)
Other
Degree of protection (NEMA)

Approvals

Product Standards
IEC/EN 60947-5-1; UL 508; CAN/CSA-C22.2 No. 14-05 und 94-M91; CE marking
UL File No.
E29184
UL Category Control No.
NKCR
CSA File No.
165628
CSA Class No.
321103
North America Certification
UL listed, CSA certified
Degree of Protection
1,3R,4X,12,13

Dimensions

1160DIM-28

ETIM for 132465 Low-voltage industrial controls and switchgear (EC001028)
Feature Name Feature Value
Number of command positions (EF001372) 1
Type of button (EF001546) Flat
Colour button (EF000190) Without button plate
Transparent (EF006243) No
Construction type lens (EF006253) Round
Hole diameter (EF000079) 22.5 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Suitable for lighting (EF001142) No
Switching function latching (EF007447) No
Spring-return (EF001407) Yes
Supply voltage lamp (EF006522) 0 V
Number of contacts as normally open contact (EF008256) 0
Number of contacts as normally closed contact (EF008255) 1
Number of contacts as change-over contact (EF008257) 0
Type of electric connection (EF003961) Screw connection
With front ring (EF006014) Yes
Material front ring (EF005972) Plastic
Colour front ring (EF002429) Titanium
Degree of protection (IP) (EF005474) IP67/IP69K
Degree of protection (NEMA) (EF011959) 4X, 13

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON COMMAND INDICATION EN.pdf 24 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
C22-D-X-K01 C22-D-X-K01 132465 EN_132465.pdf 238 Kbytes C22-D-X-K01 C22-D-X-K01 132465 EN_132465.pdf
