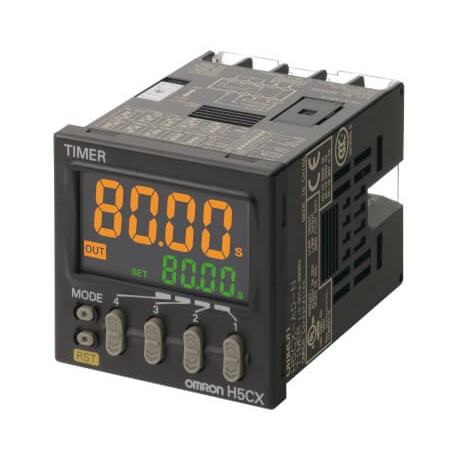

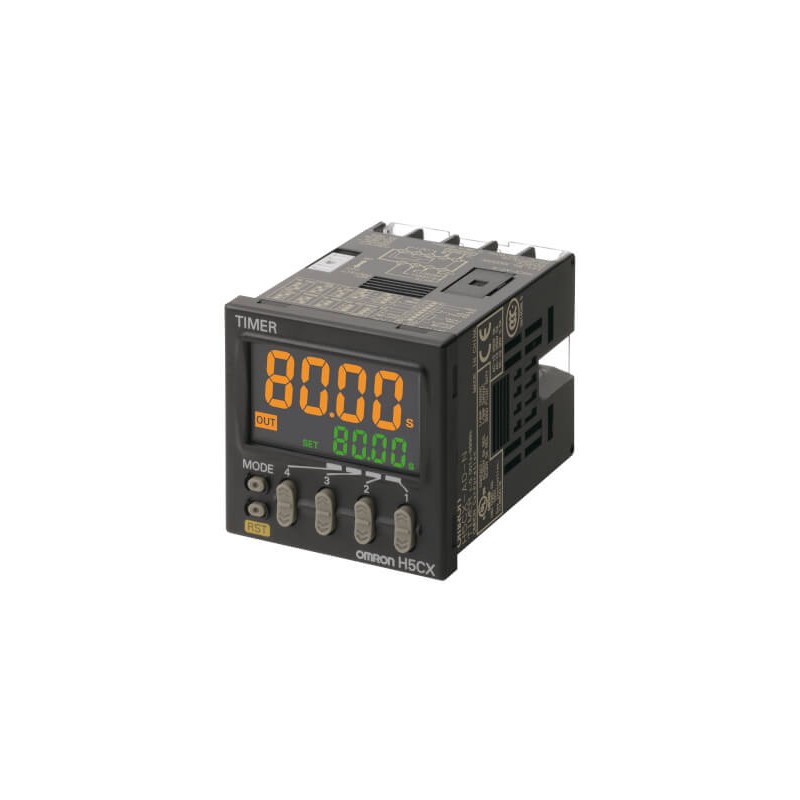

H5CX-BWSD-N H5CX6030G H5CXBWSDNOMI OMRON Output transistor 2-Stage 6 dig. 12-24vdc/24vac Screw
H5CX-BWSD-N
H5CX6030G
H5CXBWSDNOMI
OMRON
Output transistor 2-Stage 6 dig. 12-24vdc/24vac Screw
Transistor Output 2 Stages 6 Dig. 12-24Vdc/24Vac Screw
Timer, DIN48x48mm, IP66, 6 preset & 6 actual time digits, multi range 0.01s to 99999.9h (4 ranges), 2-function, NPN/PNP/No voltage input selectable, 1
Relays > Timer relay
Timers > H5CX
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Related products
▲Best sellers
▲More info
▲The most complete digital standard timer on the market
H5CX offers you the most complete series of products on the market today. Based on extensive customer research, these new timers have been designed with added-value features that users both need and appreciate.
- H 48 x W 48 x D 59 to 78mm
- Three-colour display value, red, green or orange
- Models with Instantaneous Contact Outputs
- 0.001 s to 9999 h, 10 ranges
- Input NPN, PNP and contact
Sealed timers
The front of the H5CX is NEMA4X (IP66 equivalent) so it is sealed against the ingress dust and water. This means that they can be used in many applications that other timers can not. Easily adjustable through the front keys or for more security the keys can be disabled to prevent malicious or accidental tampering. Simple settings can be made either via dip switches or a simple to follow menu structure to suite the installer.
Harsh environment
Control products can be subjected to harsh environments where they can be splashed during the process or covered in dust or get warm through their location. The E5CN, E5CSV, H7CX, H5CX and K3HB all feature a NEMA4X (IP66 equivalent) front panels so are suitable for the use in these applications, also the low profile fascia means that they are less prominent in the front of the panel and so less likely to become dirty.
Ordering information
| A:Signal ON-delay | ||||||
Signal, Reset, Gate (NPN/PNP inputs)1 | ||||||
Signal, Reset (NPN inputs)1 | ||||||
| A-2:Power ON-delay 1 | ||||||
Accessories
Specifications
EEPROM (overwrites: 100,000 times min.) that can store data for 10 years min. | |||
Operating: −10 to 55°C (no icing or condensation), side-by-side mounting: −10 to 50°C | |||
| Feature Name | Feature Value |
|---|---|
| Relay technology category according to IEC 61810-7 (EF016748) | RT I |
| Material of contact insert (EF008521) | Other |
| Degree of protection (IP) (EF005474) | IP66 |
| Voltage type (operating voltage) (EF005294) | DC |
| Material of contact surface (EF004020) | Other |
| Voltage type for actuating (EF008242) | DC |
| Material contact (EF007544) | Other |
| Suitable as remote control (EF003362) | No |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| Complete with socket (EF003359) | Yes |
| Clock function, starting with pause, variable (EF003365) | No |
| With semiconductor output (EF003373) | Yes |
| Suitable for front mounting (EF020288) | Yes |
| Clock function, starting with pulse, variable (EF003366) | Yes |
| Remote operation possible (EF003361) | No |
| Width (EF000008) | 48 mm |
| Height (EF000040) | 48 mm |
| Nominal current (EF000001) | 0.1 A |
| Operating voltage DC (EF008208) | 1.5 V |
| Rated control supply voltage DC (EF003980) | 12 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 28 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| H5CX-BWSD-N H5CXBWSDNOMI H5CX6030G colour_change_displays_leaflet_en.pdf | 272 Kbytes |
|
| H5CX-BWSD-N H5CXBWSDNOMI H5CX6030G h5cx_h7cx_brochure_en.pdf | 395 Kbytes |
|
