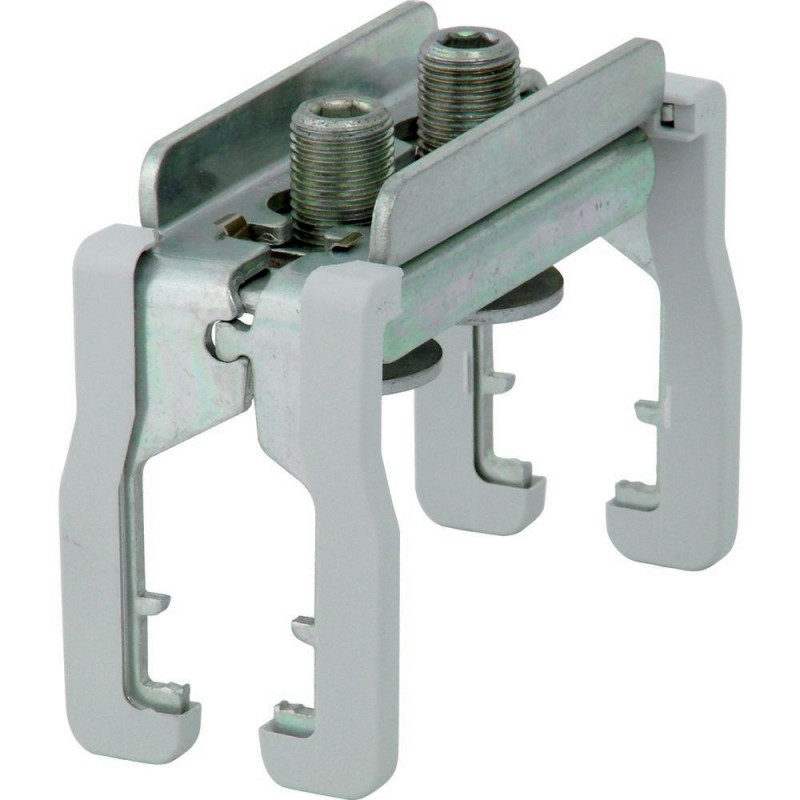

AKS2000 138376 EATON ELECTRIC Clamp terminal 105x28 mm, for 30x10
AKS2000
138376
EATON-MOELLER
3
Clamp terminal 105x28 mm, for 30x10
Clamp terminal, for SASY60i and SASY185i, termination space=105x28mm, for busbars 30x10mm, double t and triple t profile-profile-, width=122mm, Ie=1600A, terminal capacities=2x (100x10)mm
Low-voltage industrial components > Busbar terminal
Connection Accessories for Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Delivery program
185 mm system
A contact block is used to connect the conductor to the busbar
▃ (2x) 100 x 10 mm
Triple T profile
⊙ round conductor, solid
Flexible, round conductor with correctly crimped ferrule
Round conductor, stranded
Section conductor, solid
Sector conductor, stranded
▤ CU band
▃ CU busbar
Dimensions
| Feature Name | Feature Value |
|---|---|
| Busbar thickness (EF007220) | 10 mm |
| Busbar width (EF007219) | 30 mm |
| Suitable for (EF000073) | Flat rail |
| Width clamp (EF007092) | 122 mm |
| Max. conductor cross section (EF004969) | 2000 mm² |
| Suitable for round conductor connection (EF007258) | Yes |
| Suitable for sector conductor connection (EF007260) | Yes |
| Suitable for strip conductor connection (EF007242) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| AKS2000 138376 EN_138376.pdf | 194 Kbytes |
|
