> >>AKP1200 138366 ELECTRIC Terminal for busbar 64x42 mm
Previous Product Next Product

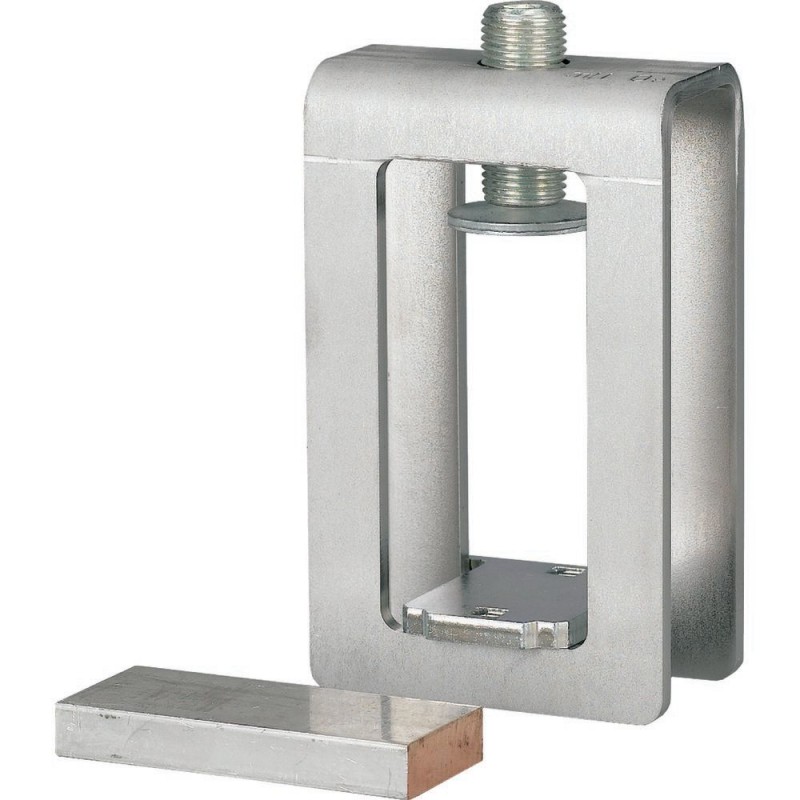

AKP1200 138366 EATON ELECTRIC Terminal for busbar 64x42 mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

AKP1200 138366 EATON ELECTRIC Terminal for busbar 64x42 mm

AKP1200

138366

EATON-MOELLER

3

Terminal for busbar 64x42 mm

Profile terminal 64x42 mm

More details


Low-voltage industrial components > Busbar terminal

Connection Accessories for Enclosures

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Profile terminal 64x42 mm
Profile terminal, termination to busbars without drilling, put a spacer between the laminated copper busbars when connecting in parallel, 1200mm², terminal area, 64x20-42, width 94mm, Ie=2000 A, can be used for double T profile, 60 mm system, 185 mm system

Delivery program

Product range
60 mm system
185 mm system
Subrange
Profile terminals
Description
Termination to busbars without drilling
Put a spacer between the laminated copper busbars when connecting in parallel
Width
94 mm
Rated operational current [Ie]
2000 A
conductor
1200 mm², terminal area
64 x 20 - 42 mm
▃
▤
Cu factor
0,26 kg
For use with
Double T profile
Notes

⊙ round conductor, solid

Flexible, round conductor with correctly crimped ferrule

Round conductor, stranded

Section conductor, solid

Sector conductor, stranded

▤ CU band

▃ CU busbar

Dimensions

4300DIM-332

Datasheet - PDF

▲
Title: Size: Type:
AKP1200 138366 EN_138366.pdf 187 Kbytes AKP1200 138366 EN_138366.pdf
