Product name

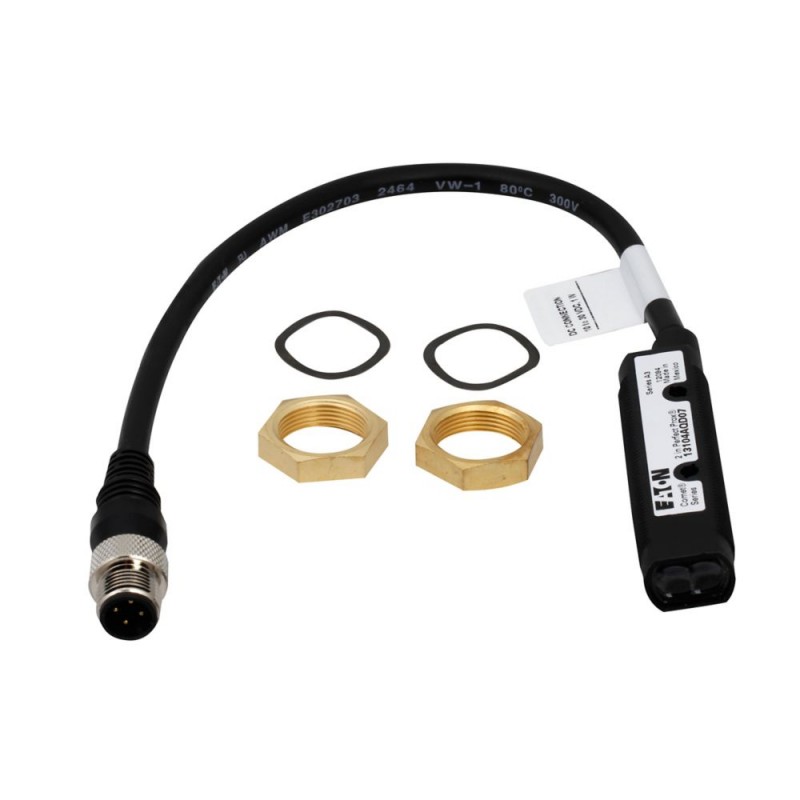

Eaton Moeller® series E58 Diffuse reflective sensor
Product Length/Depth
127 millimetre
Product height
50.8 millimetre
Product width
152.4 millimetre
Product weight
0.094 kilogram
Certifications
cUL Recognized
UL Recognized
CE
UL Category Control No.: NRKH, NRKH7
UL File No.: E117028
CSA Class No.: 3211-07
UL
IEC/EN 60947-5-2
UL 508
CSA
CSA File No.: 50513
CSA-C22.2 No. 14
Product Type
Diffuse reflective sensor
Product Specification Details
Adjustment range - max
0 mm
Adjustment range - min
0 mm
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-40 °C
Cable sheath material
Other
Connection type
4-wire
Plug-in connection M12 x 1
Contact configuration
NPN and PNP open collector
Contact Rating
100 mA PNP, 250 mA NPN at 10-30 Vdc
Degree of protection
NEMA 6
IP67
Electric connection type
Connector M12
Enclosure material
Polyurethane foam (RIM)
Plastic
Enclosure type
Cylinder, screw-thread
Environmental rating
NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13, IP69K
Explosion safety category for dust
None
Explosion safety category for gas
None
Fitted with:
Background suppression (Perfect Prox)
Functions
Protection against polarity reversal
Short-circuit protection
Reflected-light beam
Laser protection class
None
LED indicator
Output ON
Status indication of Switching state: Red LED
Light type
Polarity free red light
Load current
Max. 100 mA (Ie, PNP)
Max. 250 mA (Ie, NPN, 120 > 50°C)
Maximum DC current
100 mA PNP, 250 mA NPN
Number of contact energized outputs with signalling function
0
Number of outputs (protected contact energized)
0
Number of outputs (protected semiconductor)
0
Number of outputs (semiconductor with signaling function)
2
Operating distance - max
0 mm
Operating distance - min
0 mm
Operating mode
Switching principle: Adjustable bright/dark switching
Operating temperature - max
158 °F
Operating temperature - min
-40 °F
Operation agent-safety class
Safety class 2
Operational current (Ib) in the switched state at 24 V DC
30 A
Optical surface material
Plastic
Output current (mA) - max
250 mA
Output current at protected output - max
0 mA
Product category
Comet Series
Protection
Auto reset short circuit
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at DC - max
30 V
Rated control supply voltage (Us) at DC - min
10 V
Rated switching distance (Sn)
50 mm
Reflector distance - min
0 mm
Safety type (IEC 61496-1)
1
Sensing mode
Light-/dark switching
Sensor material
Insulated material
Sensor type
Back ground suppression
Shock resistance
100 g, Mechanical, Shock duration 3 ms
Switch function type
Programmable/configurable
Switching distance - max
50 mm
Switching frequency
500 Hz
Switching output type
PNP/NPN
Switching voltage of OSSD at state "high"
30 V
Transmission range of the safety field
0 m
Triangulation
Background fade-out
Wavelength of the sensor
0 nm
