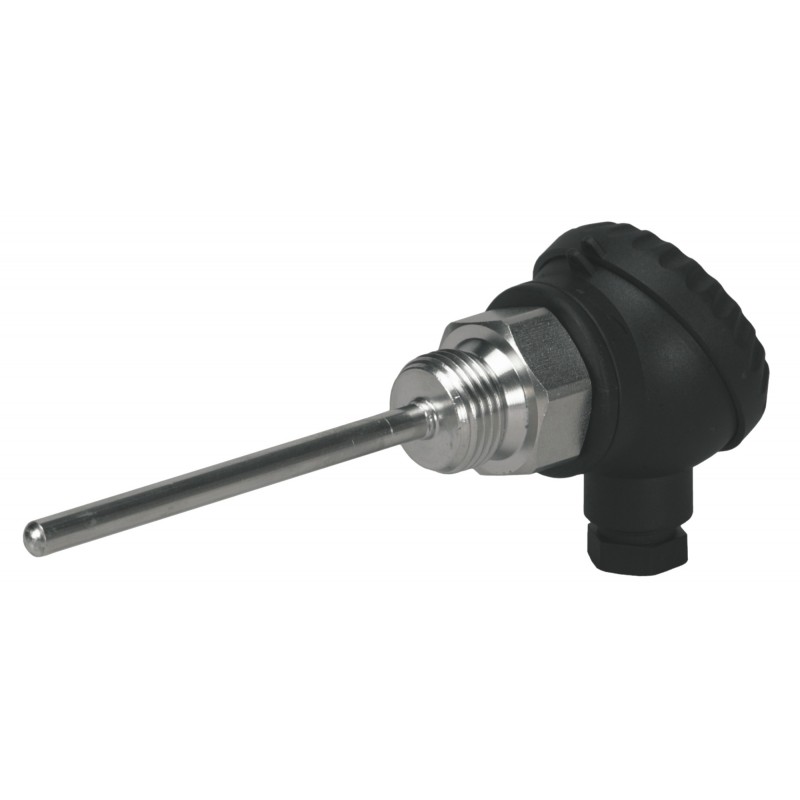

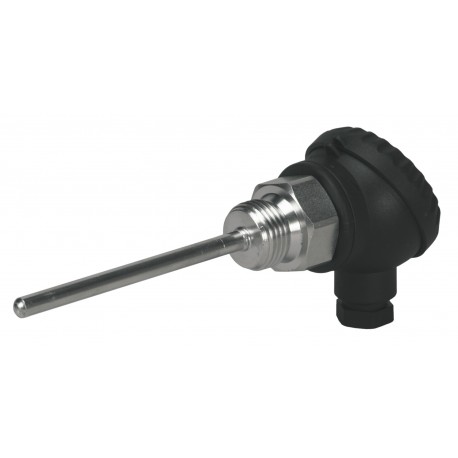

087B1182 DANFOSS REFRIGERATION ESMU-100, Pt 1000, Stainless steel
087B1182
DANFOSS REFRIGERATION
ESMU-100, Pt 1000, Stainless steel
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲ESMU-100, Pt 1000 immersion sensor, 100 mm, stainless steel
Product details
| Gross weight | 0.132 Kilogram |
| Net weight | 0.132 Kilogram |
| Volume | 0.304 Liter |
| EAN | 5702421064528 |
| Type | ESMU-100 |
| Product group | Sensors |
| Gross weight | 0.132 Kilogram |
| Net weight | 0.132 Kilogram |
| Volume | 0.304 Liter |
| EAN | 5702421064528 |
| Type | ESMU-100 |
| Product group | Sensors |
| Body material | Stainless steel Aisi 316 |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Description | ESMU-100, Pt 1000 immersion sensor, 100 mm, stainless steel |
| Electrical connections terminals | Terminal plug for two wires in head, PG9 cable entry, supplied with product |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Grade of enclosure | IP54 |
| Label product | Yes |
| Material | Stainless steel |
| Media temperature [°C] [Max] | 140 °C |
| Media temperature [°C] [Min] | 0 °C |
| Mounting version | G1/2A and washer (supplied with the product) |
| Pressure nominal [bar] | 25 bar |
| REACH Candidate List substances | No |
| Temperature sensor diameter [mm] | 6 mm |
| Temperature sensor length [mm] | 100 mm |
| Temperature sensors type | Pt 1000 |
| Time constant | 2 s (water), 7 s (air) |
| Body material | Stainless steel Aisi 316 |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Description | ESMU-100, Pt 1000 immersion sensor, 100 mm, stainless steel |
| Electrical connections terminals | Terminal plug for two wires in head, PG9 cable entry, supplied with product |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Grade of enclosure | IP54 |
| Label product | Yes |
| Material | Stainless steel |
| Media temperature [°C] [Max] | 140 °C |
| Media temperature [°C] [Min] | 0 °C |
| Mounting version | G1/2A and washer (supplied with the product) |
| Pressure nominal [bar] | 25 bar |
| REACH Candidate List substances | No |
| Temperature sensor diameter [mm] | 6 mm |
| Temperature sensor length [mm] | 100 mm |
| Temperature sensors type | Pt 1000 |
| Time constant | 2 s (water), 7 s (air) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 087B1182 087B1182 EN_084N1012.pdf | 434 Kbytes |
|
