DANFOSS REFRIGERATION061B124266 DANFOSS REFRIGERATION MBC 5180 Diff. Pressure Switch M/10

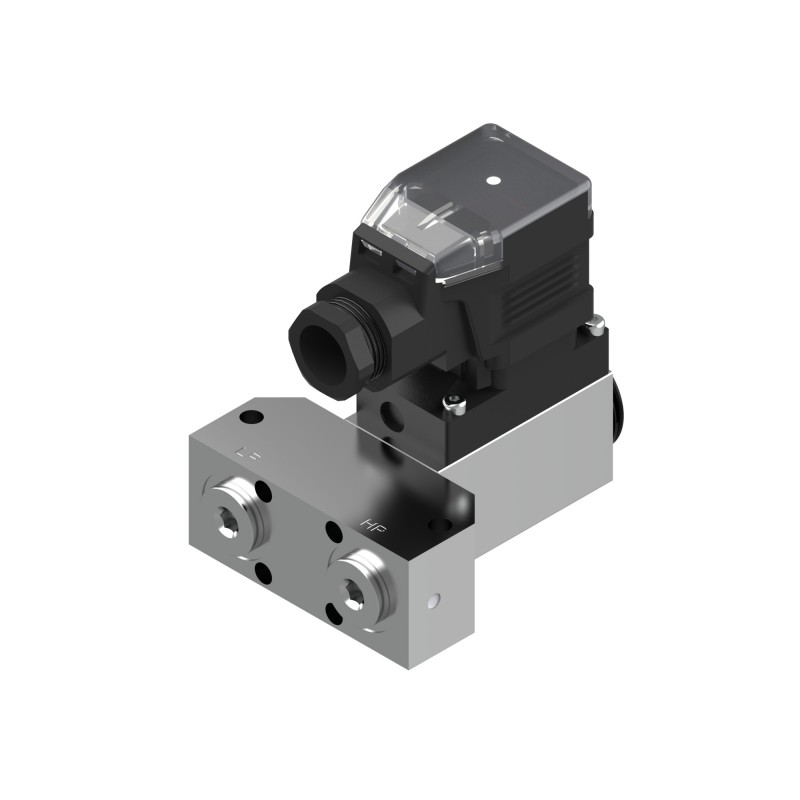

DANFOSS REFRIGERATION 061B124266 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

061B124266 DANFOSS REFRIGERATION MBC 5180 Diff. Pressure Switch M/10

Code: 061B124266

Manufacturer: DANFOSS REFRIGERATION

Description:

MBC 5180 Diff. Pressure Switch M/10
Differential pressure switch, MBC 5180

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 524,34 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Reset function: Auto, Pressure connection type: G, Pressure connection type: G, Enclosure rating IP: IP65, Max. Working Pressure [bar]: 45

Product details

Gross weight0.419 Kilogram
Net weight0.3 Kilogram
Volume0.989 Liter
EAN5702423260669
TypeMBC 5180
Product groupSwitches and thermostats
Product Name DescriptionDifferential pressure switch
Gross weight0.419 Kilogram
Net weight0.3 Kilogram
Volume0.989 Liter
EAN5702423260669
TypeMBC 5180
Product groupSwitches and thermostats
Product Name DescriptionDifferential pressure switch

Alarm SignalRising
Ambient temperature range [°C] [max]85 °C
Ambient temperature range [°C] [min]-10 °C
Ambient temperature range [°F] [max]185 °F
Ambient temperature range [°F] [min]14 °F
ApprovalABS
CCC
CCS
CE
EAC
GL
KRS
LLC CDC EURO-TYSK
LR
LVD
NKK
RINA
RoHS
RoHS China
TYSK
Burst pressure [bar]90 bar
CE evaluatedYes
China RoHS complianceYes
Contact functionSPDT
Contact ratingAC15=0.5 A, 250 V
DC13=12 W, 125 V
Contains batteriesNo
Diff.press.setting range [bar] [max]5 bar
Diff.press.setting range [bar] [min]0.3 bar
Diff.press.setting range [MPa] [max]0.5 MPa
Diff.press.setting range [MPa] [min]0.03 MPa
Diff.press.setting range [psi] [max]72.5 psi
Diff.press.setting range [psi] [min]4.3 psi
Electrical conn. Male/FemaleFemale
Electrical connectionDIN-plug
Electrical connection sizeM20
Electrical connection standardEN 175301-803-A
Electrical spec. standardEN 60947-5
Enclosure rating IPIP65
EU RoHS complianceOut of scope
Factory setting [bar]0.75 bar
Factory setting [MPa]0.075 MPa
Max. test pressure [bar] Pe68 bar
Max. test pressure [psig]986 psig
Max. Working Pressure [bar]45 bar
Max. Working Pressure [psig]653 psig
Operat. range LP side [bar] Pe [max]30 bar
Operat. range LP side [bar] Pe [min]0 bar
Operat. range LP side [psig]Pe [max]435 psig
Operat. range LP side [psig]Pe [min]0 psig
Packing formatMulti pack
Pressure connection notesWith flange
Pressure connection size1/4
Pressure connection standardISO 228-1
Pressure connection typeG
Pressure Male/FemaleFemale
Product accessoriesGeneric accessories
Product descriptionDiff. Pressure Switch
Quantity per packing format10 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Relay release time [s]0 s
Reset functionAuto
SCIP dossier no.69958bd3-3b22-42dc-aa8a-888e92c5e7e8
SCIP dossier product nameMBC 5100 5000 Pressure Switch
ServiceableNo
Specification key2031-2DB04
Alarm SignalRising
Ambient temperature range [°C] [max]85 °C
Ambient temperature range [°C] [min]-10 °C
Ambient temperature range [°F] [max]185 °F
Ambient temperature range [°F] [min]14 °F
ApprovalABS
CCC
CCS
CE
EAC
GL
KRS
LLC CDC EURO-TYSK
LR
LVD
NKK
RINA
RoHS
RoHS China
TYSK
Burst pressure [bar]90 bar
CE evaluatedYes
China RoHS complianceYes
Contact functionSPDT
Contact ratingAC15=0.5 A, 250 V
DC13=12 W, 125 V
Contains batteriesNo
Diff.press.setting range [bar] [max]5 bar
Diff.press.setting range [bar] [min]0.3 bar
Diff.press.setting range [MPa] [max]0.5 MPa
Diff.press.setting range [MPa] [min]0.03 MPa
Diff.press.setting range [psi] [max]72.5 psi
Diff.press.setting range [psi] [min]4.3 psi
Electrical conn. Male/FemaleFemale
Electrical connectionDIN-plug
Electrical connection sizeM20
Electrical connection standardEN 175301-803-A
Electrical spec. standardEN 60947-5
Enclosure rating IPIP65
EU RoHS complianceOut of scope
Factory setting [bar]0.75 bar
Factory setting [MPa]0.075 MPa
Max. test pressure [bar] Pe68 bar
Max. test pressure [psig]986 psig
Max. Working Pressure [bar]45 bar
Max. Working Pressure [psig]653 psig
Operat. range LP side [bar] Pe [max]30 bar
Operat. range LP side [bar] Pe [min]0 bar
Operat. range LP side [psig]Pe [max]435 psig
Operat. range LP side [psig]Pe [min]0 psig
Packing formatMulti pack
Pressure connection notesWith flange
Pressure connection size1/4
Pressure connection standardISO 228-1
Pressure connection typeG
Pressure Male/FemaleFemale
Product accessoriesGeneric accessories
Product descriptionDiff. Pressure Switch
Quantity per packing format10 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Relay release time [s]0 s
Reset functionAuto
SCIP dossier no.69958bd3-3b22-42dc-aa8a-888e92c5e7e8
SCIP dossier product nameMBC 5100 5000 Pressure Switch
ServiceableNo
Specification key2031-2DB04

DATASHEET - PDF

Title
Size
Type
061B124266 ES_061B124266.pdf
952 Kbytes
PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN
11 Mbytes
