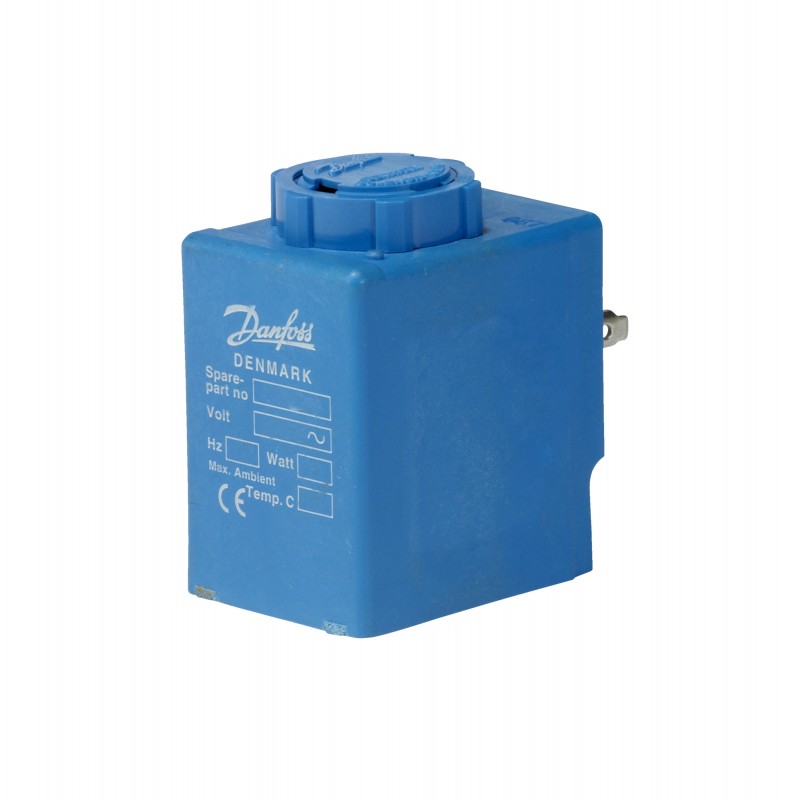

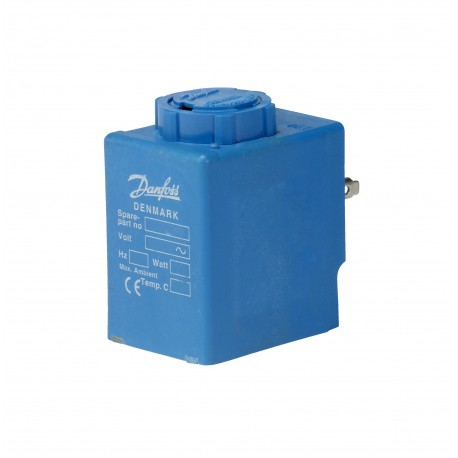

042N7518 DANFOSS REFRIGERATION Solenoid coil, BC230C, DIN shovel, 220 V 230 V
042N7518
DANFOSS REFRIGERATION
Solenoid coil, BC230C, DIN shovel, 220 V - 230 V
Solenoid coil, BC230C, DIN Spade, Supply voltage [V] AC: 220 - 230, Multi pack
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Electrical connection: DIN Spade, Supply voltage [V] AC: 220 - 230, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP00
Product details
| Gross weight | 0.176 Kilogram |
| Net weight | 0.163 Kilogram |
| Volume | 0.12 Liter |
| EAN | 5702422030782 |
| Type | BC230C |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Gross weight | 0.176 Kilogram |
| Net weight | 0.163 Kilogram |
| Volume | 0.12 Liter |
| EAN | 5702422030782 |
| Type | BC230C |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [max] | 40 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 104 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| China RoHS compliance | Out of scope |
| China RoHS exemption clause | No |
| Coil connection | DIN Spade |
| Colour | Blue |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | DIN Spade |
| Electrical connection size | 6.3 mm x 0.8 mm |
| Electrical connection standard | EN175301-803 |
| Electrical connector | 3 x spades |
| Enclosure rating IP | IP00 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frequency [Hz] | 50/60 Hz |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Power consumption 50Hz [VA] | 25 VA |
| Power consumption 60Hz [VA] | 19 VA |
| Power consumption [W] 50Hz | 12 W |
| Power consumption [W] 60Hz | 9.5 W |
| Product accessories | Solenoid coil accessories |
| Quantity per packing format | 45 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [max] | 97 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Rel. Humidity conditions | Non-condensation |
| SCIP dossier product name | 042N7518 |
| Serviceable | No |
| Supply voltage 50Hz Max [V] | 230 V |
| Supply voltage 50Hz Min [V] | 220 V |
| Supply voltage 60Hz Max [V] | 230 V |
| Supply voltage 60Hz Min [V] | 220 V |
| Supply voltage [V] AC [max] | 230 V |
| Supply voltage [V] AC [min] | 220 V |
| Type designation | BC230C |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [max] | 40 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 104 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| China RoHS compliance | Out of scope |
| China RoHS exemption clause | No |
| Coil connection | DIN Spade |
| Colour | Blue |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | DIN Spade |
| Electrical connection size | 6.3 mm x 0.8 mm |
| Electrical connection standard | EN175301-803 |
| Electrical connector | 3 x spades |
| Enclosure rating IP | IP00 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frequency [Hz] | 50/60 Hz |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Power consumption 50Hz [VA] | 25 VA |
| Power consumption 60Hz [VA] | 19 VA |
| Power consumption [W] 50Hz | 12 W |
| Power consumption [W] 60Hz | 9.5 W |
| Product accessories | Solenoid coil accessories |
| Quantity per packing format | 45 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [max] | 97 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Rel. Humidity conditions | Non-condensation |
| SCIP dossier product name | 042N7518 |
| Serviceable | No |
| Supply voltage 50Hz Max [V] | 230 V |
| Supply voltage 50Hz Min [V] | 220 V |
| Supply voltage 60Hz Max [V] | 230 V |
| Supply voltage 60Hz Min [V] | 220 V |
| Supply voltage [V] AC [max] | 230 V |
| Supply voltage [V] AC [min] | 220 V |
| Type designation | BC230C |
