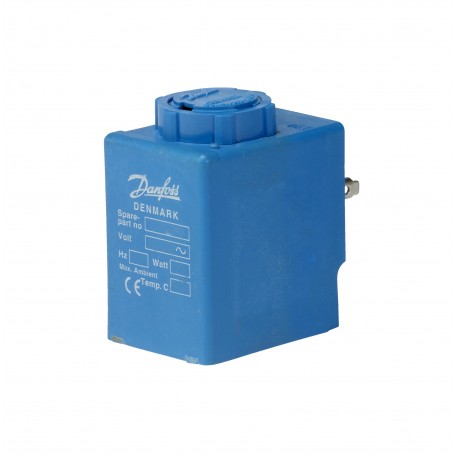

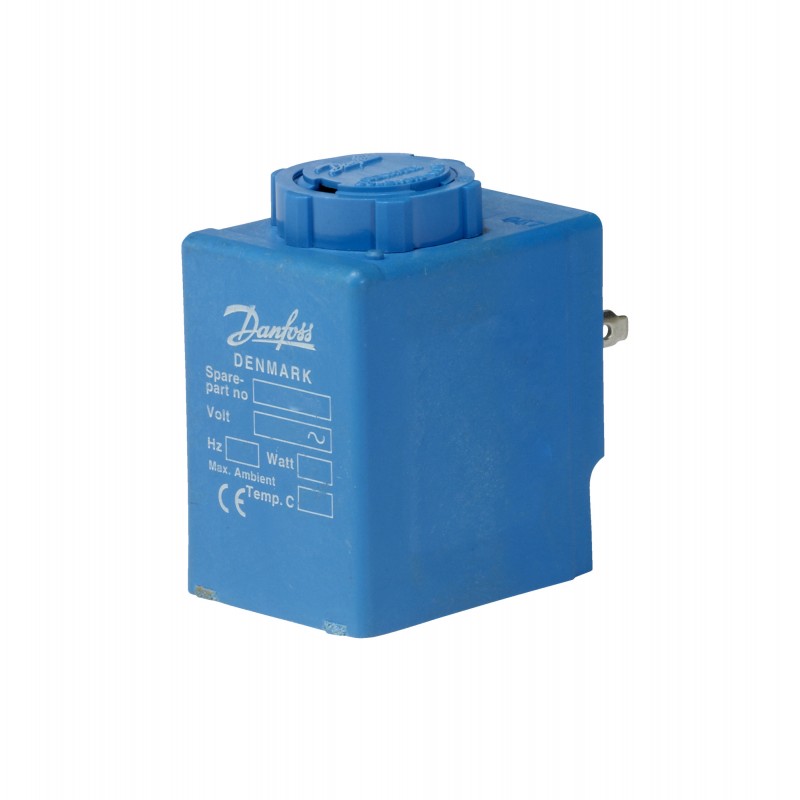

042N7518 DANFOSS REFRIGERATION Катушка соленоида, BC230C, лопата DIN, 220 В 230 В
042N7518
DANFOSS REFRIGERATION
Катушка соленоида, BC230C, лопата DIN, 220 В - 230 В
Solenoid coil, BC230C, DIN Spade, 220 V - 230 V
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Electrical connection: DIN Spade, Supply voltage [V] AC: 220 - 230, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP00, Packing format: Multi pack
Product details
| Gross weight | 0.18 kg |
| Net weight | 0.16 kg |
| EAN | 5702422030782 |
| Gross weight | 0.18 kg |
| Net weight | 0.16 kg |
| EAN | 5702422030782 |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [Max] | 40 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 104 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Coil connection | DIN Spade |
| Colour | Blue |
| Electrical connection | DIN Spade |
| Electrical connection size | 6.3 mm x 0.8 mm |
| Electrical connection standard | EN175301-803 |
| Electrical connector | 3 x spades |
| Enclosure rating IP | IP00 |
| Frequency [Hz] | 50/60 Hz |
| Packing format | Multi pack |
| Power consumption 50Hz [VA] | 25 VA |
| Power consumption 60Hz [VA] | 19 VA |
| Power consumption [W] 50Hz | 12 W |
| Power consumption [W] 60Hz | 9.5 W |
| Product accessories | Solenoid coil accessories |
| Product group | Solenoid valves |
| Product name | Solenoid coil |
| Quantity per packing format | 45 pc |
| Rel. Humidity [% RH] [Max] | 97 % |
| Rel. Humidity [% RH] [Min] | 0 % |
| Rel. Humidity conditions | Non-condensation |
| Serviceable | No |
| Supply voltage 50Hz Max [V] | 230 V |
| Supply voltage 50Hz Min [V] | 220 V |
| Supply voltage 60Hz Max [V] | 230 V |
| Supply voltage 60Hz Min [V] | 220 V |
| Supply voltage [V] AC [Max] | 230 V |
| Supply voltage [V] AC [Min] | 220 V |
| Type | BC230C |
| Type designation | BC230C |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [Max] | 40 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 104 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Coil connection | DIN Spade |
| Colour | Blue |
| Electrical connection | DIN Spade |
| Electrical connection size | 6.3 mm x 0.8 mm |
| Electrical connection standard | EN175301-803 |
| Electrical connector | 3 x spades |
| Enclosure rating IP | IP00 |
| Frequency [Hz] | 50/60 Hz |
| Packing format | Multi pack |
| Power consumption 50Hz [VA] | 25 VA |
| Power consumption 60Hz [VA] | 19 VA |
| Power consumption [W] 50Hz | 12 W |
| Power consumption [W] 60Hz | 9.5 W |
| Product accessories | Solenoid coil accessories |
| Product group | Solenoid valves |
| Product name | Solenoid coil |
| Quantity per packing format | 45 pc |
| Rel. Humidity [% RH] [Max] | 97 % |
| Rel. Humidity [% RH] [Min] | 0 % |
| Rel. Humidity conditions | Non-condensation |
| Serviceable | No |
| Supply voltage 50Hz Max [V] | 230 V |
| Supply voltage 50Hz Min [V] | 220 V |
| Supply voltage 60Hz Max [V] | 230 V |
| Supply voltage 60Hz Min [V] | 220 V |
| Supply voltage [V] AC [Max] | 230 V |
| Supply voltage [V] AC [Min] | 220 V |
| Type | BC230C |
| Type designation | BC230C |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
