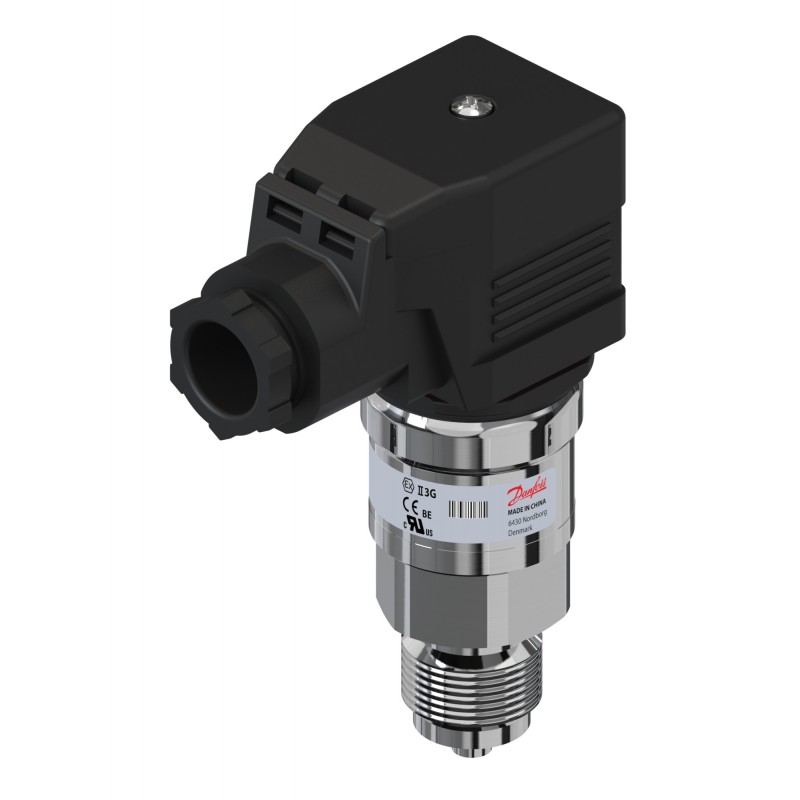

064G5234 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 9300
064G5234
DANFOSS INDUSTRIAL AUTOMATION
Pressure transmitter, MBS 9300
Pressure transmitter, MBS 9300, 0 mbar - 150 mbar, 0 psi - 2.18 psi
Pressure Transmitters - DANFOSS INDUSTRIAL AUTOMATION > MBS 5150, Block-type pressure transmitters with pulse snubber for marine applications - DANFOSS INDUSTRIAL AUTOMATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION
Best sellers
▲More info
▲Pressure reference: Gauge (relative), Output signal: Current, Electrical connection: Angular connector, Pressure connection type: G, Pressure connection size: 1/2, Specification key: MBS 9300-B411-H3GB08-1
Product details
| Gross weight | 0.229 Kilogram |
| Net weight | 0.21 Kilogram |
| Volume | 0.4 Liter |
| EAN | 5702428945998 |
| Type | MBS 9300 |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Gross weight | 0.229 Kilogram |
| Net weight | 0.21 Kilogram |
| Volume | 0.4 Liter |
| EAN | 5702428945998 |
| Type | MBS 9300 |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| + supply | Pin 1 |
| - common | Pin 2 |
| Acc. @ ref. Temp. ±FS typ. [%] | 0.5 % |
| Ambient temperature range [°C] [max] | 100 °C |
| Ambient temperature range [°C] [min] | -25 °C |
| Burst pressure [bar] | 50 bar |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [max] | 80 °C |
| Compensated temp. range [°C] [min] | 0 °C |
| Contains batteries | No |
| Durability P @ 10-90% FS | 10000000 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. Male/Female | Male |
| Electrical connection | Angular connector |
| Electrical connection size | M20 |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Hysteresis and repeat.[±FS%] | 0.1 % |
| In scope of WEEE | Yes |
| Intrinsically safe | No |
| Medium temperature range [°C] [max] | 125 °C |
| Medium temperature range [°C] [min] | -20 °C |
| Mount.pos. err. @ 180°[±FS%] | 0.35 % |
| Non-linearity BFSL [±FS%] | 0.2 % |
| Output signal | Current |
| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Overload pressure max. [bar] | 3.5 bar |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 27 mm |
| Pressure connection notes | A |
| Pressure connection size | 1/2 |
| Pressure connection standard | DIN 3852-E |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [mbar] [max] | 150 mbar |
| Pressure range [mbar] [min] | 0 mbar |
| Pressure range [psi] [max] | 2.18 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Gauge (relative) |
| Pulse-snubber | No |
| Quantity per packing format | 14 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Recommen. mounting torque [Nm] | 25 nm |
| Reference temperature [°C] | 25 °C |
| SCIP dossier no. | 16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d |
| SCIP dossier product name | AKS/MBS |
| Specification key | MBS 9300-B411-H3GB08-1 |
| Storage temperature range [°C] [max] | 125 °C |
| Storage temperature range [°C] [min] | -40 °C |
| Storage temperature range [°F] [max] | 257 °F |
| Storage temperature range [°F] [min] | -40 °F |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [min] | 9 V |
| TEB inside CTR ±FS [%] | 1.5 % |
| UL evaluated | Yes |
| + supply | Pin 1 |
| - common | Pin 2 |
| Acc. @ ref. Temp. ±FS typ. [%] | 0.5 % |
| Ambient temperature range [°C] [max] | 100 °C |
| Ambient temperature range [°C] [min] | -25 °C |
| Burst pressure [bar] | 50 bar |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [max] | 80 °C |
| Compensated temp. range [°C] [min] | 0 °C |
| Contains batteries | No |
| Durability P @ 10-90% FS | 10000000 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. Male/Female | Male |
| Electrical connection | Angular connector |
| Electrical connection size | M20 |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Hysteresis and repeat.[±FS%] | 0.1 % |
| In scope of WEEE | Yes |
| Intrinsically safe | No |
| Medium temperature range [°C] [max] | 125 °C |
| Medium temperature range [°C] [min] | -20 °C |
| Mount.pos. err. @ 180°[±FS%] | 0.35 % |
| Non-linearity BFSL [±FS%] | 0.2 % |
| Output signal | Current |
| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Overload pressure max. [bar] | 3.5 bar |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 27 mm |
| Pressure connection notes | A |
| Pressure connection size | 1/2 |
| Pressure connection standard | DIN 3852-E |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [mbar] [max] | 150 mbar |
| Pressure range [mbar] [min] | 0 mbar |
| Pressure range [psi] [max] | 2.18 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Gauge (relative) |
| Pulse-snubber | No |
| Quantity per packing format | 14 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Recommen. mounting torque [Nm] | 25 nm |
| Reference temperature [°C] | 25 °C |
| SCIP dossier no. | 16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d |
| SCIP dossier product name | AKS/MBS |
| Specification key | MBS 9300-B411-H3GB08-1 |
| Storage temperature range [°C] [max] | 125 °C |
| Storage temperature range [°C] [min] | -40 °C |
| Storage temperature range [°F] [max] | 257 °F |
| Storage temperature range [°F] [min] | -40 °F |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [min] | 9 V |
| TEB inside CTR ±FS [%] | 1.5 % |
| UL evaluated | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS Fluid Control, Pressure and Temperature Monitoring and Control EN .pdf | 29 Mbytes |
|
| PDF CATALOG DANFOSS PRESSURE TRANSMITERS EN.pdf | 8 Mbytes |
|
| PDF Types of pressure transmitters (EN).pdf | 1 Mbytes |
|
| 064G5234 064G5234 EN_064G5234.pdf | 655 Kbytes |
|
