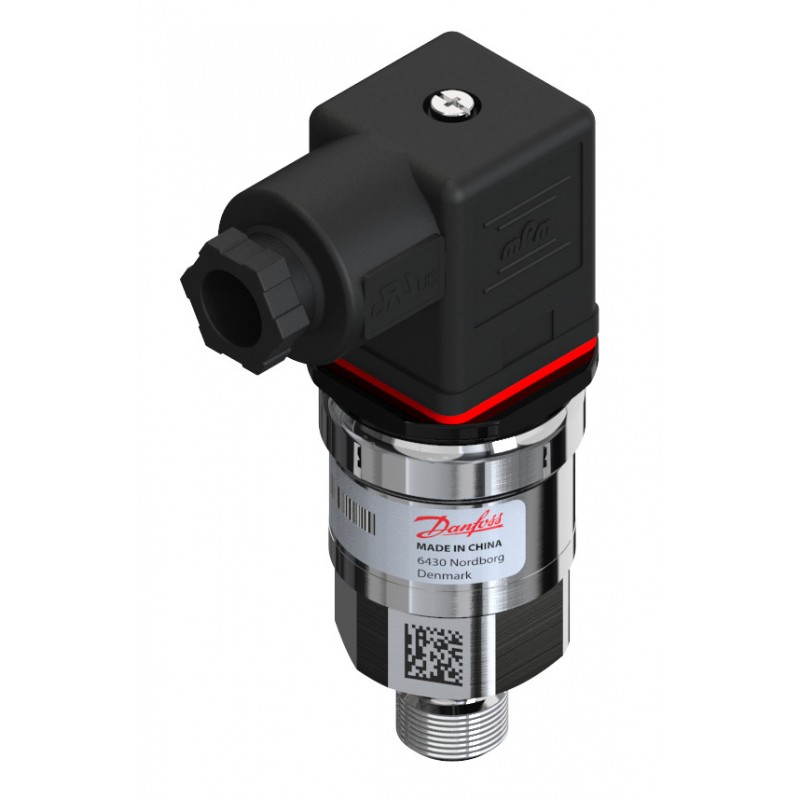

064G5227 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 9200 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

064G5227 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 9200

064G5227

DANFOSS INDUSTRIAL AUTOMATION

Pressure transmitter, MBS 9200

Pressure transmitter, MBS 9200, 0.00 bar - 0.15 bar, 0.00 psi - 2.18 psi

More details


Pressure Transmitters - DANFOSS INDUSTRIAL AUTOMATION > MBS 5150, Block-type pressure transmitters with pulse snubber for marine applications - DANFOSS INDUSTRIAL AUTOMATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Pressure reference: Gauge (relative), Output signal: Current, Electrical connection: Angular connector, Pressure connection type: M, Pressure connection size: 14 x 1.5, Specification key: MBS 9200-B411-A1FA09-1

Product details

Gross weight0.166 Kg
Net weight0.162 Kg
Volume0.251 Liter
EAN5702428907033
Gross weight0.166 Kg
Net weight0.162 Kg
Volume0.251 Liter
EAN5702428907033

+ supplyPin 1
- commonPin 2
Acc. @ ref. Temp. ±FS typ. [%]0.5 %
Ambient temperature range [°C] [max]100 °C
Ambient temperature range [°C] [min]-25 °C
Burst pressure [bar]50 bar
Compensated temp. range [°C] [max]80 °C
Compensated temp. range [°C] [min]0 °C
Durability P @ 10-90% FS10000000
Electrical conn. Male/FemaleMale
Electrical connectionAngular connector
Electrical connection sizePg 9
Electrical connection standardEN 175301-803-A
Enclosure rating IPIP65
EU RoHS complianceYes
Hysteresis and repeat.[±FS%]0.1 %
In scope of WEEE and contain batteriesNo
Intrinsically safeNo
Medium temperature range [°C] [max]125 °C
Medium temperature range [°C] [min]-20 °C
Mount.pos. err. @ 180°[±FS%]0.35 %
Non-linearity BFSL [±FS%]0.2 %
Output signalCurrent
Output signal [mA] [max]20 mA
Output signal [mA] [min]4 mA
Overload pressure max. [bar]3.5 bar
Packing formatMulti pack
Pressure connection HEX [mm]27 mm
Pressure connection size14 x 1.5
Pressure connection standardISO 6149-2
Pressure connection typeM
Pressure Male/FemaleMale
Pressure range [bar] [max]0.15 bar
Pressure range [bar] [min]0 bar
Pressure range [psi] [max]2.18 psi
Pressure range [psi] [min]0 psi
Pressure referenceGauge (relative)
Product groupSensors
Product Name DescriptionPressure transmitter
Pulse-snubberNo
Quantity per packing format20 pc
Recommen. mounting torque [Nm]25 nm
Reference temperature [°C]25 °C
Specification keyMBS 9200-B411-A1FA09-1
Storage temperature range [°C] [max]125 °C
Storage temperature range [°C] [min]-40 °C
Storage temperature range [°F] [max]257 °F
Storage temperature range [°F] [min]-40 °F
Supply voltage [V] DC [max]32 V
Supply voltage [V] DC [max]32 V
Supply voltage [V] DC [min]9 V
Supply voltage [V] DC [min]9 V
TEB inside CTR ±FS [%]1.5 %
TypeMBS 9200
+ supplyPin 1
- commonPin 2
Acc. @ ref. Temp. ±FS typ. [%]0.5 %
Ambient temperature range [°C] [max]100 °C
Ambient temperature range [°C] [min]-25 °C
Burst pressure [bar]50 bar
Compensated temp. range [°C] [max]80 °C
Compensated temp. range [°C] [min]0 °C
Durability P @ 10-90% FS10000000
Electrical conn. Male/FemaleMale
Electrical connectionAngular connector
Electrical connection sizePg 9
Electrical connection standardEN 175301-803-A
Enclosure rating IPIP65
EU RoHS complianceYes
Hysteresis and repeat.[±FS%]0.1 %
In scope of WEEE and contain batteriesNo
Intrinsically safeNo
Medium temperature range [°C] [max]125 °C
Medium temperature range [°C] [min]-20 °C
Mount.pos. err. @ 180°[±FS%]0.35 %
Non-linearity BFSL [±FS%]0.2 %
Output signalCurrent
Output signal [mA] [max]20 mA
Output signal [mA] [min]4 mA
Overload pressure max. [bar]3.5 bar
Packing formatMulti pack
Pressure connection HEX [mm]27 mm
Pressure connection size14 x 1.5
Pressure connection standardISO 6149-2
Pressure connection typeM
Pressure Male/FemaleMale
Pressure range [bar] [max]0.15 bar
Pressure range [bar] [min]0 bar
Pressure range [psi] [max]2.18 psi
Pressure range [psi] [min]0 psi
Pressure referenceGauge (relative)
Product groupSensors
Product Name DescriptionPressure transmitter
Pulse-snubberNo
Quantity per packing format20 pc
Recommen. mounting torque [Nm]25 nm
Reference temperature [°C]25 °C
Specification keyMBS 9200-B411-A1FA09-1
Storage temperature range [°C] [max]125 °C
Storage temperature range [°C] [min]-40 °C
Storage temperature range [°F] [max]257 °F
Storage temperature range [°F] [min]-40 °F
Supply voltage [V] DC [max]32 V
Supply voltage [V] DC [max]32 V
Supply voltage [V] DC [min]9 V
Supply voltage [V] DC [min]9 V
TEB inside CTR ±FS [%]1.5 %
TypeMBS 9200

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE DANFOSS Fluid Control, Pressure and Temperature Monitoring and Control EN .pdf 29 Mbytes
PDF CATALOG DANFOSS PRESSURE TRANSMITERS EN.pdf 8 Mbytes
PDF Types of pressure transmitters (EN).pdf 1 Mbytes
064G5227 064G5227 EN_064G5232.pdf 1 Mbytes 064G5227 064G5227 EN_064G5232.pdf
