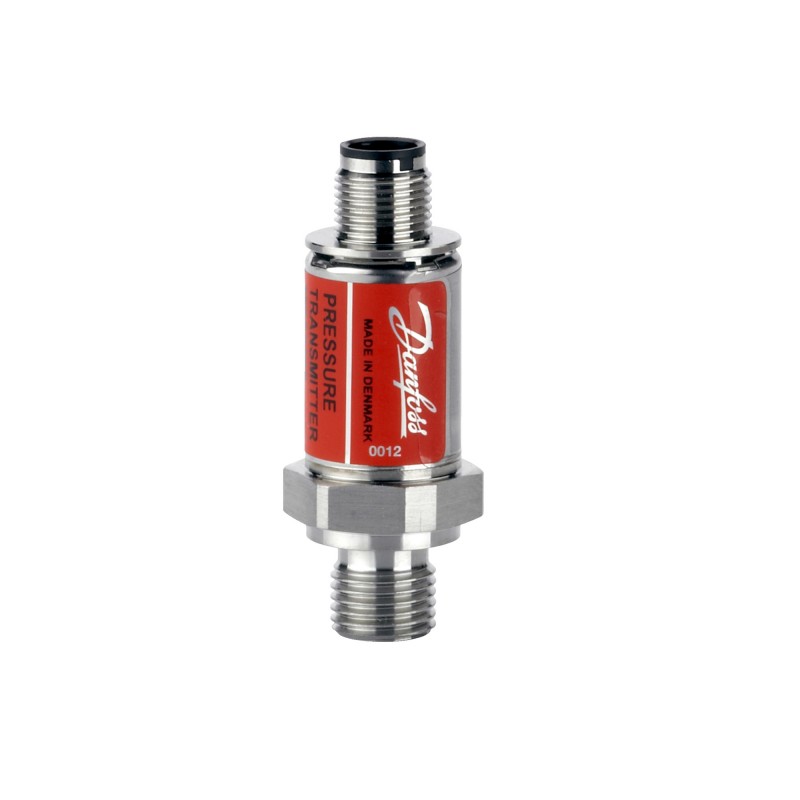

064G1102 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 8200
064G1102
DANFOSS INDUSTRIAL AUTOMATION
Pressure transmitter, MBS 8200
Pressure transmitter, MBS 8200, 0 bar - 6 bar, 0 psi - 87.02 psi
Pressure Transmitters - DANFOSS INDUSTRIAL AUTOMATION > MBS 5150, Block-type pressure transmitters with pulse snubber for marine applications - DANFOSS INDUSTRIAL AUTOMATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION
Best sellers
▲More info
▲Pressure reference: Gauge (relative), Output signal: Current, Electrical connection: M12 x 1, Pressure connection type: G, Pressure connection size: 1/4, Specification key: MBS 8200-1811-C1GB04-1
Product details
| Gross weight | 0.07 Kilogram |
| Net weight | 0.064 Kilogram |
| Volume | 0.1 Liter |
| EAN | 5702428410205 |
| Type | MBS 8200 |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Gross weight | 0.07 Kilogram |
| Net weight | 0.064 Kilogram |
| Volume | 0.1 Liter |
| EAN | 5702428410205 |
| Type | MBS 8200 |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| + supply | Pin 1 |
| - common | Pin 4 |
| Accuracy @ ref. temp. ±FS [%] | 1 % |
| Accuracy, max. [±FS%] | 1 % |
| Ambient temperature range [°C] [max] | 105 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 221 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CE cURus |
| Approval comments | UL-508 |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [max] | 70 °C |
| Compensated temp. range [°C] [min] | -10 °C |
| Compensated temp. range [°F] [max] | 158 °F |
| Compensated temp. range [°F] [min] | 14 °F |
| Contains batteries | No |
| Electrical conn. Male/Female | Male |
| Electrical connection | M12 x 1 |
| Electrical connection size | 4 pin |
| Electrical connection standard | EN 60947-5-2 |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Fault Monitoring Demand | No |
| Flush diaphragm | No |
| International Article Number | 5702428410205 |
| Intrinsically safe | No |
| Medium temperature range [°C] [max] | 125 °C |
| Medium temperature range [°C] [min] | -20 °C |
| Medium temperature range [°F] [max] | 257 °F |
| Medium temperature range [°F] [min] | -4 °F |
| Non-linearity BFSL [±FS%] | 0.2 % |
| Output signal | Current |
| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Overload pressure max. [bar] | 36 bar |
| Overload pressure max. [psi] | 522 psi |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 22 mm |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 3852-E |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 6 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 87.02 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Gauge (relative) |
| Pulse-snubber | No |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | No |
| Reference temperature [°C] | 25 °C |
| Reference temperature [°F] | 77 °F |
| Response time max. [ms] | 1 ms |
| Specification key | MBS 8200-1811-C1GB04-1 |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [min] | 9 V |
| TEB inside CTR ±FS [%] | 1 % |
| Thermal shift HTR ±FS/10 K [%] | 0.65 % |
| Thermal shift LTR ±FS/10 K [%] | 0.65 % |
| UL mark | Yes |
| + supply | Pin 1 |
| - common | Pin 4 |
| Accuracy @ ref. temp. ±FS [%] | 1 % |
| Accuracy, max. [±FS%] | 1 % |
| Ambient temperature range [°C] [max] | 105 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 221 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CE cURus |
| Approval comments | UL-508 |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [max] | 70 °C |
| Compensated temp. range [°C] [min] | -10 °C |
| Compensated temp. range [°F] [max] | 158 °F |
| Compensated temp. range [°F] [min] | 14 °F |
| Contains batteries | No |
| Electrical conn. Male/Female | Male |
| Electrical connection | M12 x 1 |
| Electrical connection size | 4 pin |
| Electrical connection standard | EN 60947-5-2 |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Fault Monitoring Demand | No |
| Flush diaphragm | No |
| International Article Number | 5702428410205 |
| Intrinsically safe | No |
| Medium temperature range [°C] [max] | 125 °C |
| Medium temperature range [°C] [min] | -20 °C |
| Medium temperature range [°F] [max] | 257 °F |
| Medium temperature range [°F] [min] | -4 °F |
| Non-linearity BFSL [±FS%] | 0.2 % |
| Output signal | Current |
| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Overload pressure max. [bar] | 36 bar |
| Overload pressure max. [psi] | 522 psi |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 22 mm |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 3852-E |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 6 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 87.02 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Gauge (relative) |
| Pulse-snubber | No |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | No |
| Reference temperature [°C] | 25 °C |
| Reference temperature [°F] | 77 °F |
| Response time max. [ms] | 1 ms |
| Specification key | MBS 8200-1811-C1GB04-1 |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [min] | 9 V |
| TEB inside CTR ±FS [%] | 1 % |
| Thermal shift HTR ±FS/10 K [%] | 0.65 % |
| Thermal shift LTR ±FS/10 K [%] | 0.65 % |
| UL mark | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS Fluid Control, Pressure and Temperature Monitoring and Control EN .pdf | 29 Mbytes |
|
| PDF CATALOG DANFOSS PRESSURE TRANSMITERS EN.pdf | 8 Mbytes |
|
| PDF Types of pressure transmitters (EN).pdf | 1 Mbytes |
|
| 064G1102 064G1102 EN_064G1102.pdf | 589 Kbytes |
|
