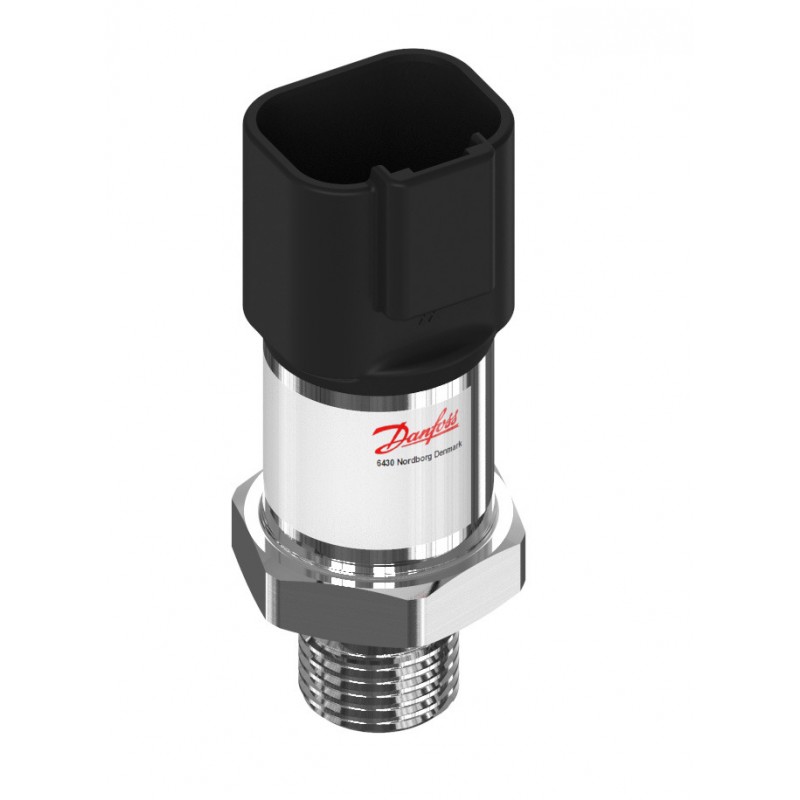

063G4377 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 1350
063G4377
DANFOSS INDUSTRIAL AUTOMATION
Pressure transmitter, MBS 1350
Pressure transmitter, MBS 1350, 0.00 bar - 250.00 bar, 0.00 psi - 3625.93 psi
Pressure Transmitters - DANFOSS INDUSTRIAL AUTOMATION > MBS 1250, OEM Pressure transmitter for heavy duty applications - DANFOSS INDUSTRIAL AUTOMATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION
Best sellers
▲More info
▲Pressure reference: Gauge (relative), Output signal: Voltage, Electrical connection: Deutsch, Pressure connection type: UNF, Pressure connection size: 9/16-18, Specification key: MBS 1350-341C-C3BD11-1
Product details
| Gross weight | 0.078 Kg |
| Net weight | 0.07 Kg |
| Volume | 0.38 Liter |
| EAN | 5702423266388 |
| Gross weight | 0.078 Kg |
| Net weight | 0.07 Kg |
| Volume | 0.38 Liter |
| EAN | 5702423266388 |
| + output | Pin 4 |
| + supply | Pin 2 |
| - common | Pin 1 |
| Accuracy, typical [±FS%] | 0.5 % |
| Ambient temperature range [°C] [max] | 125 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 257 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Burst pressure [bar] | 2500 bar |
| Burst pressure [psig] | 36000 psig |
| Comments | SWITCH:12V AT 25 BAR PIN 3 |
| Compensated temp. range [°C] [max] | 125 °C |
| Compensated temp. range [°C] [min] | -40 °C |
| Compensated temp. range [°F] [max] | 257 °F |
| Compensated temp. range [°F] [min] | -40 °F |
| Electrical conn. comments | Au coated |
| Electrical conn. Male/Female | Male |
| Electrical connection | Deutsch |
| Electrical connection size | 4 pin |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| In scope of WEEE and contain batteries | No |
| Medium temperature range [°C] [max] | 125 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 257 °F |
| Medium temperature range [°F] [min] | -40 °F |
| Output signal | Voltage |
| Output signal [V] [max] | 4.5 V |
| Output signal [V] [min] | 0.5 V |
| Overload pressure max. [bar] | 750 bar |
| Overload pressure max. [psig] | 10000 psig |
| Packing format | Industrial pack |
| Pressure connection HEX [mm] | 22 mm |
| Pressure connection size | 9/16-18 |
| Pressure connection standard | SAE J1926/2 |
| Pressure connection type | UNF |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 250 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 3625.93 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Gauge (relative) |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Pulse-snubber | Yes |
| Quantity per packing format | 50 pc |
| Response time max. [ms] | 1 ms |
| Specification key | MBS 1350-341C-C3BD11-1 |
| Supply voltage [V] DC [max] | 30 V |
| Supply voltage [V] DC [min] | 8 V |
| Type | MBS 1350 |
| + output | Pin 4 |
| + supply | Pin 2 |
| - common | Pin 1 |
| Accuracy, typical [±FS%] | 0.5 % |
| Ambient temperature range [°C] [max] | 125 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 257 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Burst pressure [bar] | 2500 bar |
| Burst pressure [psig] | 36000 psig |
| Comments | SWITCH:12V AT 25 BAR PIN 3 |
| Compensated temp. range [°C] [max] | 125 °C |
| Compensated temp. range [°C] [min] | -40 °C |
| Compensated temp. range [°F] [max] | 257 °F |
| Compensated temp. range [°F] [min] | -40 °F |
| Electrical conn. comments | Au coated |
| Electrical conn. Male/Female | Male |
| Electrical connection | Deutsch |
| Electrical connection size | 4 pin |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| In scope of WEEE and contain batteries | No |
| Medium temperature range [°C] [max] | 125 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 257 °F |
| Medium temperature range [°F] [min] | -40 °F |
| Output signal | Voltage |
| Output signal [V] [max] | 4.5 V |
| Output signal [V] [min] | 0.5 V |
| Overload pressure max. [bar] | 750 bar |
| Overload pressure max. [psig] | 10000 psig |
| Packing format | Industrial pack |
| Pressure connection HEX [mm] | 22 mm |
| Pressure connection size | 9/16-18 |
| Pressure connection standard | SAE J1926/2 |
| Pressure connection type | UNF |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 250 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 3625.93 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Gauge (relative) |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Pulse-snubber | Yes |
| Quantity per packing format | 50 pc |
| Response time max. [ms] | 1 ms |
| Specification key | MBS 1350-341C-C3BD11-1 |
| Supply voltage [V] DC [max] | 30 V |
| Supply voltage [V] DC [min] | 8 V |
| Type | MBS 1350 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS Fluid Control, Pressure and Temperature Monitoring and Control EN .pdf | 29 Mbytes |
|
| PDF CATALOG DANFOSS PRESSURE TRANSMITERS EN.pdf | 8 Mbytes |
|
| PDF Types of pressure transmitters (EN).pdf | 1 Mbytes |
|
| 063G4377 063G4377 ES_063G4377.pdf | 639 Kbytes |
|
