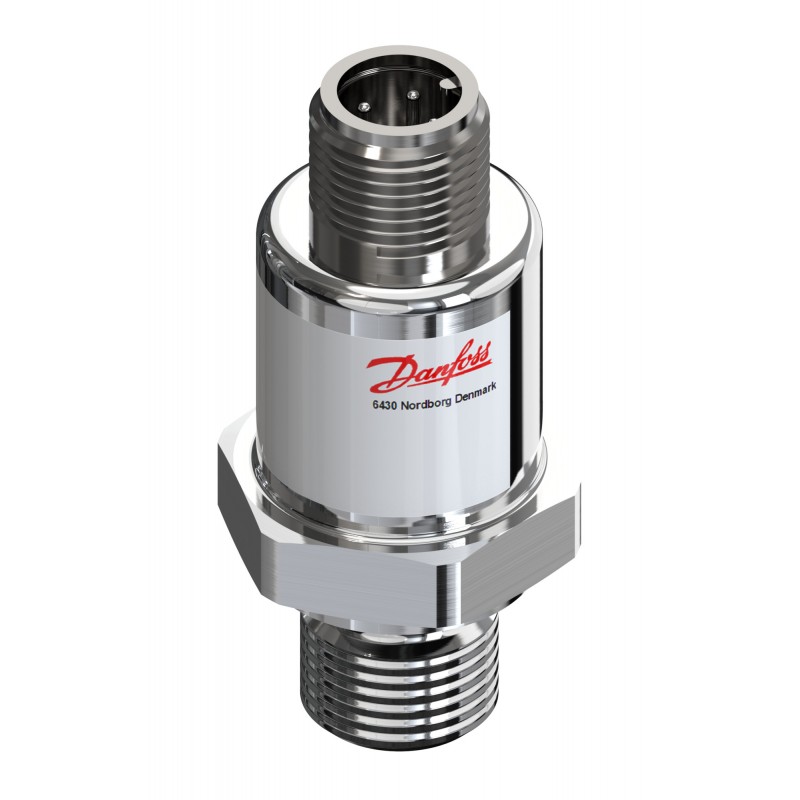

063G1496 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 1350
063G1496
DANFOSS INDUSTRIAL AUTOMATION
Pressure transmitter, MBS 1350
Pressure transmitter, MBS 1350, 0 bar - 250 bar, 0 psi - 3625 psi
Pressure Transmitters - DANFOSS INDUSTRIAL AUTOMATION > MBS 1250, OEM Pressure transmitter for heavy duty applications - DANFOSS INDUSTRIAL AUTOMATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION
Best sellers
▲More info
▲Pressure reference: Gauge (relative), Output signal: Voltage, Electrical connection: M12 x 1, Pressure connection type: G, Pressure connection size: 1/4, Specification key: MBS 1350-341B-C1GB04-2
Product details
| Gross weight | 0.063 Kilogram |
| Net weight | 0.062 Kilogram |
| Volume | 0.097 Liter |
| EAN | 5702423278534 |
| Type | MBS 1350 |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Gross weight | 0.063 Kilogram |
| Net weight | 0.062 Kilogram |
| Volume | 0.097 Liter |
| EAN | 5702423278534 |
| Type | MBS 1350 |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| + output | Pin 2 |
| + supply | Pin 1 |
| - common | Pin 3 |
| Accuracy, typical [±FS%] | 0.5 % |
| Ambient temperature range [°C] [max] | 125 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 257 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CE C UL US UL Recognized |
| Burst pressure [bar] | 2500 bar |
| Burst pressure [psig] | 36250 psig |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Comments | OUTPUT 2: PIN 4 |
| Compensated temp. range [°C] [max] | 125 °C |
| Compensated temp. range [°C] [min] | -40 °C |
| Compensated temp. range [°F] [max] | 257 °F |
| Compensated temp. range [°F] [min] | -40 °F |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. Male/Female | Male |
| Electrical connection | M12 x 1 |
| Electrical connection size | 4 pin |
| Electrical connection standard | EN 60947-5-2 |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Identical product | 063G4496 |
| In scope of WEEE | Yes |
| Medium temperature range [°C] [max] | 125 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 257 °F |
| Medium temperature range [°F] [min] | -40 °F |
| Output signal | Voltage |
| Output signal [V] [max] | 10.1 V |
| Output signal [V] [min] | 0.1 V |
| Overload pressure max. [bar] | 750 bar |
| Overload pressure max. [psig] | 10800 psig |
| Packing format | Multi pack |
| Pin surface material | Au |
| Pressure connection HEX [mm] | 22 mm |
| Pressure connection notes | A |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 3852-E |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 250 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 3625 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Gauge (relative) |
| Pulse-snubber | Yes |
| Quantity per packing format | 48 pc |
| REACH Candidate List substances | No |
| Response time max. [ms] | 1 ms |
| Specification key | MBS 1350-341B-C1GB04-2 |
| Supply voltage [V] DC [max] | 30 V |
| Supply voltage [V] DC [min] | 12 V |
| UL mark | Yes |
| + output | Pin 2 |
| + supply | Pin 1 |
| - common | Pin 3 |
| Accuracy, typical [±FS%] | 0.5 % |
| Ambient temperature range [°C] [max] | 125 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 257 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CE C UL US UL Recognized |
| Burst pressure [bar] | 2500 bar |
| Burst pressure [psig] | 36250 psig |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Comments | OUTPUT 2: PIN 4 |
| Compensated temp. range [°C] [max] | 125 °C |
| Compensated temp. range [°C] [min] | -40 °C |
| Compensated temp. range [°F] [max] | 257 °F |
| Compensated temp. range [°F] [min] | -40 °F |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. Male/Female | Male |
| Electrical connection | M12 x 1 |
| Electrical connection size | 4 pin |
| Electrical connection standard | EN 60947-5-2 |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Identical product | 063G4496 |
| In scope of WEEE | Yes |
| Medium temperature range [°C] [max] | 125 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 257 °F |
| Medium temperature range [°F] [min] | -40 °F |
| Output signal | Voltage |
| Output signal [V] [max] | 10.1 V |
| Output signal [V] [min] | 0.1 V |
| Overload pressure max. [bar] | 750 bar |
| Overload pressure max. [psig] | 10800 psig |
| Packing format | Multi pack |
| Pin surface material | Au |
| Pressure connection HEX [mm] | 22 mm |
| Pressure connection notes | A |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 3852-E |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 250 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 3625 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Gauge (relative) |
| Pulse-snubber | Yes |
| Quantity per packing format | 48 pc |
| REACH Candidate List substances | No |
| Response time max. [ms] | 1 ms |
| Specification key | MBS 1350-341B-C1GB04-2 |
| Supply voltage [V] DC [max] | 30 V |
| Supply voltage [V] DC [min] | 12 V |
| UL mark | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS Fluid Control, Pressure and Temperature Monitoring and Control EN .pdf | 29 Mbytes |
|
| PDF CATALOG DANFOSS PRESSURE TRANSMITERS EN.pdf | 8 Mbytes |
|
| PDF Types of pressure transmitters (EN).pdf | 1 Mbytes |
|
| 063G1496 063G1496 ES_063G1496.pdf | 398 Kbytes |
|
