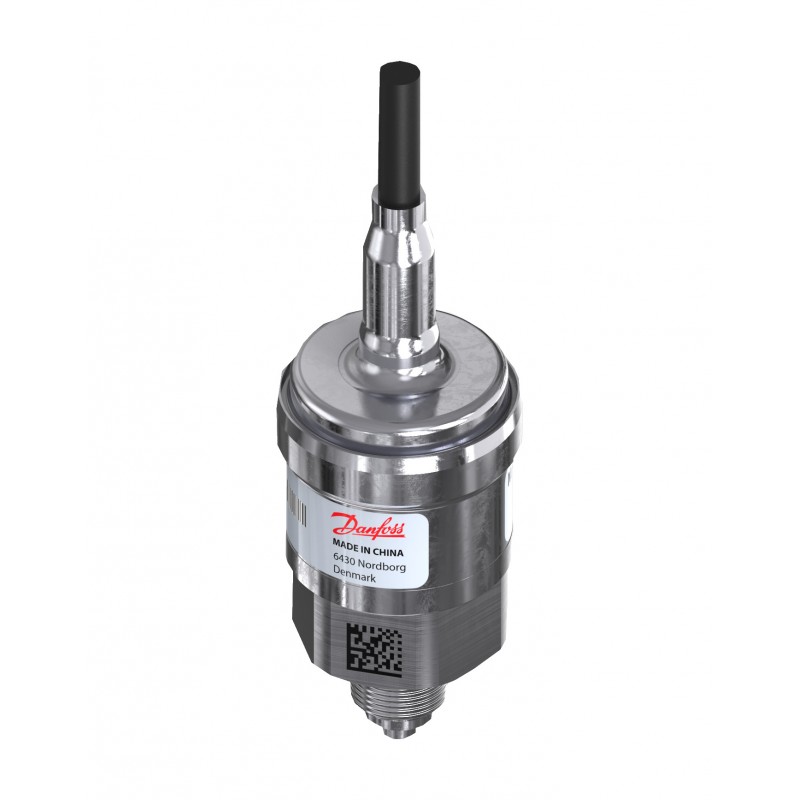

060G4083 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 3000 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

060G4083 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 3000

060G4083

DANFOSS INDUSTRIAL AUTOMATION

Pressure transmitter, MBS 3000

Pressure transmitter, MBS 3000, 0 bar - 10 bar, 0 psi - 145 psi

More details


Pressure Transmitters - DANFOSS INDUSTRIAL AUTOMATION > Pressure transmitter for general industrial purposes Type MBS 3000 - DANFOSS INDUSTRIAL AUTOMATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Pressure reference: Gauge (relative), Output signal: Current, Electrical connection: Cable, Pressure connection type: G, Pressure connection size: 1/4, Specification key: MBS 3000-2011-A3AB04-0 I/12

Product details

Gross weight0.253 Kilogram
Net weight0.225 Kilogram
Volume0.937 Liter
EAN5702423084531
TypeMBS 3000
Product groupSensors
Product Name DescriptionPressure transmitter
Gross weight0.253 Kilogram
Net weight0.225 Kilogram
Volume0.937 Liter
EAN5702423084531
TypeMBS 3000
Product groupSensors
Product Name DescriptionPressure transmitter

+ supplyBrown
- commonBlack
Accuracy, max. [±FS%]1 %
Accuracy, typical [±FS%]0.5 %
Adj. zero point and spanNo
Ambient temperature range [°C] [max]85 °C
Ambient temperature range [°C] [min]-30 °C
Ambient temperature range [°F] [max]185 °F
Ambient temperature range [°F] [min]-22 °F
Approval commentsATEX Ex ec IIA T4 Gc
Cable length [in]79 in
Cable length [m]2 m
CE markYes
China RoHS complianceOut of scope
Compensated temp. range [°C] [max]80 °C
Compensated temp. range [°C] [min]0 °C
Compensated temp. range [°F] [max]176 °F
Compensated temp. range [°F] [min]32 °F
Contains batteriesNo
EEE category5 small equipment (any external dimension < 50 cm)
Electrical conn. commentsScreened
Electrical connectionCable
Enclosure rating IPIP67
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flush diaphragmNo
High Clipping Level22.4
Identical product060G1129
In scope of WEEEYes
International Article Number5702423084531
Intrinsically safeNo
Low Clipping level3.6
Medium temperature range [°C] [max]85 °C
Medium temperature range [°C] [min]-40 °C
Medium temperature range [°F] [max]185 °F
Medium temperature range [°F] [min]-40 °F
Non-linearity BFSL [±FS%]0.5 %
Output signalCurrent
Output signal [mA] [max]20 mA
Output signal [mA] [min]4 mA
Overload pressure max. [bar]60 bar
Overload pressure max. [psi]870 psi
Packing formatIndustrial pack
Pressure connection HEX [mm]27 mm
Pressure connection size1/4
Pressure connection standardEN 837
Pressure connection typeG
Pressure Male/FemaleMale
Pressure range [bar] [max]10 bar
Pressure range [bar] [min]0 bar
Pressure range [psi] [max]145 psi
Pressure range [psi] [min]0 psi
Pressure referenceGauge (relative)
Pulse-snubberNo
Quantity per packing format12 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Response time max. [ms]4 ms
SCIP dossier no.16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
SCIP dossier product nameAKS/MBS
Specification keyMBS 3000-2011-A3AB04-0 I/12
Supply voltage [V] DC [max]32 V
Supply voltage [V] DC [min]9 V
UL markYes
+ supplyBrown
- commonBlack
Accuracy, max. [±FS%]1 %
Accuracy, typical [±FS%]0.5 %
Adj. zero point and spanNo
Ambient temperature range [°C] [max]85 °C
Ambient temperature range [°C] [min]-30 °C
Ambient temperature range [°F] [max]185 °F
Ambient temperature range [°F] [min]-22 °F
Approval commentsATEX Ex ec IIA T4 Gc
Cable length [in]79 in
Cable length [m]2 m
CE markYes
China RoHS complianceOut of scope
Compensated temp. range [°C] [max]80 °C
Compensated temp. range [°C] [min]0 °C
Compensated temp. range [°F] [max]176 °F
Compensated temp. range [°F] [min]32 °F
Contains batteriesNo
EEE category5 small equipment (any external dimension < 50 cm)
Electrical conn. commentsScreened
Electrical connectionCable
Enclosure rating IPIP67
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flush diaphragmNo
High Clipping Level22.4
Identical product060G1129
In scope of WEEEYes
International Article Number5702423084531
Intrinsically safeNo
Low Clipping level3.6
Medium temperature range [°C] [max]85 °C
Medium temperature range [°C] [min]-40 °C
Medium temperature range [°F] [max]185 °F
Medium temperature range [°F] [min]-40 °F
Non-linearity BFSL [±FS%]0.5 %
Output signalCurrent
Output signal [mA] [max]20 mA
Output signal [mA] [min]4 mA
Overload pressure max. [bar]60 bar
Overload pressure max. [psi]870 psi
Packing formatIndustrial pack
Pressure connection HEX [mm]27 mm
Pressure connection size1/4
Pressure connection standardEN 837
Pressure connection typeG
Pressure Male/FemaleMale
Pressure range [bar] [max]10 bar
Pressure range [bar] [min]0 bar
Pressure range [psi] [max]145 psi
Pressure range [psi] [min]0 psi
Pressure referenceGauge (relative)
Pulse-snubberNo
Quantity per packing format12 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Response time max. [ms]4 ms
SCIP dossier no.16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
SCIP dossier product nameAKS/MBS
Specification keyMBS 3000-2011-A3AB04-0 I/12
Supply voltage [V] DC [max]32 V
Supply voltage [V] DC [min]9 V
UL markYes

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE DANFOSS Fluid Control, Pressure and Temperature Monitoring and Control EN .pdf 29 Mbytes
PDF CATALOG DANFOSS PRESSURE TRANSMITERS EN.pdf 8 Mbytes
PDF Types of pressure transmitters (EN).pdf 1 Mbytes
060G4083 060G4083 EN_060G1539.pdf 934 Kbytes 060G4083 060G4083 EN_060G1539.pdf
