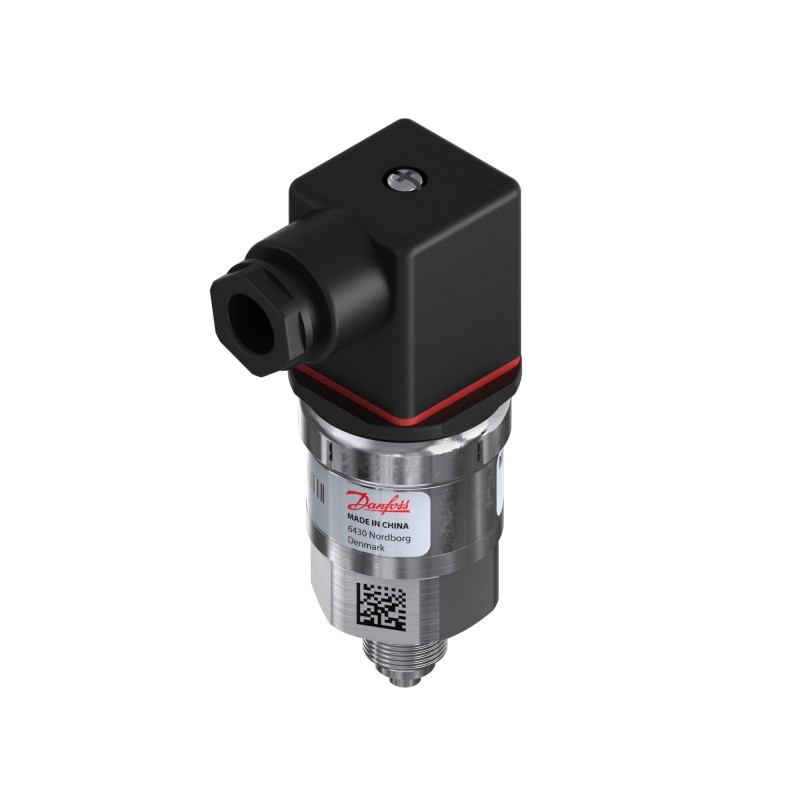

060G4078 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 3000 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

060G4078 DANFOSS CONTROLES INDUSTRIALES Pressure transmitter, MBS 3000

060G4078

DANFOSS INDUSTRIAL AUTOMATION

Pressure transmitter, MBS 3000

Pressure transmitter, MBS 3000, 0.00 bar - 6.00 bar, 0.00 psi - 87.02 psi

More details


Pressure Transmitters - DANFOSS INDUSTRIAL AUTOMATION > Pressure transmitter for general industrial purposes Type MBS 3000 - DANFOSS INDUSTRIAL AUTOMATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Pressure reference: Gauge (relative), Output signal: Current, Electrical connection: Angular connector, Pressure connection type: G, Pressure connection size: 1/4, Specification key: MBS 3000-1811-A1AB04-0 I/14

Product details

Gross weight0.16 Kg
Net weight0.139 Kg
Volume0.49 Liter
EAN5702423084173
Gross weight0.16 Kg
Net weight0.139 Kg
Volume0.49 Liter
EAN5702423084173

+ supplyPin 1
- commonPin 2
Accuracy, max. [±FS%]1 %
Accuracy, typical [±FS%]0.5 %
Ambient temperature range [°C] [max]85 °C
Ambient temperature range [°C] [min]-40 °C
Ambient temperature range [°F] [max]185 °F
Ambient temperature range [°F] [min]-40 °F
ApprovalATEX
Approval commentsATEX Ex nA IIA T3 Gc
Compensated temp. range [°C] [max]80 °C
Compensated temp. range [°C] [min]0 °C
Compensated temp. range [°F] [max]176 °F
Compensated temp. range [°F] [min]32 °F
Electrical conn. Male/FemaleMale and Female
Electrical connectionAngular connector
Electrical connection sizePg 9
Electrical connection standardEN 175301-803-A
Enclosure rating IPIP65
Flush diaphragmNo
High Clipping Level22.4
Identical product060G1124
In scope of WEEE and contain batteriesNo
International Article Number5702423084173
Intrinsically safeNo
Low Clipping level3.6
Medium temperature range [°C] [max]85 °C
Medium temperature range [°C] [min]-40 °C
Medium temperature range [°F] [max]185 °F
Medium temperature range [°F] [min]-40 °F
Non-linearity BFSL [±FS%]0.5 %
Output signalCurrent
Output signal [mA] [max]20 mA
Output signal [mA] [min]4 mA
Overload pressure max. [bar]36 bar
Overload pressure max. [psi]522 psi
Packing formatIndustrial pack
Pressure connection HEX [mm]27 mm
Pressure connection size1/4
Pressure connection standardEN 837
Pressure connection typeG
Pressure Male/FemaleMale
Pressure range [bar] [max]6 bar
Pressure range [bar] [min]0 bar
Pressure range [psi] [max]87.02 psi
Pressure range [psi] [min]0 psi
Pressure referenceGauge (relative)
Product groupSensors
Product Name DescriptionPressure transmitter
Pulse-snubberNo
Quantity per packing format14 pc
Response time max. [ms]4 ms
Specification keyMBS 3000-1811-A1AB04-0 I/14
Supply voltage [V] DC [max]30 V
Supply voltage [V] DC [max]30 V
Supply voltage [V] DC [min]10 V
Supply voltage [V] DC [min]10 V
TypeMBS 3000
+ supplyPin 1
- commonPin 2
Accuracy, max. [±FS%]1 %
Accuracy, typical [±FS%]0.5 %
Ambient temperature range [°C] [max]85 °C
Ambient temperature range [°C] [min]-40 °C
Ambient temperature range [°F] [max]185 °F
Ambient temperature range [°F] [min]-40 °F
ApprovalATEX
Approval commentsATEX Ex nA IIA T3 Gc
Compensated temp. range [°C] [max]80 °C
Compensated temp. range [°C] [min]0 °C
Compensated temp. range [°F] [max]176 °F
Compensated temp. range [°F] [min]32 °F
Electrical conn. Male/FemaleMale and Female
Electrical connectionAngular connector
Electrical connection sizePg 9
Electrical connection standardEN 175301-803-A
Enclosure rating IPIP65
Flush diaphragmNo
High Clipping Level22.4
Identical product060G1124
In scope of WEEE and contain batteriesNo
International Article Number5702423084173
Intrinsically safeNo
Low Clipping level3.6
Medium temperature range [°C] [max]85 °C
Medium temperature range [°C] [min]-40 °C
Medium temperature range [°F] [max]185 °F
Medium temperature range [°F] [min]-40 °F
Non-linearity BFSL [±FS%]0.5 %
Output signalCurrent
Output signal [mA] [max]20 mA
Output signal [mA] [min]4 mA
Overload pressure max. [bar]36 bar
Overload pressure max. [psi]522 psi
Packing formatIndustrial pack
Pressure connection HEX [mm]27 mm
Pressure connection size1/4
Pressure connection standardEN 837
Pressure connection typeG
Pressure Male/FemaleMale
Pressure range [bar] [max]6 bar
Pressure range [bar] [min]0 bar
Pressure range [psi] [max]87.02 psi
Pressure range [psi] [min]0 psi
Pressure referenceGauge (relative)
Product groupSensors
Product Name DescriptionPressure transmitter
Pulse-snubberNo
Quantity per packing format14 pc
Response time max. [ms]4 ms
Specification keyMBS 3000-1811-A1AB04-0 I/14
Supply voltage [V] DC [max]30 V
Supply voltage [V] DC [max]30 V
Supply voltage [V] DC [min]10 V
Supply voltage [V] DC [min]10 V
TypeMBS 3000

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE DANFOSS Fluid Control, Pressure and Temperature Monitoring and Control EN .pdf 29 Mbytes
PDF CATALOG DANFOSS PRESSURE TRANSMITERS EN.pdf 8 Mbytes
PDF Types of pressure transmitters (EN).pdf 1 Mbytes
060G4078 060G4078 EN_060G1650.pdf 1 Mbytes 060G4078 060G4078 EN_060G1650.pdf
