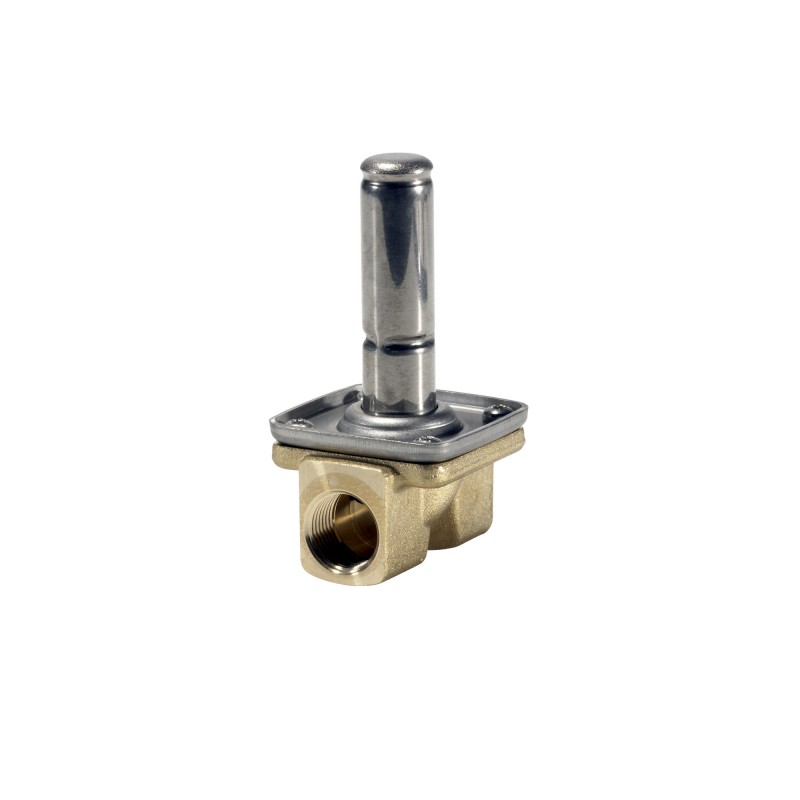

032U6528 DANFOSS CONTROLES INDUSTRIALES EV220B, Solenoid valve, NPT, NO, EPDM
032U6528
DANFOSS INDUSTRIAL AUTOMATION
EV220B, Solenoid valve, NPT, NO, EPDM
Solenoid valve, EV220B, Function: NO, NPT, 3/8, 0.7 m³/h, EPDM
Industrial valves - DANFOSS INDUSTRIAL AUTOMATION > Solenoid valves, 2/2-way servo-operated type EV220B 6-22 - DANFOSS INDUSTRIAL AUTOMATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION
Best sellers
▲More info
▲Media recommendations: Water & Brine, Approval: DNVGL-CG-0339; GL; cURus recognized; C UL US LISTED, Body material: Brass, Operation: Servo-operated (diaphragm), Number of ways: 2/2
Product details
| Gross weight | 0.26 Kilogram |
| Net weight | 0.237 Kilogram |
| Volume | 0.253 Liter |
| EAN | 5702423031689 |
| Type | EV220B |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Gross weight | 0.26 Kilogram |
| Net weight | 0.237 Kilogram |
| Volume | 0.253 Liter |
| EAN | 5702423031689 |
| Type | EV220B |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Actuator | B |
| Actuator size | 13.5 mm |
| Actuator size [in] | 0.53 in |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature max. [°C] | 50 °C |
| Ambient temperature max. [°F] | 122 °F |
| Application | Open |
| Body material | Brass |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.3 |
| Connection Internal/External | Internal |
| Connection material | Brass |
| Connection size [in] | 3/8 |
| Connection standard | ANSI/ASME B1.20.1 |
| Connection type | NPT |
| Contains batteries | No |
| Cv value [gal/min] | 0.8 gal/min |
| Differential pressure [bar] [max] | 9.791 bar |
| Differential pressure [bar] [min] | 0.1 bar |
| Differential pressure [psi] [max] | 142 psi |
| Differential pressure [psi] [min] | 1.45 psi |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Est. time to close, water [ms] | 250 ms |
| Est. time to open, water [ms] | 40 ms |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Function | NO |
| In scope of WEEE | Yes |
| Kv value [m³/h] | 0.7 m³/h |
| Max media viscosity [cSt] | 50 cSt |
| Max. test pressure [bar] | 50 bar |
| Max. test pressure [psig] | 725 psig |
| Max. Working Pressure [bar] | 24.1 bar |
| Max. Working Pressure [psig] | 350 psig |
| Media recommendations | Water & Brine |
| Media tolerance comments | Neutral media |
| Medium temperature range [°C] [max] | 90 °C |
| Medium temperature range [°C] [min] | -10 °C |
| Medium temperature range [°F] [max] | 194 °F |
| Medium temperature range [°F] [min] | 14 °F |
| Number of ways | 2/2 |
| Operation | Servo-operated (diaphragm) |
| Orifice size [mm] | 6 mm |
| Orifice size fraction [in] | 1/4 in |
| Packing format | Multi pack |
| Parts Program name | EV220B 6 - 22 |
| Product accessories | Solenoid valve accessories |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 77f45aa5-e4c6-4c8e-8a6f-38d910d5d18d |
| SCIP dossier product name | EV220B 6-12 brass NO - solenoid valve |
| Seal Material | EPDM |
| Serviceable | Solenoid valve spare parts |
| Specification key | EV220B 6B N 38E NO000 |
| Type designation | EV220B 6 |
| UL mark | Yes |
| Actuator | B |
| Actuator size | 13.5 mm |
| Actuator size [in] | 0.53 in |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature max. [°C] | 50 °C |
| Ambient temperature max. [°F] | 122 °F |
| Application | Open |
| Body material | Brass |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.3 |
| Connection Internal/External | Internal |
| Connection material | Brass |
| Connection size [in] | 3/8 |
| Connection standard | ANSI/ASME B1.20.1 |
| Connection type | NPT |
| Contains batteries | No |
| Cv value [gal/min] | 0.8 gal/min |
| Differential pressure [bar] [max] | 9.791 bar |
| Differential pressure [bar] [min] | 0.1 bar |
| Differential pressure [psi] [max] | 142 psi |
| Differential pressure [psi] [min] | 1.45 psi |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Est. time to close, water [ms] | 250 ms |
| Est. time to open, water [ms] | 40 ms |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Function | NO |
| In scope of WEEE | Yes |
| Kv value [m³/h] | 0.7 m³/h |
| Max media viscosity [cSt] | 50 cSt |
| Max. test pressure [bar] | 50 bar |
| Max. test pressure [psig] | 725 psig |
| Max. Working Pressure [bar] | 24.1 bar |
| Max. Working Pressure [psig] | 350 psig |
| Media recommendations | Water & Brine |
| Media tolerance comments | Neutral media |
| Medium temperature range [°C] [max] | 90 °C |
| Medium temperature range [°C] [min] | -10 °C |
| Medium temperature range [°F] [max] | 194 °F |
| Medium temperature range [°F] [min] | 14 °F |
| Number of ways | 2/2 |
| Operation | Servo-operated (diaphragm) |
| Orifice size [mm] | 6 mm |
| Orifice size fraction [in] | 1/4 in |
| Packing format | Multi pack |
| Parts Program name | EV220B 6 - 22 |
| Product accessories | Solenoid valve accessories |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 77f45aa5-e4c6-4c8e-8a6f-38d910d5d18d |
| SCIP dossier product name | EV220B 6-12 brass NO - solenoid valve |
| Seal Material | EPDM |
| Serviceable | Solenoid valve spare parts |
| Specification key | EV220B 6B N 38E NO000 |
| Type designation | EV220B 6 |
| UL mark | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS Fluid Control, Pressure and Temperature Monitoring and Control EN .pdf | 29 Mbytes |
|
| PDF Directional Control Valves Technical Information EN.pdf | 8 Mbytes |
|
| PDF Solenoid valves overview 2024 EN.pdf | 2 Mbytes |
|
| PDF solenoid valves EN.pdf | 2 Mbytes |
|
