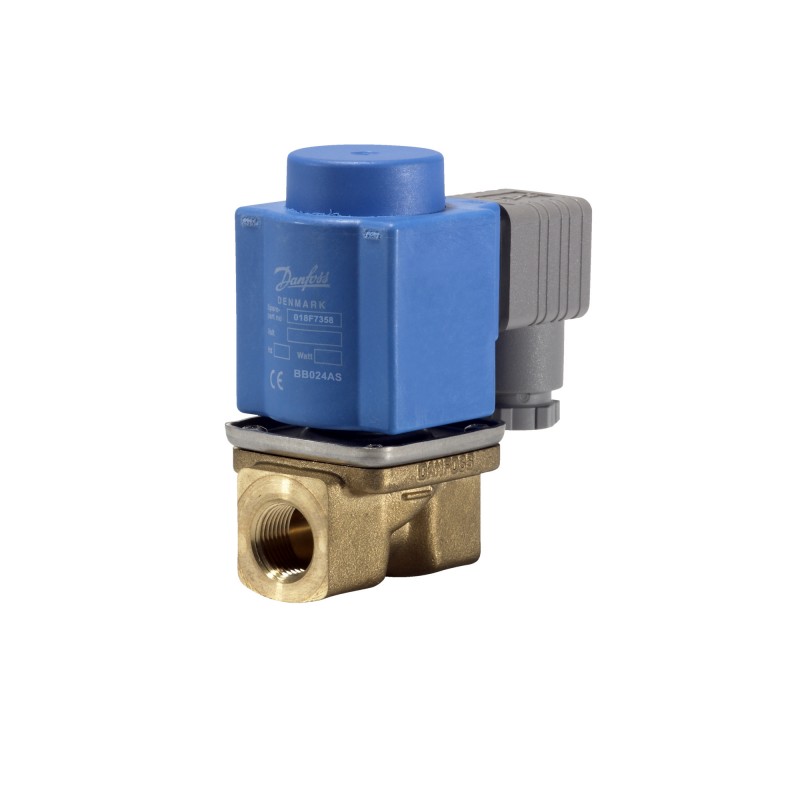

032U151816 DANFOSS CONTROLES INDUSTRIALES EV220B, Solenoid valve, G, NC, NBR
032U151816
DANFOSS INDUSTRIAL AUTOMATION
EV220B, Solenoid valve, G, NC, NBR
Solenoid valve, EV220B, Function: NC, G, 3/8, 1.500 m³/h, NBR
Industrial valves - DANFOSS INDUSTRIAL AUTOMATION > Solenoid valves, 2/2-way servo-operated type EV220B 6-22 - DANFOSS INDUSTRIAL AUTOMATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION
Best sellers
▲More info
▲Approval: DNVGL-CG-0339; CE; UKCA, Body material: Brass, Operation: Servo-operated (diaphragm), Number of ways: 2/2
Product details
| Gross weight | 0.626 Kg |
| Net weight | 0.603 Kg |
| Volume | 1.002 Liter |
| EAN | 5702423187089 |
| Gross weight | 0.626 Kg |
| Net weight | 0.603 Kg |
| Volume | 1.002 Liter |
| EAN | 5702423187089 |
| Actuator | B |
| Actuator size | 13.5 mm |
| Actuator size [in] | 0.53 in |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature max. [°C] | 80 °C |
| Ambient temperature max. [°F] | 176 °F |
| Application | Open |
| Approval | CE DNVGL-CG-0339 UKCA |
| Body material | Brass |
| Coil option | Clip-on |
| Coil type | BB |
| Connection Internal/External | Internal |
| Connection material | Brass |
| Connection size [in] | 3/8 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Cv value [gal/min] | 1.75 gal/min |
| Differential pressure [bar] [max] | 20 bar |
| Differential pressure [bar] [min] | 0.1 bar |
| Differential pressure [psi] [max] | 290 psi |
| Differential pressure [psi] [min] | 1.45 psi |
| Electrical connection | Spade DIN 43650-A |
| Enclosure rating IP | IP65 |
| Est. time to close, water [ms] | 300 ms |
| Est. time to open, water [ms] | 50 ms |
| EU RoHS compliance | Yes with exemptions |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Frequency [Hz] | 50 Hz |
| Function | NC |
| In scope of WEEE and contain batteries | No |
| Kv value [m³/h] | 1.5 m³/h |
| Max media viscosity [cSt] | 50 cSt |
| Max. test pressure [bar] | 30 bar |
| Max. test pressure [psig] | 435 psig |
| Max. Working Pressure [bar] | 20 bar |
| Max. Working Pressure [psig] | 290 psig |
| Media recommendations | Water,Brine,Oil,Air |
| Media tolerance comments | Neutral media |
| Medium temperature range [°C] [max] | 90 °C |
| Medium temperature range [°C] [min] | -10 °C |
| Medium temperature range [°F] [max] | 194 °F |
| Medium temperature range [°F] [min] | 14 °F |
| Number of ways | 2/2 |
| Operation | Servo-operated (diaphragm) |
| Orifice size [mm] | 10 mm |
| Orifice size fraction [in] | 3/8 in |
| Packing format | Multi pack |
| Parts Program name | EV220B 6 - 22 |
| Power consumption [W] 50Hz | 11 W |
| Product accessories | Solenoid coil accessories Solenoid valve accessories |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | f440c2c1-98fa-405b-9256-d9b24590a97e |
| Seal Material | NBR |
| Serviceable | Solenoid valve spare parts |
| Specification key | EV220B 10B G 38N NC000 BB024AS |
| Supply voltage 50Hz Max [V] | 24 V |
| Supply voltage [V] AC | 24 V |
| Type | EV220B |
| Type designation | EV220B 10 |
| Actuator | B |
| Actuator size | 13.5 mm |
| Actuator size [in] | 0.53 in |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature max. [°C] | 80 °C |
| Ambient temperature max. [°F] | 176 °F |
| Application | Open |
| Approval | CE DNVGL-CG-0339 UKCA |
| Body material | Brass |
| Coil option | Clip-on |
| Coil type | BB |
| Connection Internal/External | Internal |
| Connection material | Brass |
| Connection size [in] | 3/8 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Cv value [gal/min] | 1.75 gal/min |
| Differential pressure [bar] [max] | 20 bar |
| Differential pressure [bar] [min] | 0.1 bar |
| Differential pressure [psi] [max] | 290 psi |
| Differential pressure [psi] [min] | 1.45 psi |
| Electrical connection | Spade DIN 43650-A |
| Enclosure rating IP | IP65 |
| Est. time to close, water [ms] | 300 ms |
| Est. time to open, water [ms] | 50 ms |
| EU RoHS compliance | Yes with exemptions |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Frequency [Hz] | 50 Hz |
| Function | NC |
| In scope of WEEE and contain batteries | No |
| Kv value [m³/h] | 1.5 m³/h |
| Max media viscosity [cSt] | 50 cSt |
| Max. test pressure [bar] | 30 bar |
| Max. test pressure [psig] | 435 psig |
| Max. Working Pressure [bar] | 20 bar |
| Max. Working Pressure [psig] | 290 psig |
| Media recommendations | Water,Brine,Oil,Air |
| Media tolerance comments | Neutral media |
| Medium temperature range [°C] [max] | 90 °C |
| Medium temperature range [°C] [min] | -10 °C |
| Medium temperature range [°F] [max] | 194 °F |
| Medium temperature range [°F] [min] | 14 °F |
| Number of ways | 2/2 |
| Operation | Servo-operated (diaphragm) |
| Orifice size [mm] | 10 mm |
| Orifice size fraction [in] | 3/8 in |
| Packing format | Multi pack |
| Parts Program name | EV220B 6 - 22 |
| Power consumption [W] 50Hz | 11 W |
| Product accessories | Solenoid coil accessories Solenoid valve accessories |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | f440c2c1-98fa-405b-9256-d9b24590a97e |
| Seal Material | NBR |
| Serviceable | Solenoid valve spare parts |
| Specification key | EV220B 10B G 38N NC000 BB024AS |
| Supply voltage 50Hz Max [V] | 24 V |
| Supply voltage [V] AC | 24 V |
| Type | EV220B |
| Type designation | EV220B 10 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS Fluid Control, Pressure and Temperature Monitoring and Control EN .pdf | 29 Mbytes |
|
| PDF Directional Control Valves Technical Information EN.pdf | 8 Mbytes |
|
| PDF Solenoid valves overview 2024 EN.pdf | 2 Mbytes |
|
| PDF solenoid valves EN.pdf | 2 Mbytes |
|
