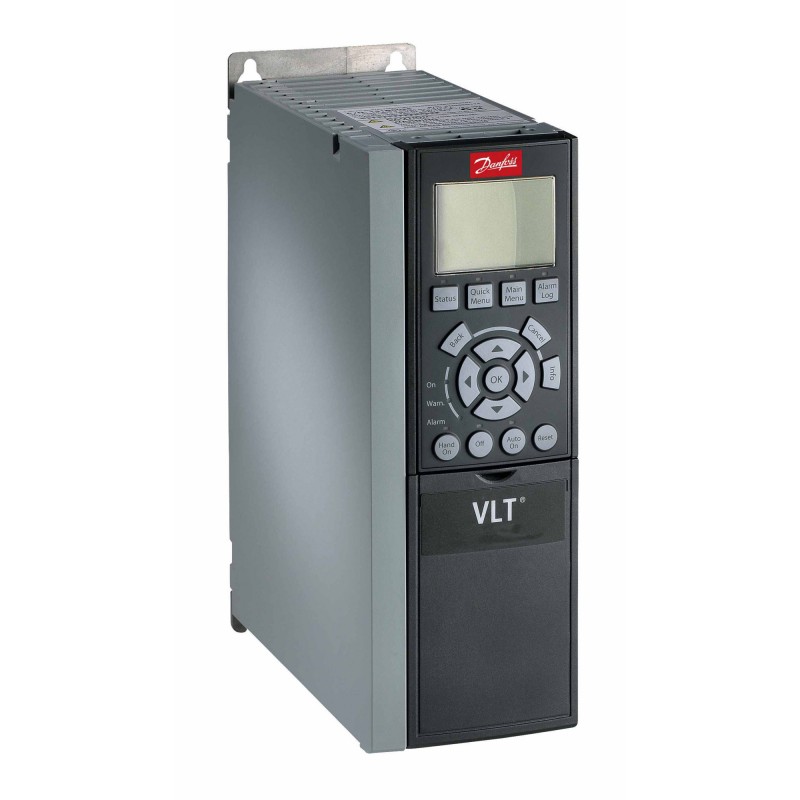

136Z1298 FC-302P4K0T5E20H1BGXXXXSXXXXA8B7CXXXXDX DANFOSS DRIVES VLT® AutomationDriveAutomationDrive Advanced..
136Z1298
FC-302P4K0T5E20H1BGXXXXSXXXXA8B7CXXXXDX
DANFOSS DRIVES
VLT® AutomationDriveAutomationDrive Advanced 4.0kW, (T) Three-phase 380-500V, (B) Brake chopper, IP20, (H1) RFI class A1 / B (C1), (A8) EtherCAT, (B7) MCB-151 HTL safe option , (X) PCB uncoated, (X) No power option. FC-302P4K0T5E20H1BGXXXXSXXXXA8B7CXXXXDX
FC-302P4K0T5E20H1BGXXXXSXXXXA8B7CXXXXDX
Frequency converter. FC-302P4K0T5E20H1BGXXXXSXXXXA8B7CXXXXDX. VLT® AutomationDrive FC-302. (P4K0) 4.0 KW / 5.0 HP, Three phase. 380 - 500 VAC, (E20) IP20 / Chassis. (H1) RFI Class A1/B (C1). Brake chopper. Graphical Loc. Cont. Panel. Not coated PCB, No Mains Option. Latest release std. SW.. Frame: A2. No C1 option, No D option. EtherCAT MCA 124, MCB-151 Safe Option HTL. Other options according to Model code
VLT AUTOMATIONDRIVE FC 302 - DANFOSS DRIVES > VLT AutomationDrive FC 302 IP54/55 - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Product details
| Gross weight | 5.2 kg | ||
| Net weight | 4.9 kg | ||
| Volume | 19.867 l | ||
| EAN | 5714853201358 |
VLT® AUTOMATIONDRIVE FC 300 SERIES
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AutomationDrive FC- | |
| Series | 302 | 302 | |
| Power Rating | P4K0 | (P4K0) 4.0 KW / 5.0 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 5 | 380 - 500 VAC | |
| Enclosure | E20 | (E20) IP20 / Chassis | |
| RFI Filter | H1 | (H1) RFI Class A1/B (C1) | |
| Brake - Safe Stop | B | Brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | X | Not coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | A8 | EtherCAT MCA 124 | |
| B Option | B7 | MCB-151 Safe Option HTL | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | A2 | A2 | |
| Typecode Part 1 | FC-302P4K0T5E20H1BGX | ||
| Typecode Part 2 | XXXSXXXXA8B7CXXXXDX | ||
| Product Catalog | GLBL | Global (Standard) | |
| Power 160% (HO) [KW] | 4 | ||
| Height [mm] | 268,0 | ||
| Width w/ no C options [mm] | 90,0 | ||
| Width w/ two C options [mm] | 150,0 | ||
| Depth [mm] | 205,0 | ||
| Depth with Option A/B [mm] | 220,0 | ||
| kVA | 6.93 | ||
| Power Loss HO [W] | 124 | ||
| Power Loss HO [W] | 124 | ||
| Continuous Current (HO) [A] | 10 | ||
| Intermittent Current (HO) [A] | 16 | ||
| Continuous Current (HO) [A] | 8.2 | ||
| Intermittent Current (HO) [A] | 13.1 | ||
| Calculated Gross Weight [kg] | 5.36 | ||
| Calculated Net Weight [kg] | 4.84 | ||
| ECCN EU | X.A.I.003 | ||
| ECCN US | 3A999 | ||
| Plant from Orderline | B901 | ||
| Vendor | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-302P4K0T5E20H1BGX | ||
| Modelcode02 | XXXSXXXXA8B7CXXXXDX |
