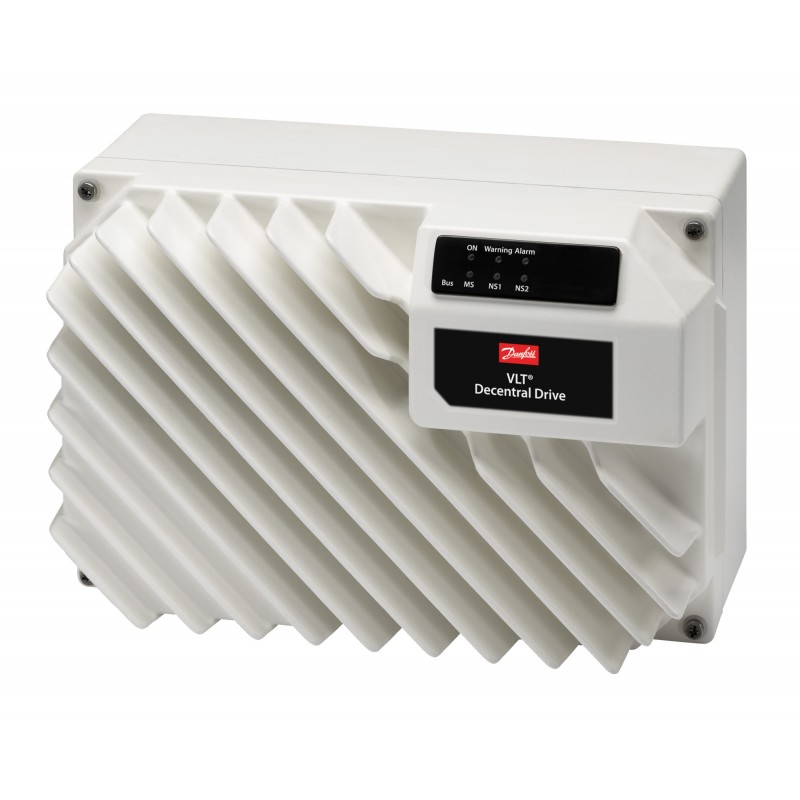

131X6046 FCD302PXXXT4W66H1SREMXCXXXXXAXBXXXXXXDX DANFOSS DRIVES VLT Decentral Drive FCD 302 Installation box..
131X6046
FCD302PXXXT4W66H1SREMXCXXXXXAXBXXXXXXDX
DANFOSS DRIVES
VLT Decentral Drive FCD 302 Installation box only, 380-480VAC (Three phased), Standard White IP66/NEMA4X, RFI Class A1/C2, Brake chopper + mechanical brake, Inst.box small stand alone, Flat brackets, Metric threads, No switch option, With display connector FCD302PXXXT4W66H1SREMXCXXXXXAXBXXXXXXDX
FCD302PXXXT4W66H1SREMXCXXXXXAXBXXXXXXDXVLT® Decentral Drive FCD 302Installation box only, 380-480VAC (Three phased), Standard White IP66/NEMA4X,RFI Class A1/C2, Brake chop. + mech. brake, Inst.box small stand alone, Flat brackets,Metric threads, No switch option, With display connector
VLT AUTOMATIONDRIVE FC 302 - DANFOSS DRIVES > VLT AutomationDrive FC 302 IP54/55 - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲FCD302PXXXT4W66H1SREMXCXXXXXAXBXXXXXXDX
VLT® Decentral Drive FCD 302
Installation box only, 380-480VAC (Three phased), Standard White IP66/NEMA4X,
RFI Class A1/C2, Brake chop. + mech. brake, Inst.box small stand alone, Flat brackets,
Metric threads, No switch option, With display connector
Product details
| Gross weight | 3.3 Kilogram | ||
| Net weight | 3 Kilogram | ||
| EAN | 5710107250288 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FCD | VLT® DecentralDrive FCD | |
| VLT Series | 302 | 302 | |
| Power Rating | PXXX | Installation box only | |
| Mains Voltage | T4 | 380-480VAC (Three phased) | |
| Enclosure | W66 | Standard White IP66/NEMA4X | |
| RFI Filter | H1 | RFI Class A1/C2 | |
| Brake | S | Brake chop. + mech. brake | |
| Hardware Configuration | R | Inst.box small stand alone | |
| Brackets | E | Flat brackets | |
| Threads | M | Metric threads | |
| Switch Option | X | No switch option | |
| Display | C | With display connector | |
| Sensor Plugs | X | No sensor plugs | |
| Motor Plug | X | No motor plug | |
| Mains Plug | X | No mains plug | |
| Fieldbus Plug | X | No fieldbus plug | |
| Reserved | X | Reserved | |
| A Option | AX | No fieldbus option | |
| B Option | BX | No B option | |
| Reserved for SW | XXXXX | Reserved for SW | |
| D Option | DX | No option | |
| FCD302 Frame Size | MF1 | (MF1) MF1 | |
| Typecode Part 1 | FCD302PXXXT4W66H1SREMXCXXXXX | ||
| Typecode Part 2 | AXBXXXXXXDX | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Calculated Gross Weight [kg] | 3.3 | ||
| Calculated Net Weight [kg] | 3 | ||
| Vendor | ERR01 | Cannot Determine Vendor | |
| Producing plant | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FCD302PXXXT4W66H1SREMXCXXXXX | ||
| Modelcode02 | AXBXXXXXXDX | ||
| Delivering plant | ERR01 | ERR01 |
