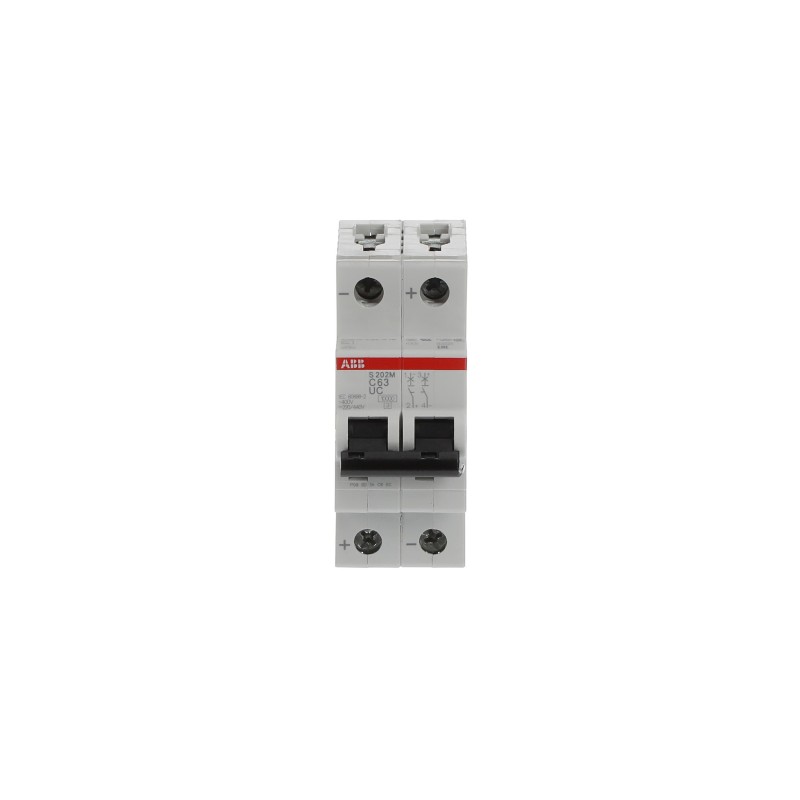

Miniature Circuit Breaker S200MUC, 2P, C, 63A
Industrial > S200M-UC
* Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Identifier | Qty | Unit Of Measure | Type | Description |
---|---|---|---|---|
2CCA880100R0001 |
1 | piece | CMS-100PS | CMS-100PS Sensor |
2CCA880101R0001 |
1 | piece | CMS-101PS | CMS-101PS Sensor |
2CCA880102R0001 |
1 | piece | CMS-102PS | CMS-102PS Sensor |
2CDS200909R0001 |
1 | piece | S2C-A1 | S2C-A1 - Shunt Trip |
2CDS200909R0002 |
1 | piece | S2C-A2 | S2C-A2 - Shunt Trip |
2CDS200912R0001 |
1 | piece | S2C-H6R | S2C-H6R - Auxiliary Contact |
2CDS200918R0001 |
1 | piece | S2C-NT | S2C-NT - Hand Operated Neutral |
2CDS200922R0001 |
1 | piece | S2C-S/H6R | S2C-S/H6R - Signal / Auxiliary Contact |
2CDS200936R0001 |
1 | piece | S2C-H11L | S2C-H11L - Auxiliary Contact |
2CDS200936R0002 |
1 | piece | S2C-H20L | S2C-H20L - Auxiliary Contact |
2CDS200936R0003 |
1 | piece | S2C-H02L | S2C-H02L - Auxiliary Contact |
2CDS200946R0001 |
1 | piece | S2C-H6-11R | S2C-H6-11R - Auxiliary Contact |
2CDS200946R0002 |
1 | piece | S2C-H6-20R | S2C-H6-20R - Auxiliary Contact |
2CDS200946R0003 |
1 | piece | S2C-H6-02R | S2C-H6-02R - Auxiliary Contact |
2CDS200970R0001 |
1 | piece | S2C-H01 | S2C-H01 - Auxiliary Contact |
2CDS200970R0002 |
1 | piece | S2C-H10 | S2C-H10 - Auxiliary Contact |
2CSS200911R0001 |
1 | piece | S2C-UA 12 DC | S2C-UA 12 DC - Undervoltage release |
2CSS200911R0002 |
1 | piece | S2C-UA 24 AC | S2C-UA 24 AC - Undervoltage release |
2CSS200911R0003 |
1 | piece | S2C-UA 48 AC | S2C-UA 48 AC - Undervoltage release |
2CSS200911R0004 |
1 | piece | S2C-UA 110 AC | S2C-UA 110 AC - Undervoltage release |
2CSS200911R0005 |
1 | piece | S2C-UA 230 AC | S2C-UA 230 AC - Undervoltage release |
2CSS200911R0006 |
1 | piece | S2C-UA 400 AC | S2C-UA 400 AC - Undervoltage release |
2CSS200911R0007 |
1 | piece | S2C-UA 24 DC | S2C-UA 24 DC - Undervoltage release |
2CSS200911R0008 |
1 | piece | S2C-UA 48 DC | S2C-UA 48 DC - Undervoltage release |
2CSS200911R0009 |
1 | piece | S2C-UA 110 DC | S2C-UA 110 DC - Undervoltage release |
2CSS200911R0010 |
1 | piece | S2C-UA 230 DC | S2C-UA 230 DC - Undervoltage release |
2CSS200998R0001 |
1 | piece | S2C-BP | S2C-BP - Mechanical tripping device |
2CSS200999R0001 |
1 | piece | S2C-EST | S2C-EST - Plug-in base |
2CSS201997R0013 |
1 | piece | S2C-CM1 | S2C-CM1 - Motor operating device |
2CSS203997R0013 |
1 | piece | S2C-CM2/3 | S2C-CM2/3 - Motor operating device |
2CSS204997R0013 |
1 | piece | S2C-CM4 | S2C-CM4 - Motor operating device |
GHS2001901R0003 |
1 | piece | S2C-DH | S2C-DH - Mechanical Accessories |
Minimum Order Quantity: | 1 piece |
Customs Tariff Number: | 85362010 |
Data Sheet, Technical Information: |
2CDC002142D0207 |
Instructions and Manuals: |
2CDC002142D0207 |
Product Net Width: | 35 mm |
Product Net Depth / Length: | 69 mm |
Product Net Height: | 88 mm |
Product Net Weight: | 0.25 kg |
Standards: | IEC/EN 60898-2 IEC/EN 60947-2 |
Number of Poles: | 2 |
Tripping Characteristic: | C |
Rated Current (In): | 63 A |
Rated Operational Voltage: | acc. to IEC 60898-1 400 V AC acc. to IEC 60898-1 440 V DC acc. to IEC 60898-2 400 V AC acc. to IEC 60898-2 440 V DC acc. to IEC 60947-2 440 V AC acc. to IEC 60947-2 440 V DC |
Power Loss: | 11.18 W at Rated Operating Conditions per Pole 5.59 W |
Rated Insulation Voltage (Ui): | acc. to IEC/EN 60664-1 484 V |
Operational Voltage: | Maximum (Incl. Tolerance) 440 V AC Maximum (Incl. Tolerance) 500 V DC Maximum 440 V AC Maximum 500 V DC Minimum 12 V AC Minimum 12 V DC |
Rated Frequency (f): | DC 50 Hz 60 Hz |
Rated Short-Circuit Capacity (Icn): | (253 V AC) 10 kA (400 V AC) 10 kA (440 V DC) 10 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu): | (220 V DC) 25 kA (440 V AC) 6 kA (440 V DC) 10 kA |
Rated Service Short-Circuit Breaking Capacity (Ics): | (220 V DC) 20 kA |
Energy Limiting Class: | 3 |
Overvoltage Category: | III |
Pollution Degree: | 2 |
Rated Impulse Withstand Voltage (Uimp): | 4 kV (6.2 kV @ sea level) (5.0 kV @ 2000 m) |
Dielectric Test Voltage: | 50 / 60 Hz, 1 min: 2 kV |
Housing Material: | Insulation Group I, RAL 7035 |
Actuator Type: | Insulation group II, black, sealable |
Contact Position Indication: | Red ON / Green OFF |
Degree of Protection: | IP20 |
Remarks: | IP40 in enclosure with cover; Please note polarity of device |
Electrical Endurance: | 10000 AC cycle |
Mechanical Endurance (Nendu): | 20000 cycle |
Terminal Type: | Screw Terminals |
Screw Terminal Type: | Failsafe Bi-directional Cylinder-lift Terminal |
Connecting Capacity: | Busbar 10 / 10 mm² Flexible with Ferrule 0.75 ... 25 mm² Flexible 0.75 ... 25 mm² Rigid 0.75 ... 35 mm² Stranded 0.75 ... 35 mm² |
Tightening Torque: | 2.8 N·m |
Recommended Screw Driver: | Pozidriv 2 |
Mounting on DIN Rail: | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
Mounting Position: | Any |
Ambient Air Temperature: | Operation -25 ... +55 °C Storage -40 ... +70 °C |
Resistance to Shock acc. to IEC 60068-2-27: | 25g / 2 shocks / 13 ms |
Resistance to Vibrations acc. to IEC 60068-2-6: | 5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In |
Environmental Conditions: | 28 cycles with 55 °C / 90-96 % and 25 °C / 95-100 % |
Maximum Operating Voltage UL/CSA: | 480Y/277 V AC 500 V DC |
Connecting Capacity UL/CSA: | Busbar 14-8 AWG Conductor 14-4 AWG |
Tightening Torque UL/CSA: | 25 in·lb |
Interrupting Rating acc. to UL1077: | (220 V AC) 10 kA (277 V AC) 6 kA (440 V DC) 10 kA (480Y / 277 V AC) 10 kA (500 V DC) 10 kA |
Declaration of Conformity - CE: |
2CDK400583D2702 |
Environmental Information: |
2CDK400030D201 |
Instructions and Manuals: |
2CDC002142D0207 |
Package Level 1 Units: | 5 piece |
Package Level 1 Width: | 92 mm |
Package Level 1 Depth / Length: | 58 mm |
Package Level 1 Height: | 80 mm |
Package Level 1 Gross Weight: | 1.3 kg |
Package Level 1 EAN: | 4013614424199 |
Package Level 2 Units: | 60 piece |
Package Level 2 Width: | 275 mm |
Package Level 2 Depth / Length: | 395 mm |
Package Level 2 Height: | 210 mm |
Package Level 2 Gross Weight: | 16 kg |
Package Level 2 EAN: | 4013614444548 |
Object Classification Code: | F |
ETIM 4: | EC000042 - Miniature circuit breaker (MCB) |
ETIM 5: | EC000042 - Miniature circuit breaker (MCB) |
ETIM 6: | EC000042 - Miniature circuit breaker (MCB) |
ETIM 7: | EC000042 - Miniature circuit breaker (MCB) |
eClass: | 7.0 27141901 |
UNSPSC: | 39121614 |
