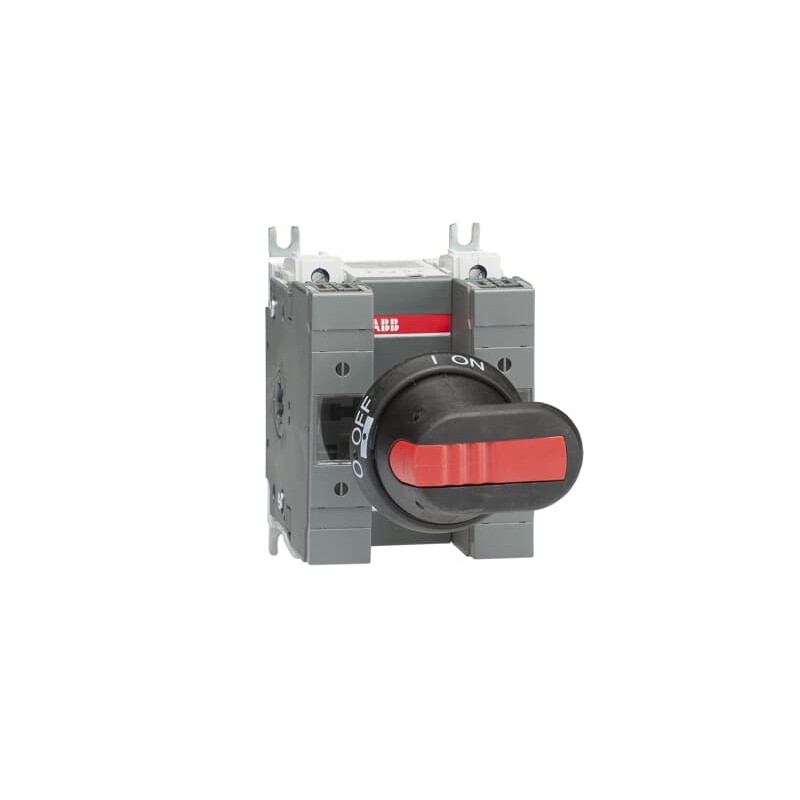

1SCA116711R1001 ABB Fuse switch OS63GD11P
1SCA116711R1001
ABB
Fuse switch OS63GD11P
OS63GD11P SWITCH FUSE
Low-voltage industrial components > Fuse switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311048M0201 |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 4361bf6d-eaed-4c5b-b681-7b96bc529073 Finland |
| Simplified SCIP | 988cda63-714c-46f2-9607-2165e8cc2804 Germany |
| ed729259-e1bb-4fa9-8113-b84da20c5ad7 Belgium | |
| 64ccda1c-e26f-48a1-9f54-a8eac2e13044 Spain | |
| 37f27ea4-21d2-4c9a-b99c-87deb14688ce Hungary | |
| 931f57a3-ac0b-4113-8f16-748325202f5e Estonia | |
| f4a5a476-f50f-439f-a9c7-bced5aeff40e France | |
| 1f8eb279-3807-4e8d-aa64-1d8aecaba70b Poland | |
| 98fcce28-33e4-48cc-9a32-ee17cd265c74 Sweden | |
| 6bef728f-6b0d-44dc-afea-223e3586ed42 Greece | |
| 77f663ce-f9fe-47e3-ac05-234d01278778 Bulgaria | |
| e6cb36e9-b50e-45bd-91d5-94758efa39f9 Hungary | |
| 613e8847-0a16-487b-9fcc-7c8dc2619922 Portugal | |
| b7926e30-c722-417f-9463-2c412c0931ae Netherlands | |
| 01f62570-4b48-4cd8-b335-70735e3e4f92 Poland | |
| dd5acc0e-66c4-4bf8-a166-b1c04753da8e Czech Republic | |
| e010b6b4-a848-47ff-bfd4-1d2b6cec8a5c Croatia | |
| 4747a1aa-dc5a-420b-88a9-b2bcc8c4cd37 Germany | |
| c2f796ed-eb90-4272-b478-012fefd6c39c Sweden | |
| 78c1136c-5c01-4566-b9fd-ad5d265a098c Germany | |
| 6380c921-6884-4832-8bc8-bf55f90a5840 Denmark | |
| 9e2d646f-b59b-401d-8a2d-dd3198a54304 Norway | |
| cb9e3fb2-bce4-4c8d-a34c-0f9f3669f85c Belgium | |
| f675fcfa-15e7-4357-90ba-4bc9f49aa224 Germany | |
| 681948f7-b219-4db3-ba1a-9af849647f7b Italy | |
| 559e4c8b-aa34-4478-a67c-da44c110f8a2 Germany | |
| b1adaecc-29f0-4445-96ee-ad7fd3943811 Poland | |
| 5c45b706-1e53-4c40-8520-f89095524d6d France | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311036M0212 |
| Mechanical Drawings | OS32-63G_D_B_11.stp |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 91 mm |
| Product Net Height | 112 mm |
| Product Net Depth / Length | 121 mm |
| Product Net Weight | 0.915 kg |
| 2.02 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 190 mm |
| 7.5 in | |
| Package Level 1 Height | 145 mm |
| 5.7 in | |
| Package Level 1 Gross Weight | 1 kg |
| 2.2 lb | |
| Package Level 1 EAN | 6417019487083 |
| Technical | |
| Cable Cross-Section | 2.5 ... 25 mm² |
| Connecting Capacity | Stranded 2.5 … 25 mm² |
| Flexible 2.5 … 25 mm² | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 63 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 63 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | NH000 |
| Fuse System | DIN |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 2P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Current 2 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 63 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 63 A |
| (690 V) 63 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 63 A |
| (690 V) 63 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 63 A |
| (690 V) 63 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 18.5 kW |
| (400 V) 30 kW | |
| (415 V) 30 kW | |
| (500 V) 37 kW | |
| (690 V) 55 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 11 (Between the Poles) |
| Terminal Type | Screw Terminals |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Technical UL/CSA | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311208D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS32-63G_ 2016.pdf |
| Declaration of Conformity - CE | 1SCC311136D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as safety switch (EF006985) | Yes |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated permanent current Iu (EF001389) | 63 A |
| Rated operation power at AC-23, 400 V (EF007027) | 55 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 80 kA |
| Rated short-time withstand current lcw (EF007050) | 2.5 kA |
| Suitable for fuses (EF006692) | NH000 |
| Number of poles (EF001391) | 2 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Cable entry (EF000537) | Other |
| Equipped with connectors (EF011696) | Yes |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | No |
| Suitable for busbar mounting (EF007259) | Yes |
| Type of control element (EF006976) | Long turning handle |
| Position control element (EF009410) | Front |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
