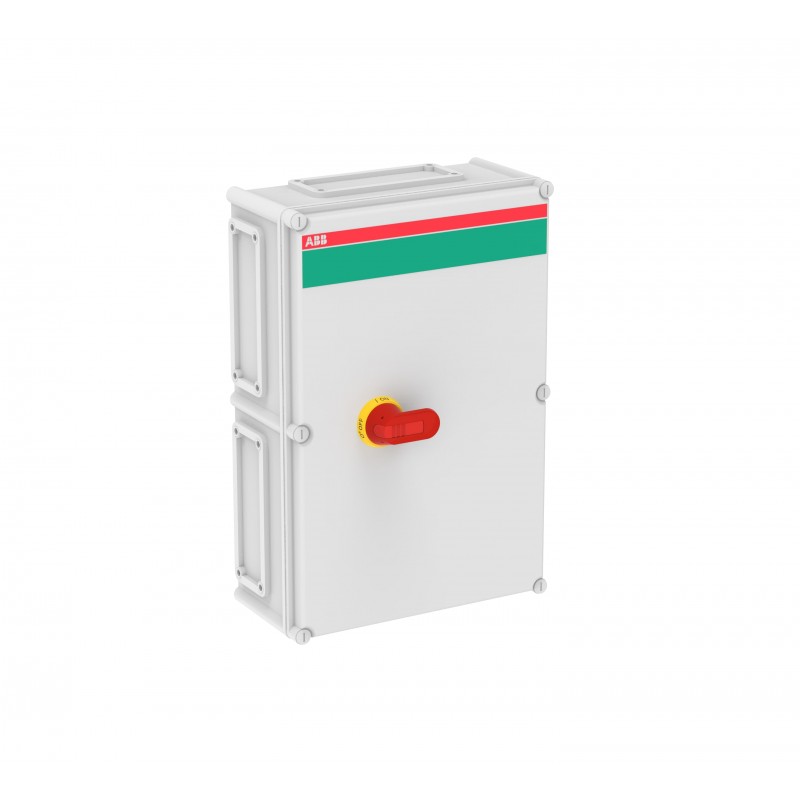

1SCA022833R9950 ABB Int. Disconnector in box OT200KFCC3BA
1SCA022833R9950
ABB
Int. Disconnector in box OT200KFCC3BA
Int. Box Disconnector OT200KFCC3BA
OT200KFCC3BA Encl. Switch Disconnector
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | dcaf426f-842d-4679-8d32-5b80a10e4ff3 Finland |
| Simplified SCIP | 4a34c9f1-556d-4e12-9f49-e58c7320f910 Germany |
| c5c6c8ab-58d5-4f1f-99a4-9a0fcc18b0e1 Czech Republic | |
| 1c17f81d-d029-4003-9a70-d9f2839c502b Netherlands | |
| 7fa767f2-33e7-42f4-9ab3-0f1cf6437321 Portugal | |
| c3c5a8b5-0032-4a38-9b03-4ad1fb7185f4 Bulgaria | |
| 8519b0fd-712f-4a3a-863c-1a5bb6c5964d Sweden | |
| 894f1b49-41ff-4c4d-a302-d3d0409e92d1 France | |
| ea79dcdf-912a-4700-aad3-ed7d4cc25743 Germany | |
| 855f63c6-a940-428e-b92b-62cf82b3534a Germany | |
| b43b3fdc-b40f-43d7-aeb3-b8e399813754 Sweden | |
| b5589506-dd71-4981-aea5-899fb44e48a3 France | |
| 54642a3a-a073-4882-a9d9-5ae6fe75f46d Poland | |
| 69d36f77-b7eb-4c84-80dd-37c8202b8741 Italy | |
| cd54417f-856c-49b6-964a-42d9ec94d476 Greece | |
| 30c469df-be28-48a4-92be-34b219bbc3dc Spain | |
| 6f0f17fc-01d9-4864-baee-da016cdd8b58 Norway | |
| 252dc8bd-c53e-4736-9d67-b8007694ab72 Poland | |
| 8c4ff279-b8dd-471c-a6d5-44d4cacc9175 Belgium | |
| 07b362be-f8db-4312-a2b1-fada40af1a1a Estonia | |
| f4448cc9-3a8f-429c-9149-20b4ae4ef684 Belgium | |
| 97fb21c7-903a-4a44-9b7b-7cc37517a49a Hungary | |
| e0f0c9f3-f9b3-4a7b-9f7d-823906b42812 Poland | |
| aab2b99a-d2e5-421d-97db-03b022c0da6a Hungary | |
| 787a9521-afd4-48ed-a9fe-efbfae448817 Croatia | |
| 11aae702-3670-4f48-807c-27aaba570ee2 Denmark | |
| feaf314c-f7f4-458e-b69e-71be0e79a3f5 Germany | |
| e6d9c344-51fc-4851-9878-b1990a7a3865 Germany | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340015M0004 |
| Mechanical Drawings | OTPK563818PII.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 380 mm |
| Product Net Height | 560 mm |
| Product Net Depth / Length | 180 mm |
| Product Net Weight | 7.066 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 710 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 9 kg |
| Package Level 1 EAN | 6417019289366 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | II-flange / II-flange |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm |
| Screw Clamp / PE Terminal 2pc,10 ... 70 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Handle Color | Red / Yellow |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Detachable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 4 W |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (690 V) 200 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 110 kW |
| (500 V) 132 kW | |
| (690 V) 160 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 22 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M8 |
| Tightening Torque | Main Circuit 22 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340025D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG TRANSFER SWITCHES 2023 EN.pdf | 42 Mbytes |
|
