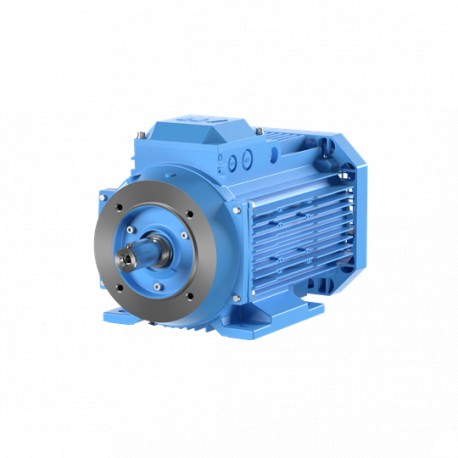

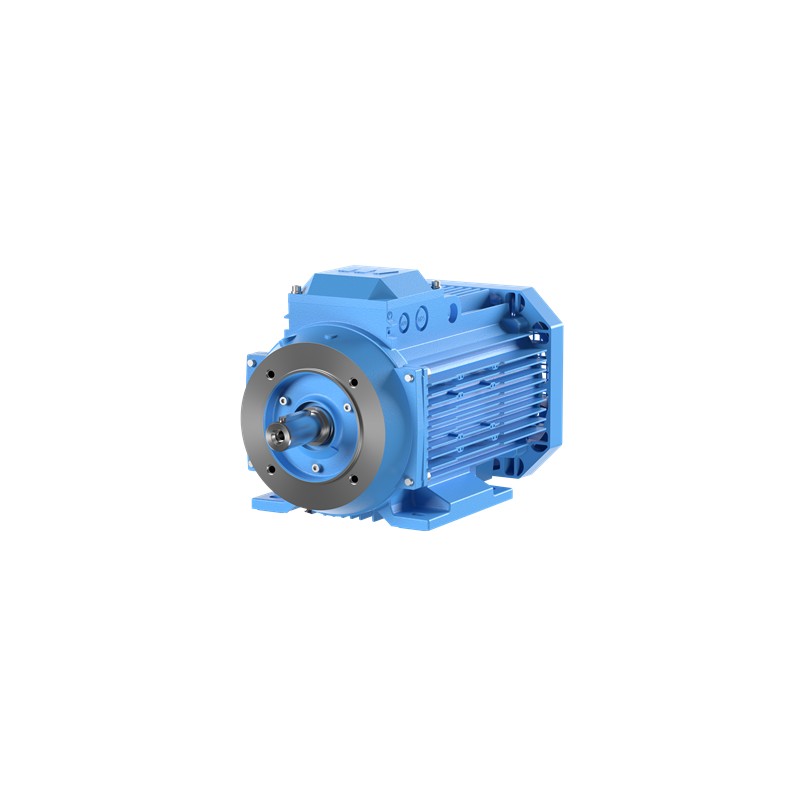

M3AA 80 B 2 3GAA081612-BDJ ABB Aluminium motor for Process Performance 0,75kW 400/690V, IE3, 2P, mounting B5..

Additional Information

• ABB Type Designation:

  M3AA 80B 2


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6204-2Z/C3


• Bearing NDE:

  6203-2Z/C3


• Country of Origin:

  Sweden (SE)
  Romania (RO)
  Poland (PL)


• Customs Tariff Number:

  85015100


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor
  D	--	50 Hz	400 V	0.75 kW	2884 r/min	1.75 A	0.760
  Y	--	50 Hz	690 V	0.75 kW	2882 r/min	1.00 A	0.770
  D	--	50 Hz	415 V	0.75 kW	2892 r/min	1.82 A	0.710

• Gross Weight:

  0kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE3
  Full Load (100%) 80.7 %
  Partial Load (75%) 80.0 %
  Partial Load (50%) 76.4 %


• IM Class:

  IMB5 IM3001


• IP Class:

  IP55


• Insulation Class:

  ICLF


• Invoice Description:

  M3AA 80B 2


• Made To Order:

  No


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  2


• Order Multiple:

  1 piece


• Package Level 1 Units:

  0 carton


• Product Name:

  3-Phase squirrel cage motor


• Product Net Weight:

  0kg


• Product Type:

  3AA0__M3AA_AA


• Quote Only:

  No


• Selling Unit of Measure:

  piece


• Standards:

  IEC 60034-1


• Starting of Motor:

  Direct Online


• Stocked At (Warehouses):

  Central Stock Europe


• Temperature Class Default:

  --


• Temperature Rise:

  80 K


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• Voltage Code:

  D
