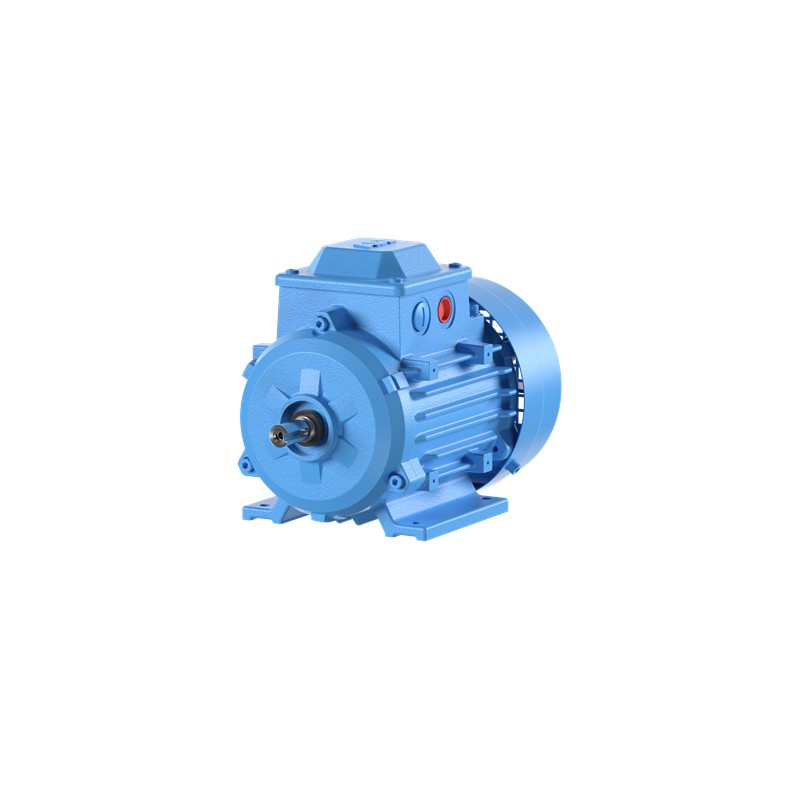

M2BAX 80 MD 3GBA081340-ADD ABB Cast iron motor for General Performance 1,1kW 400/690V, IE3, 2P, mounting B3 ..

Additional Information

• ABB Type Designation:

  M2BAX 80MD 2


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6204-2Z/C3


• Bearing NDE:

  6203-2Z/C3


• Connection Configuration:

  D


• Country of Origin:

  China (CN)


• Customs Tariff Number:

  85015220


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	690 V	1.10 kW	2862 r/min	1.37 A	0.810	82.70 %	3.67 N·m	7.50
  D	--	50 Hz	400 V	1.10 kW	2862 r/min	2.37 A	0.810	82.70 %	3.67 N·m	7.50
  Y	--	50 Hz	660 V	1.10 kW	2844 r/min	1.41 A	0.840	82.70 %	3.69 N·m	6.90
  D	--	50 Hz	380 V	1.10 kW	2844 r/min	2.45 A	0.840	82.70 %	3.69 N·m	6.90

• Frame Material:

  Cast Iron


• Frame Size:

  80


• Frequency (f):

  50 Hz


• Gross Weight:

  20kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE3
  Full Load (100%) 82.7 %
  Partial Load (75%) 83.1 %
  Partial Load (50%) 82.4 %


• IE Class Data (60 Hz):

  IE Class IE3
  Full Load (100%) 84.0 %
  Partial Load (75%) 83.3 %
  Partial Load (50%) 81.2 %


• IM Class:

  IMB3 IM1001


• Input Voltage (U_in):

  400 V


• Insulation Class:

  ICLF


• Invoice Description:

  M2BAX 80MD 2


• IP Class:

  IP55


• Made To Order:

  No


• Medium Description:

  1.1kW, 2 Poles, Frame Size 80, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBA081340-ADD)


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  2


• Order Multiple:

  1 piece


• Output Power:

  1.1 kW


• Package Level 1 Units:

  0 carton


• Product Name:

  3-Phase squirrel cage motor


• Product Net Depth / Length:

  309mm


• Product Net Height:

  192mm


• Product Net Weight:

  17kg


• Product Net Width:

  154mm


• Product Type:

  EBA3__M2BAX_CI


• Quote Only:

  No


• SCIP:

  d19446d4-4db6-4ddb-826d-2341a0f7dd46 Finland (FI)


• Selling Unit of Measure:

  piece


• Short Description:

  1.1kW, 2P, Frame Size 80, 3PH, 400V, 50Hz, IP55, IMB3/IM1001


• Stocked At (Warehouses):

  Menden, Germany
  Shanghai, China


• Temperature Class Default:

  --


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  D


• WEEE Category:

  5. Small Equipment (No External Dimension More Than 50 cm)
