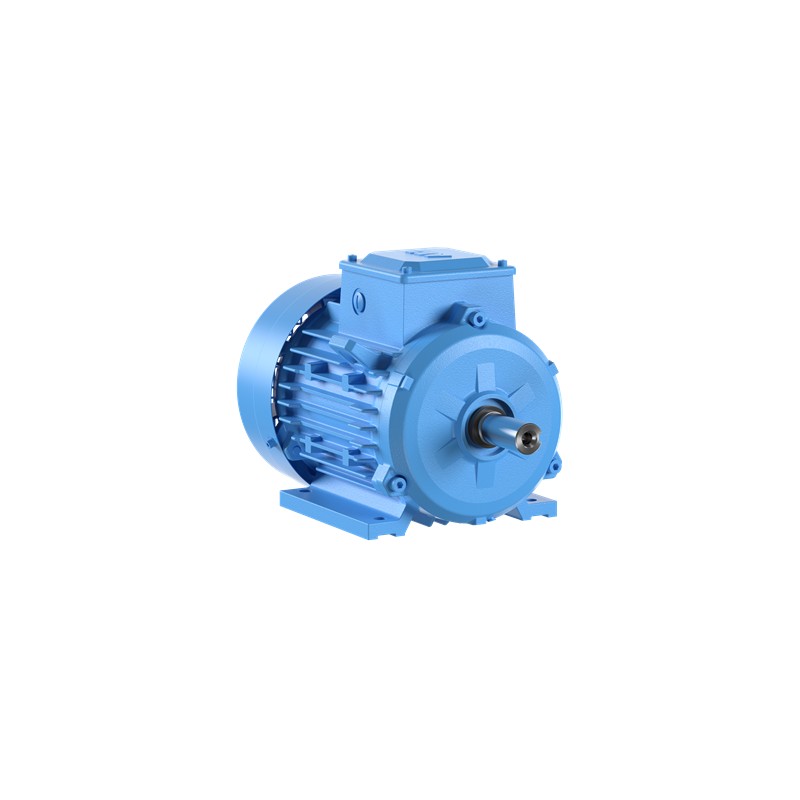

M2BAX 112 MB 2 3GBA111320-ADD ABB Cast iron motor for General Performance 4kW 400/690V, IE3, 2P, mounting B3..

Additional Information

• ABB Type Designation:

  M2BAX 112MB 2


• Bearing:

  6206-2Z/C3


• Bearing NDE:

  6205-2Z/C3


• Country of Origin:

  China (CN)


• Customs Tariff Number:

  85015220


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	--	50 Hz	690 V	4.00 kW	2904 r/min	4.19 A	0.900	88.10 %	13.19 N·m	9.30
  D	--	50 Hz	400 V	4.00 kW	2904 r/min	7.23 A	0.900	88.10 %	13.19 N·m	9.30
  Y	--	50 Hz	660 V	4.00 kW	2892 r/min	4.37 A	0.910	88.10 %	13.21 N·m	8.30
  D	--	50 Hz	380 V	4.00 kW	2891 r/min	7.59 A	0.910	88.10 %	13.21 N·m	8.30
  D	--	60 Hz	440 V	4.00 kW	3507 r/min	6.48 A	0.910	88.50 %	10.89 N·m	9.40
  D	--	60 Hz	460 V	4.00 kW	3516 r/min	6.21 A	0.910	88.50 %	10.86 N·m	10.90

• Gross Weight:

  47kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE3
  Full Load (100%) 88.1 %
  Partial Load (75%) 89.0 %
  Partial Load (50%) 89.2 %


• IE Class Data (60 Hz):

  IE Class IE3
  Full Load (100%) 88.5 %
  Partial Load (75%) 88.7 %
  Partial Load (50%) 87.9 %


• IM Class:

  IMB3 IM1001


• IP Class:

  IP55


• Insulation Class:

  ICLF


• Invoice Description:

  M2BAX 112MB 2


• Made To Order:

  No


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  2


• Order Multiple:

  1 piece


• Package Level 1 Units:

  0 carton


• Product Name:

  3-Phase squirrel cage motor


• Product Net Weight:

  42kg


• Product Type:

  EBA3__M2BAX_CI


• Quote Only:

  No


• Selling Unit of Measure:

  piece


• Stocked At (Warehouses):

  Central Stock Europe
  CSCNM


• Temperature Class Default:

  --


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Voltage Code:

  D


• WEEE Category:

  5. Small Equipment (No External Dimension More Than 50 cm)
