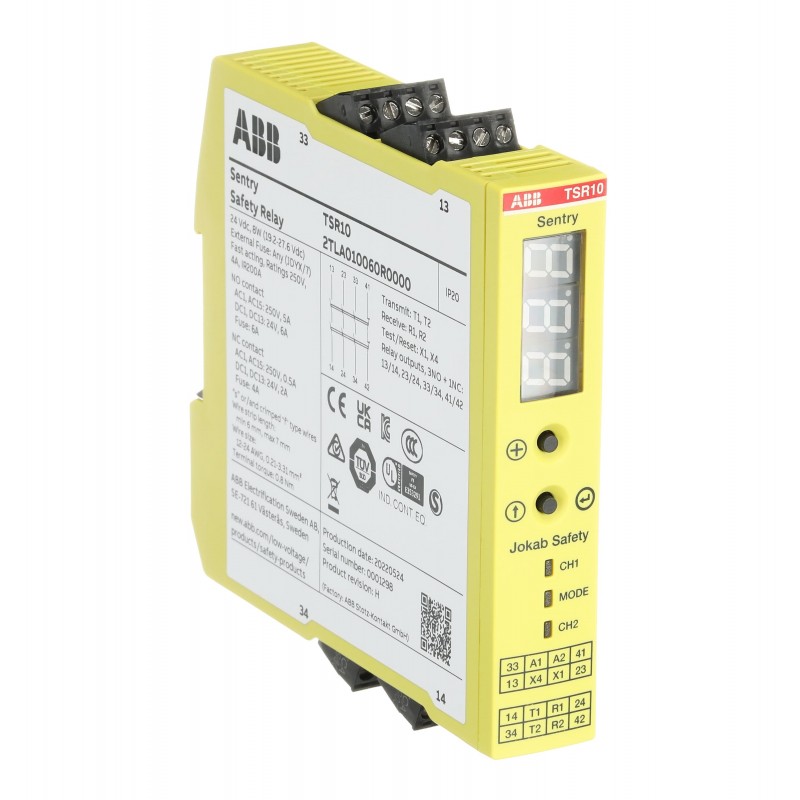

2TLA010060R0000 ABB Safety relay/timer Sentry TSR10 24VDC 3 NO + 1 NC Multifunction 0 … 999 seconds
2TLA010060R0000
ABB
Safety relay/timer Sentry TSR10 24VDC - 3 NO + 1 NC - Multifunction - 0 … 999 seconds
Sentry TSR10 24VDC
Sentry TSR10 Safety relay
Relays > Device for monitoring of safety-related circuits
Safety Relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| EAN | 7350024483345 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010037L0201 |
| Instructions and Manuals | 2TLC010069M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimension Diagram | 2TLC010001U0201 |
| Wiring Diagram | 2TLC010013T0001 |
| EPLAN Data | 9AAC188683_EPLAN |
| Marketing Video | 2TLC010019N0201 |
| 2TLC010018N0201 | |
| Dimensions | |
| Product Net Width | 22.5 mm |
| Product Net Height | 120 mm |
| Product Net Depth / Length | 120 mm |
| Product Net Weight | 0.213 kg |
| Technical | |
| Function | Safety relay for monitoring of safety devices |
| Sub-Function | Start/test input, configurable Manual/Auto reset and Timer, Display (error indication and error log) |
| Timer Relay Type | Multifunction |
| Time Range | 0 ... 999 seconds |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Rated Operational Current AC-15 (Ie) | 5 A |
| Rated Operational Current DC-13 (Ie) | 6 A |
| Degree of Protection | IP20 |
| Connecting Capacity | Crimped Pin 1x0.2...3.3 mm² |
| Crimped Pin 2x0.2...1.5 mm² | |
| Flexible with Ferrule 1x0.2...3.3 mm² | |
| Flexible with Ferrule 2x0.2...1.5 mm² | |
| Solid 1x0.2...3.3 mm² | |
| Solid 2x0.2...1.5 mm² | |
| Tightening Torque | 0.7 N·m |
| Wire Stripping Length | 6.5 mm |
| Recommended Screw Driver | M3.5 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Standards | IS0 13849 |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA | Crimped Pin 1x 24-12 AWG |
| Crimped Pin 2x 24-16 AWG | |
| Flexible with Ferrule 1x 24-12 AWG | |
| Flexible with Ferrule 2x 24-16 AWG | |
| Solid 1x 24-12 AWG | |
| Solid 2x 24-16 AWG | |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +65 °C |
| Storage -40 ... +70 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | aadead4d-6a94-4ca1-8b51-67057a607e71 Germany |
| Simplified SCIP | 010a37b9-b590-489f-ab1b-87ac6689000a Greece |
| 06e40c1e-74b5-480c-8f68-18408fd3b5bc France | |
| 0a2da250-7a78-43ca-8e09-ccbe546b30ab Estonia | |
| 3299a070-3691-4930-8889-a4507172e79e Portugal | |
| 3b229d73-7f16-4a66-9239-0c49eb7e5017 Sweden | |
| 438d2be7-1270-4e60-97e8-dda8e5063ca2 Belgium | |
| 45154b88-56ff-4228-86b8-100f7934348a Norway | |
| 46ebcdba-7f4c-45e3-9eaa-e187d6da4106 Germany | |
| 525a1699-ada1-446f-ace0-270bf5322839 Belgium | |
| 5bd8a452-499a-4e68-8259-66196bec45ad Sweden | |
| 5dab1e10-8a6f-4ab6-b9dc-c184cb03a263 Italy | |
| 633245e2-4021-40cf-b415-17336d5bedef Croatia | |
| 683042b6-25b2-4934-95b4-5764fe322bdd Poland | |
| 746ec870-75bf-4e65-8875-691478798c9e Spain | |
| 9b4ffde8-3132-4fc5-ab15-dc97022a7699 Poland | |
| 9be3de65-2dcc-4a1e-bd01-657a54951f5f Hungary | |
| a4ea605e-6123-4da3-a653-f7e69f0b0c5f Hungary | |
| b86aa34b-ffe5-4bfb-8f04-f9046257b925 Denmark | |
| c0adbbc4-a1ce-476c-8313-c9ca40f85604 Netherlands | |
| c4472f40-e30d-4fea-a529-92f2d20b5e25 Germany | |
| d085d0a0-89c8-456e-8950-7237080b50be Germany | |
| e3063db9-6709-4d3f-9012-7ceeea493112 Finland | |
| e90450ba-87fc-4f09-8e21-bb7c83ef3e24 France | |
| e99dbbbf-1652-49cd-b6aa-aa143a5665d4 Poland | |
| f643d40a-ae6e-4e70-b846-d94a66f28139 Bulgaria | |
| f9e9069a-178c-4938-b9fc-044fcd9a8aa8 Czech Republic | |
| fe53f01b-2dda-430e-8e47-02a58e908f99 Germany | |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| Certificates and Declarations | |
| CB Certificate | 2TLC010014D0201 |
| CQC Certificate | CQC2017010303977544 |
| cUL Certificate | 2TLC010006D0201 |
| cULus Certificate | 2TLC010007D0201 |
| Declaration of Conformity - CCC | 2020980303000244 |
| Declaration of Conformity - CE | 2TLC010010D0201 |
| Declaration of Conformity - UKCA | 2TLC010190D0201 |
| KC Certificate | 2TLC010048D0201 |
| TÜV Certificate | 2TLC010008D0201 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 125 mm |
| Package Level 1 Depth / Length | 31 mm |
| Package Level 1 Height | 129 mm |
| Package Level 1 Gross Weight | 0.274 kg |
| Package Level 1 EAN | 7350024483345 |
| Package Level 2 Units | 36 piece |
| Package Level 2 Width | 280 mm |
| Package Level 2 Depth / Length | 395 mm |
| Package Level 2 Height | 210 mm |
| Package Level 2 Gross Weight | 10.2 kg |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC001449 - Device for monitoring of safety-related circuits |
| ETIM 8 | EC001449 - Device for monitoring of safety-related circuits |
| ETIM 9 | EC001449 - Device for monitoring of safety-related circuits |
| eClass | V11.0 : 27371819 |
| UNSPSC | 39122331 |
| E-Number (Finland) | 2712528 |
| E-Number (Sweden) | 3860822 |
