View larger

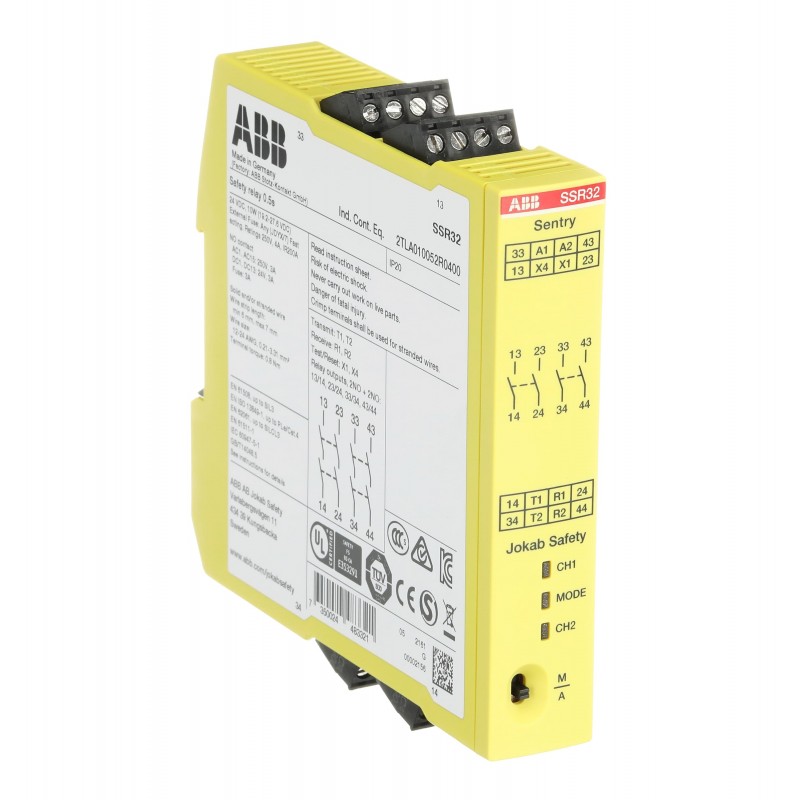

2TLA010052R0400 ABB Safety relay Sentry SSR32 24VDC 24 volt DC 2 NO + 2 NO (delayed) OFF-Delay 0.5 second
2TLA010052R0400
ABB
Safety relay Sentry SSR32 24VDC - 24 volt DC - 2 NO + 2 NO (delayed) - OFF-Delay - 0.5 second
Sentry SSR32 24VDC
Sentry SSR32 Safety relay
Relays > Device for monitoring of safety-related circuits
Safety Relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| EAN | 7350024483321 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010037L0201 |
| Instructions and Manuals | 2TLC010067M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimension Diagram | 2TLC010001U0201 |
| Wiring Diagram | 2TLC010011T0001 |
| EPLAN Data | 9AAC188686_EPLAN |
| Marketing Video | 2TLC010019N0201 |
| 2TLC010018N0201 | |
| Dimensions | |
| Product Net Width | 22.5 mm |
| Product Net Height | 120 mm |
| Product Net Depth / Length | 120 mm |
| Product Net Weight | 0.207 kg |
| Technical | |
| Function | Safety relay for monitoring of safety devices |
| Sub-Function | Start/test input, Manual/Auto reset selectable by switch |
| Timer Relay Type | OFF-Delay |
| Time Range | 0.5 second |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Rated Operational Current AC-15 (Ie) | 3 A |
| Rated Operational Current DC-13 (Ie) | 3 A |
| Degree of Protection | IP20 |
| Connecting Capacity | Crimped Pin 1x0.2...3.3 mm² |
| Crimped Pin 2x0.2...1.5 mm² | |
| Flexible with Ferrule 1x0.2...3.3 mm² | |
| Flexible with Ferrule 2x0.2...1.5 mm² | |
| Solid 1x0.2...3.3 mm² | |
| Solid 2x0.2...1.5 mm² | |
| Tightening Torque | 0.7 N·m |
| Wire Stripping Length | 6.5 mm |
| Recommended Screw Driver | M3.5 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Standards | IS0 13849 |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA | Crimped Pin 1x 24-12 AWG |
| Crimped Pin 2x 24-16 AWG | |
| Flexible with Ferrule 1x 24-12 AWG | |
| Flexible with Ferrule 2x 24-16 AWG | |
| Solid 1x 24-12 AWG | |
| Solid 2x 24-16 AWG | |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +65 °C |
| Storage -40 ... +70 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 7e585c19-1e58-41bf-821b-8365fb4c0641 Germany |
| Simplified SCIP | 081c7f42-749a-420c-8ac9-0542aca4de73 Sweden |
| 1413ff5f-d245-41a3-b893-d9dd3555145c Poland | |
| 154209ff-a10c-4aba-b5f1-f9c5fb41da5a Germany | |
| 380e6f60-c2de-4c44-9b53-f4d445155889 Denmark | |
| 444532e7-2f06-4539-b44e-cb532089f7dc Netherlands | |
| 4703b0b5-fad2-4ace-ba36-b032a312030f France | |
| 48a103ad-1d78-42c2-8e8b-f0e6dcb3bdc1 Italy | |
| 501eb449-911f-459c-9c58-e9fb0ae6dad2 Greece | |
| 60018d46-4783-45ff-8c62-51819ae05968 Bulgaria | |
| 640b5ba9-687d-428c-8e21-378bff975cb7 Portugal | |
| 65669026-8150-4297-9739-c3ce1b5ca53c Poland | |
| 6654c551-6b29-4c4e-a850-b55e4b5885d2 Germany | |
| 74c4216a-944d-4a5c-9c9b-18a47eb51f3d Croatia | |
| 7b48498f-0b39-4c48-b9ac-752b53095b5f Hungary | |
| 81e39515-299a-4208-b755-cc3b0a927db9 Poland | |
| 950b76d8-2dd3-40f7-96fb-e49e6064ea11 Belgium | |
| 9a3e2b17-23de-4d96-bb67-971fe998b90c France | |
| 9d2312ce-c7ec-4c72-a493-ff49818788c4 Estonia | |
| ae31f7e0-74a7-4e90-986b-a8a02072b21b Belgium | |
| c1eb2be8-6de3-4180-a7cd-1ba509d4faa2 Germany | |
| c4373a92-22a3-47d0-b253-8fe61188f71c Germany | |
| c6c9622a-a729-4d0f-8b24-9acecddd7e30 Hungary | |
| cf0cb612-b6d5-4406-a11e-5f99e4b59235 Spain | |
| d08ab4ee-2c09-41f3-91dd-f9553be7c002 Czech Republic | |
| ea11ef81-b090-4f67-b373-1a152ba7b2e0 Sweden | |
| f0fe5c18-eeae-425a-bf41-1e4140af6114 Norway | |
| f548cdb2-5636-43ab-9a14-059ceb1a8c6b Finland | |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| Certificates and Declarations | |
| CQC Certificate | CQC2017010303977544 |
| cUL Certificate | 2TLC010006D0201 |
| cULus Certificate | 2TLC010007D0201 |
| Declaration of Conformity - CCC | 2020980303000244 |
| Declaration of Conformity - CE | 2TLC010010D0201 |
| Declaration of Conformity - UKCA | 2TLC010190D0201 |
| KC Certificate | 2TLC010048D0201 |
| TÜV Certificate | 2TLC010008D0201 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 125 mm |
| Package Level 1 Depth / Length | 31 mm |
| Package Level 1 Height | 129 mm |
| Package Level 1 Gross Weight | 0.268 kg |
| Package Level 1 EAN | 7350024483321 |
| Package Level 2 Units | 36 piece |
| Package Level 2 Width | 280 mm |
| Package Level 2 Depth / Length | 395 mm |
| Package Level 2 Height | 210 mm |
| Package Level 2 Gross Weight | 9.9 kg |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC001449 - Device for monitoring of safety-related circuits |
| ETIM 8 | EC001449 - Device for monitoring of safety-related circuits |
| ETIM 9 | EC001449 - Device for monitoring of safety-related circuits |
| eClass | V11.0 : 27371819 |
| UNSPSC | 39122331 |
| E-Number (Finland) | 2712526 |
| E-Number (Sweden) | 3860823 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF ABB SAFETY PRODUCTS CATALOGUE EN.pdf | 42 Mbytes |
|
| 2TLA010052R0400 2TLA010052R0400 2TLA010052R0400_Sentry_SSR32_24VDC.pdf | 204 Kbytes |
|
