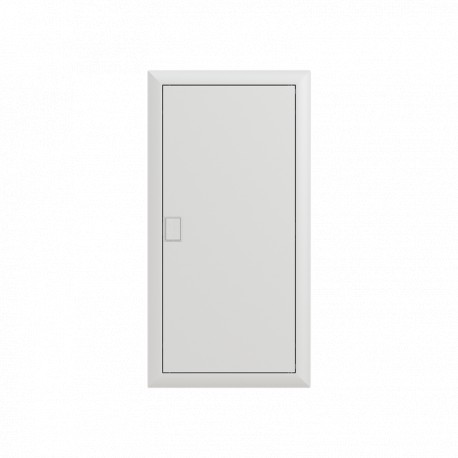

2CPX031382R9999 ABB UK648K Arm.emp.IP30,48 mód.pu.metál.s.r.
2CPX031382R9999
ABB
UK648K Arm.emp.IP30,48 mód.pu.metál.s.r.
Consumer unit UK600, Flush-/ hollow wall mounting, 48 modules, 4 row(s), IP30, Door: Single, Steel Sheet, Dimensions: 747 mm x 384 mm x 97 mm
Distribution boards > Small distribution board
Residential boxes
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Number of Rows | 4 |
| Closure Type | Push Button |
| Configuration Type | assembled with device carrier |
| Cover Plate Type | Door |
| Enclosure Type | Consumer unit |
| Door Type | Single |
| Accessories Available | Yes |
| DIN Place Units | 48 |
| Terminal Type | No Terminals |
| Electrical | |
| Rated Operational Voltage | Maximum 400 V |
| Operational Voltage | 400 V |
| Rated Current (In) | 63 A |
| Power Loss | Δt = 30K 62 W |
| Design | |
| Surface Finishing | Powder-coated |
| Housing Material | Plastic |
| Door Material | Steel Sheet |
| Cover Style | Closed |
| RAL Number | RAL 9016 - Traffic White |
| Color | Traffic white |
| Number of Modules | 48 |
| Material Compliance | |
| RoHS Declaration | 2CPC100018X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP30 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Width in Number of Modular Spacings | 12 |
| Product Net Width | 384 mm |
| Product Net Height | 747 mm |
| Product Net Depth / Length | 97 mm |
| Product Net Weight | 4.766 kg |
| Built-In Depth (t2) | 88 mm |
| Dimension Diagram | 2CPC000001D0201 |
| 2CPC000002D0201 | |
| 2CPC000007D0201 | |
| Engineering | |
| Building Information Modeling – BIM | 9AKK107046A7947 |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 4.957 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100018X0201 |
| Installation | |
| Instructions and Manuals | 2CPC129380M5601 |
| Mounting Type | Flush-/ hollow wall mounting |
| Popular Downloads | |
| External Classifications and Standards | |
| ETIM 9 | EC000214 - Small distribution board |
| ETIM 10 | EC000214 - Small distribution board |
| eClass | V11.0 : 27142409 |
| Object Classification Code | U |
| Standards | DIN 43871 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF TECHNICAL SHEET RESIDENTIAL BOXES EN.pdf | 17 Mbytes |
|
