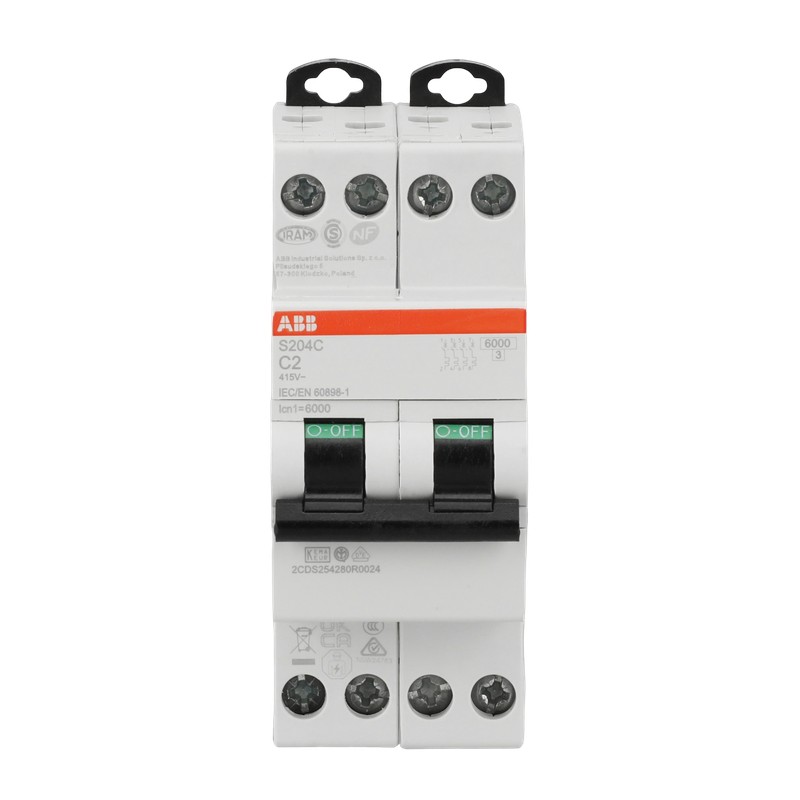

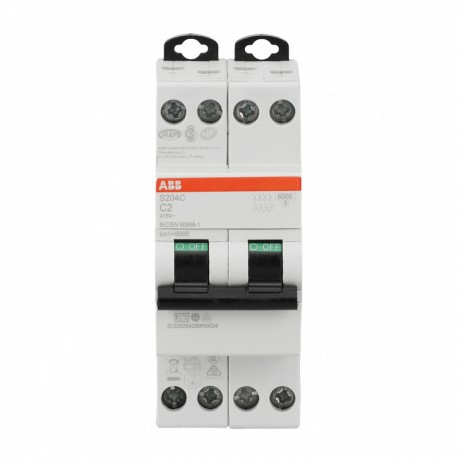

2CDS254280R0024 ABB Int.aut. S204C-C2 4 2A C 6 kA
2CDS254280R0024
ABB
Int.aut. S204C-C2 4 2A C 6 kA
Miniature circuit breaker - S200C - 4P - 2 A - C - (230 V) 6 kA
Circuit breakers and fuses > Miniature circuit breaker (MCB)
Tertiary / Industrial
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 85.36 % |
| Material Resource Reduction (wt. %) | Design for Reduced Resource Consumption - 52 % |
| Sustainable Material Content in Packaging (wt. %) | FSC 100% Cardboard - 100 % |
| Improved Energy Efficiency for Customers | Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Extended Product Lifetime | Product Durability |
| End Of Life Disassembling Instructions | 9AKK108468A3913 |
| Environmental Product Declaration - EPD | 9AKK108467A5789 |
| Technical | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V) 6 kA |
| (400 V) 6 kA | |
| Power Supply Connection | Arbitrary |
| Energy Limiting Class | 3 |
| Electrical Endurance | 10000 cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Protected Poles | 4 |
| Number of Poles | 4P |
| Options Provided | G2C accessories |
| Accessories Available | Yes |
| Connecting Capacity | Flexible 1 … 10 mm² |
| Rigid 1 … 16 mm² | |
| Electrical | |
| Tripping Characteristic | C |
| Rated Operational Voltage | acc. to IEC 60898-1 415 V |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Input Voltage Type | AC |
| Rated Current (In) | 2 A |
| Rated Short-Circuit Capacity | (230 V) 6 kA |
| (400 V) 6 kA | |
| Rated Conditional Short-Circuit Current (Inc) | (230 V) 6 kA |
| (400 V) 6 kA | |
| Rated Frequency (f) | 50/60 Hz |
| Power Loss | Total 4.4 W |
| Overvoltage Category | III |
| Material Compliance | |
| RoHS Declaration | 9AKK107492A9802 |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20191001 |
| REACH Declaration | 9AKK108468A6446 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20230918 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 30afec86-a9d7-4438-a3ef-6f6285acb35e Poland |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +55 °C |
| Degree of Protection | IP20 |
| Pollution Degree | 2 |
| Dimensions | |
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 36 mm |
| Product Net Height | 86 mm |
| Product Net Depth / Length | 70 mm |
| Product Net Weight | 0.32 kg |
| Built-In Depth (t2) | 70 mm |
| Ordering | |
| Package Level 1 Units | carton 6 piece |
| Package Level 1 Gross Weight | 1.97 kg |
| E-Number (Finland) | 3212077 |
| E-Number (Norway) | 1683438 |
| E-Number (Sweden) | 2100949 |
| Replacement Product ID (NEW) | No replacement |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK107492A9802 |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107492A9936 |
| External Classifications and Standards | |
| ETIM 9 | EC000042 - Miniature circuit breaker (MCB) |
| ETIM 10 | EC000042 - Miniature circuit breaker (MCB) |
| UNSPSC | 39121603 |
| eClass | V11.0 : 27141901 |
| IDEA Granular Category Code (IGCC) | 4899 >> Miniature circuit breaker (MCB) screw-in model |
| Object Classification Code | F |
| Standards | IEC/EN 60898-1 |
| Feature Name | Feature Value |
|---|---|
| Built-in depth (EF000218) | 70 mm |
| Release characteristic (EF000889) | C |
| Number of poles (total) (EF008618) | 4 |
| Number of protected poles (EF005548) | 4 |
| Rated current (EF000227) | 2 A |
| Rated voltage (EF000228) | 415 V |
| Rated insulation voltage Ui (EF001366) | 500 V |
| Rated impulse withstand voltage Uimp (EF011980) | 4 kV |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (EF009556) | 6 kA |
| Voltage type (EF000187) | AC |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V (EF009555) | 6 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (EF009557) | 6 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (EF009558) | 6 kA |
| Frequency (EF000416) | 50 Hz |
| Current limiting class (EF002568) | 3 |
| Flush-mounted installation (EF007517) | No |
| Concurrently switching neutral conductor (EF005997) | No |
| Over voltage category (EF002569) | 3 |
| Pollution degree (EF002570) | 2 |
| Additional equipment possible (EF008148) | Yes |
| Width in number of modular spacings (EF002950) | 2 |
| Degree of protection (IP) (EF005474) | IP20 |
| Ambient temperature during operating (EF007515) | -25 °C |
| Connectable conductor cross section multi-wired (EF007343) | 1 mm² |
| Connectable conductor cross section solid-core (EF007337) | 1 mm² |
| Explosion-proof (EF004663) | No |
