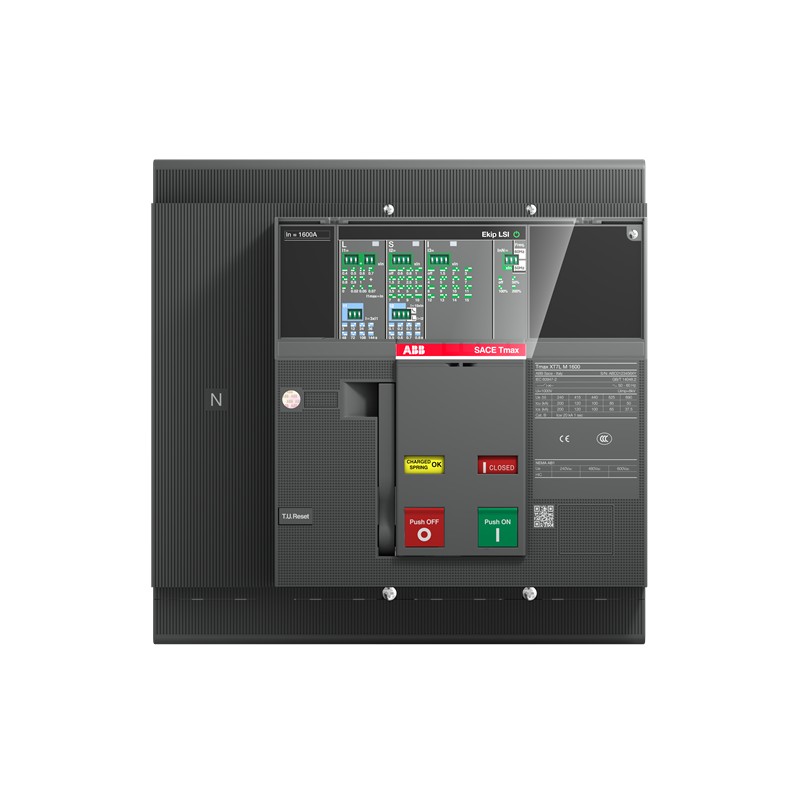

1SDA101776R1 ABB XT7L M 1250 Ekip Dip LSIG In1250A 4p F F
1SDA101776R1
ABB
XT7L M 1250 Ekip Dip LSIG In1250A 4p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2358 |
| Environmental Product Declaration - EPD | 9AKK108468A1896 |
| 9AKK108468A4411 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | ab6d7cb6-1fe0-44b9-a098-3bb66fc251d5 Italy |
| Simplified SCIP | 6475fd28-d6eb-466d-9880-93f5db5e40ea France |
| 1b3946c1-e8a7-49ae-99f8-a52934975a90 Poland | |
| be60d041-ca22-421a-b288-5eb0acf9525c Estonia | |
| 7bc5a63d-8b87-4a9f-894d-f8ef916d8fb6 Bulgaria | |
| 0c4cc17d-30c2-4b52-93c3-80c36eed126b Hungary | |
| 2ac336ca-f773-439c-bb1b-e31acc75eefe Belgium | |
| 906a8041-5d46-4efd-863c-87098ce2e864 Hungary | |
| be60d041-ca22-421a-b288-5eb0acf9525c Estonia | |
| 0c4cc17d-30c2-4b52-93c3-80c36eed126b Hungary | |
| 94b8a46a-cbaf-4c9e-a719-fdc666a0e18b Germany | |
| 48d78f37-ecf8-495d-af25-7dcac8b7cf2e Sweden | |
| 0d4e1532-3b64-47bc-b61d-44dd60a74a77 Germany | |
| ac3358c6-7971-4d2d-bdd5-117e85ca8ca9 France | |
| 83fa1e53-15d9-4808-a5a1-1789979986ea Sweden | |
| ce55a066-324e-44a6-b104-aa136ff1fc9f Poland | |
| 6245ae84-5f35-45e6-856d-68de2befd7da Greece | |
| 1b3946c1-e8a7-49ae-99f8-a52934975a90 Poland | |
| 443d3304-4974-4f20-a80a-0f9a190eaf65 Portugal | |
| dc59b39c-923d-4ef6-9d67-b324a0669714 Poland | |
| 7fb15276-18de-464f-bf33-f58a63362990 Germany | |
| e94d695e-df74-4463-b00a-9d8258b2c703 Germany | |
| dbc39a9d-01f4-4ffc-a4ab-b7292f1db57e Finland | |
| fe67fddf-3888-491b-85eb-71786aa2a50c Belgium | |
| 83fa1e53-15d9-4808-a5a1-1789979986ea Sweden | |
| 7fb15276-18de-464f-bf33-f58a63362990 Germany | |
| 95d18381-428a-4895-9a6d-a57b156e7633 Czech Republic | |
| dc59b39c-923d-4ef6-9d67-b324a0669714 Poland | |
| dbc39a9d-01f4-4ffc-a4ab-b7292f1db57e Finland | |
| 0f221c2b-0172-40c3-a534-31325ffa3f83 Spain | |
| fe67fddf-3888-491b-85eb-71786aa2a50c Belgium | |
| 2ac336ca-f773-439c-bb1b-e31acc75eefe Belgium | |
| e94d695e-df74-4463-b00a-9d8258b2c703 Germany | |
| b7b2447d-28ec-4483-8ed8-29d90d92bbe5 Norway | |
| 7bc5a63d-8b87-4a9f-894d-f8ef916d8fb6 Bulgaria | |
| c76d7970-3f93-4941-b548-75d11534f710 Denmark | |
| f9a3d99b-399c-478f-969f-e4ad49bbd2d9 Germany | |
| 906a8041-5d46-4efd-863c-87098ce2e864 Hungary | |
| 6475fd28-d6eb-466d-9880-93f5db5e40ea France | |
| 0f221c2b-0172-40c3-a534-31325ffa3f83 Spain | |
| 95d18381-428a-4895-9a6d-a57b156e7633 Czech Republic | |
| e2665ad9-55c4-4ef6-ae3a-23a39a96b78d Netherlands | |
| 762e5ce9-f5c2-499b-9f70-c754fcda1f8c Croatia | |
| 94b8a46a-cbaf-4c9e-a719-fdc666a0e18b Germany | |
| 0d4e1532-3b64-47bc-b61d-44dd60a74a77 Germany | |
| 443d3304-4974-4f20-a80a-0f9a190eaf65 Portugal | |
| 48d78f37-ecf8-495d-af25-7dcac8b7cf2e Sweden | |
| e2665ad9-55c4-4ef6-ae3a-23a39a96b78d Netherlands | |
| f9a3d99b-399c-478f-969f-e4ad49bbd2d9 Germany | |
| ac3358c6-7971-4d2d-bdd5-117e85ca8ca9 France | |
| c76d7970-3f93-4941-b548-75d11534f710 Denmark | |
| ce55a066-324e-44a6-b104-aa136ff1fc9f Poland | |
| b7b2447d-28ec-4483-8ed8-29d90d92bbe5 Norway | |
| 6245ae84-5f35-45e6-856d-68de2befd7da Greece | |
| 762e5ce9-f5c2-499b-9f70-c754fcda1f8c Croatia | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XLEKDFAZZAAAA00000 |
| EAN | 8056221018203 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 14 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 15.5 kg |
| Package Level 1 EAN | 8056221018203 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1437 |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 57 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 65 kA | |
| (690 V AC) 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 65 kA | |
| (690 V AC) 50 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Release | Ekip Dip LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | L |
| Standards | IEC60947-2 |
| Sub-type | XT7M |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1102 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 1250 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 1250 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 1250 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1250 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB TMAX XT EN.pdf | 70 Mbytes |
|
| 1SDA101776R1 1SDA101776R1 EN_1SDA101776R1.pdf | 649 Kbytes |
|
