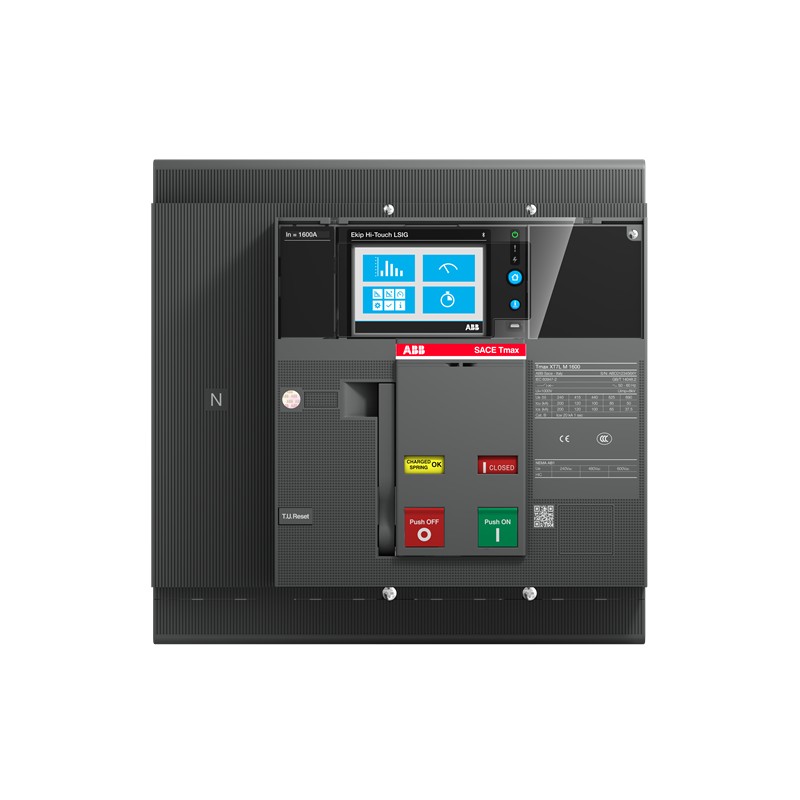

1SDA101734R1 ABB XT7H M 800 Ekip Touch Meas.LSIG 800 4pFF
1SDA101734R1
ABB
XT7H M 800 Ekip Touch Meas.LSIG 800 4pFF
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2358 |
| Environmental Product Declaration - EPD | 9AKK108468A1896 |
| 9AKK108468A4411 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 2f782ee4-ff3b-4195-a0d4-e752a661f43d Italy |
| Simplified SCIP | f7d60884-5a5b-4ace-bf7c-ba531fde309b Germany |
| ee409a17-7485-4ed1-9bf4-391331cf04f1 Bulgaria | |
| 74428158-7d30-46db-86e9-0155d46eed73 Denmark | |
| 0b229f82-5a46-486a-8e1d-8e784fc258b5 Norway | |
| 1d3881b7-4c2f-4981-9459-5c9cb1c0c8e5 Germany | |
| f7dffff8-f62d-435f-bfd3-d896369793d7 Belgium | |
| 4a6d4c68-d33b-4742-b309-9627c743be7d Finland | |
| f7dffff8-f62d-435f-bfd3-d896369793d7 Belgium | |
| 1d3881b7-4c2f-4981-9459-5c9cb1c0c8e5 Germany | |
| de3d5cdf-9af3-4b35-9d98-dc5bd8f0d028 Sweden | |
| aeb8ac09-cc1f-4a7b-97de-3728a8813414 Czech Republic | |
| d61acef9-fc15-4f0c-ab7d-3af3afa69b38 Poland | |
| 88f7488c-4451-49e2-9492-9d13c4e6a943 Germany | |
| 74428158-7d30-46db-86e9-0155d46eed73 Denmark | |
| 6383fb7f-930e-429f-9f28-7e90d6593c75 Poland | |
| fa8f907d-6141-48da-8276-9a85d3573b22 Belgium | |
| 6383fb7f-930e-429f-9f28-7e90d6593c75 Poland | |
| aeb01fa5-a14e-4fbe-805f-9b17a16480e1 Spain | |
| 88f7488c-4451-49e2-9492-9d13c4e6a943 Germany | |
| 731a1bba-fab6-49cf-b6e0-3ddcfb96862c Poland | |
| 5c55b903-af99-43ae-9134-3550663baaa6 Portugal | |
| 0c26ae8a-77b3-498d-adff-9e37e182768d Greece | |
| ae210eb6-d051-4de9-b142-c0d5dafff7f3 Croatia | |
| 5c55b903-af99-43ae-9134-3550663baaa6 Portugal | |
| 8de8371c-43db-49c7-9d0d-0b835e020cdf Germany | |
| b7d67790-02cc-4ad4-8106-b9ab3c3b851d Netherlands | |
| 7dc43f66-516a-484f-8354-2e105db3a081 Germany | |
| 73b7a9fa-8532-4d0a-8457-3d6a8deaad67 Hungary | |
| b7d67790-02cc-4ad4-8106-b9ab3c3b851d Netherlands | |
| ee409a17-7485-4ed1-9bf4-391331cf04f1 Bulgaria | |
| aeb8ac09-cc1f-4a7b-97de-3728a8813414 Czech Republic | |
| 500669ff-8546-4498-a746-294763f2fff8 France | |
| 0b229f82-5a46-486a-8e1d-8e784fc258b5 Norway | |
| 0c26ae8a-77b3-498d-adff-9e37e182768d Greece | |
| ae210eb6-d051-4de9-b142-c0d5dafff7f3 Croatia | |
| 4e61a4de-4363-424b-ae63-a86ea41dddfa Sweden | |
| 4a6d4c68-d33b-4742-b309-9627c743be7d Finland | |
| f7d60884-5a5b-4ace-bf7c-ba531fde309b Germany | |
| 550f81f0-5ee0-43bd-8ea6-e66c59867a6d Hungary | |
| aeb01fa5-a14e-4fbe-805f-9b17a16480e1 Spain | |
| de3d5cdf-9af3-4b35-9d98-dc5bd8f0d028 Sweden | |
| d61acef9-fc15-4f0c-ab7d-3af3afa69b38 Poland | |
| 8de8371c-43db-49c7-9d0d-0b835e020cdf Germany | |
| e2593a27-b619-4ee8-a171-b40c7b9f1e8d France | |
| 500669ff-8546-4498-a746-294763f2fff8 France | |
| 7dc43f66-516a-484f-8354-2e105db3a081 Germany | |
| 4e61a4de-4363-424b-ae63-a86ea41dddfa Sweden | |
| bff07bc3-bc85-49ac-acb2-577990a7cdc2 Estonia | |
| 73b7a9fa-8532-4d0a-8457-3d6a8deaad67 Hungary | |
| 731a1bba-fab6-49cf-b6e0-3ddcfb96862c Poland | |
| e2593a27-b619-4ee8-a171-b40c7b9f1e8d France | |
| 550f81f0-5ee0-43bd-8ea6-e66c59867a6d Hungary | |
| bff07bc3-bc85-49ac-acb2-577990a7cdc2 Estonia | |
| fa8f907d-6141-48da-8276-9a85d3573b22 Belgium | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XHEDHFAZZAAAA00000 |
| EAN | 8056221017787 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221017787 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1437 |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 24 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 42 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 42 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Release | Ekip Touch Measuring LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC60947-2 |
| Sub-type | XT7M |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1102 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| 1SDH001821A1001 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 800 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 320.0 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 480.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1200.0 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB TMAX XT EN.pdf | 70 Mbytes |
|
| 1SDA101734R1 1SDA101734R1 EN_1SDA101734R1.pdf | 605 Kbytes |
|
