1SDA101718R1
ABB
1

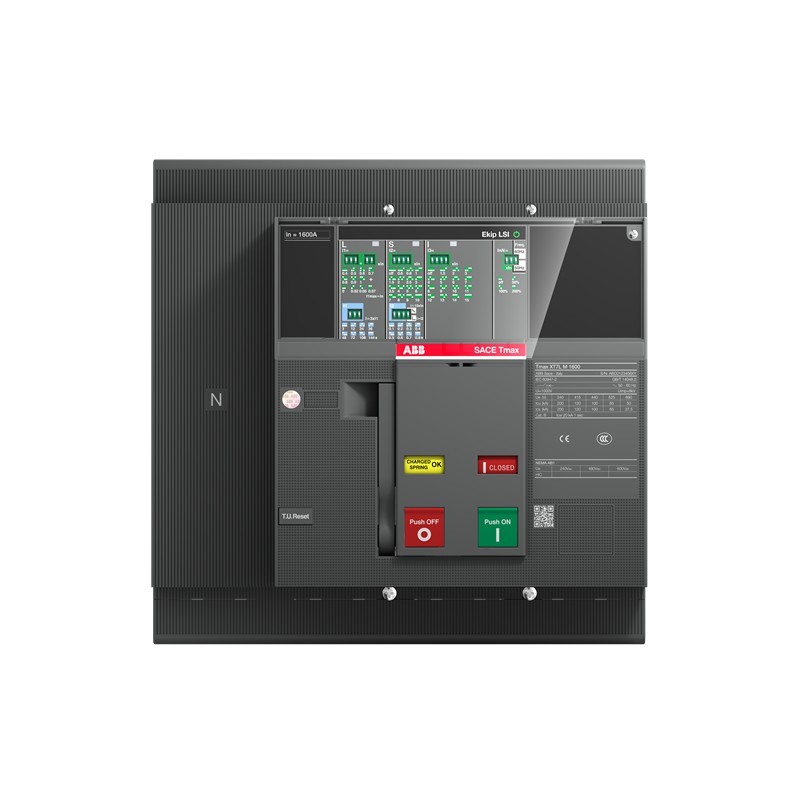

C.BREAKER TMAX XT7H 800 FIXED FOUR-POLE WITH FRONT TERMINALS AND STORED ENERGY OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC EKIP DIP LSIG R 800
Molded case "Isomax-Tmax"
* Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
b'
XT7H M 800 Ekip Dip LSIG In=800A 4p F F
1SDA101718R1
8056221017626
XT7H M 800 Ekip Dip LSIG In=800A 4p F F
C.BREAKER TMAX XT7H 800 FIXED FOUR-POLE WITH FRONT TERMINALS AND STORED ENERGY OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC EKIP DIP LSIG R 800
8056221017626
1 piece
85362090
280 mm
268 mm
178 mm
14 kg
1 piece
360 mm
350 mm
360 mm
15.5 kg
8056221017626
Power Distribution
AC
120 cycles per hour
3000 cycle
240 cycles per hour
20000 cycle
4
1 piece
at Rated Operating Conditions per Pole 24 W
SACE Tmax XT
Moulded Case Circuit Breaker
CB
800 A
8 kV
1000 V
690 V AC
(220 V AC) 100 kA
(230 V AC) 100 kA
(240 V AC) 100 kA
(380 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(525 V AC) 50 kA
(690 V AC) 42 kA
20 kA
(220 V AC) 100 kA
(230 V AC) 100 kA
(240 V AC) 100 kA
(380 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(525 V AC) 50 kA
(690 V AC) 42 kA
800 A
Ekip Dip LSIG
EL
H
IEC 60947
XT7M
Fixed Circuit-Breakers
F
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Q
5. Small Equipment (No External Dimension More Than 50 cm)
Title: | Size: | Type: |
---|---|---|
PDF CATALOG MOLDED CASE ISOMAX-TMAX EN.pdf | 25 Mbytes | |
1SDA101718R1 1SDA101718R1 EN_1SDA101718R1.pdf | 649 Kbytes |
