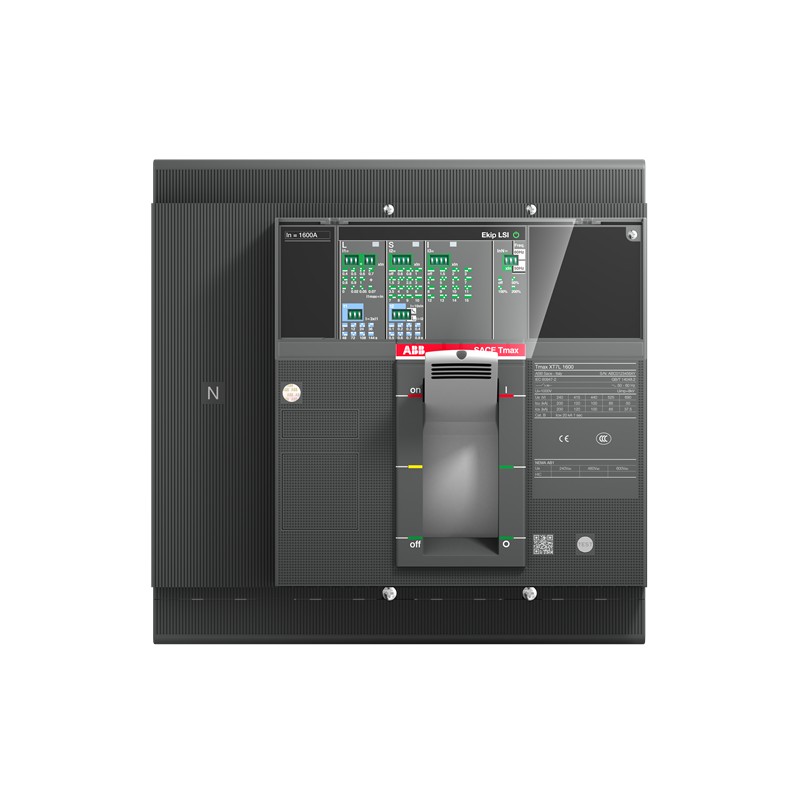

1SDA101236R1 ABB XT7L 1250 Ekip Dip LSIG In 1250A 4p F F
1SDA101236R1
ABB
XT7L 1250 Ekip Dip LSIG In=1250A 4p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 4ab7e147-d65a-43bc-b0f1-82b12c7d8344 Italy |
| Simplified SCIP | 57d2eb4e-e34a-4d16-94cd-990098cd7f0b Spain |
| 2c768c5a-71c9-478e-bf94-71102c4fddeb Poland | |
| 510ca590-58e3-464f-a588-cfd561a2da36 Belgium | |
| 823b8248-8a3d-4231-aa05-229b18bc6165 Belgium | |
| f8ca5f7b-9403-467a-965d-86d13a29b6a6 Germany | |
| ced4db81-e173-40f4-b266-96271bcecfc4 Norway | |
| 5eeef5bb-0356-4804-8c9f-d0debfde1431 Bulgaria | |
| 57f724b5-8e24-42d7-98c2-510254656827 Germany | |
| 2e1cdd9c-743b-4c10-add0-ba98986c777d Denmark | |
| 823b8248-8a3d-4231-aa05-229b18bc6165 Belgium | |
| f8ca5f7b-9403-467a-965d-86d13a29b6a6 Germany | |
| c479b8ea-2b9e-4873-9a1c-32bdf01c1063 Sweden | |
| 191c22f0-4d40-4e5a-9d52-d170cb1142dc Finland | |
| 1652b40d-3b40-4081-9156-52a38422b897 Germany | |
| 0d8ea55e-2124-4313-bd8c-640490f96288 Poland | |
| 1b712406-ee14-44a3-a08c-9e270445d12e Czech Republic | |
| 2c768c5a-71c9-478e-bf94-71102c4fddeb Poland | |
| 2e1cdd9c-743b-4c10-add0-ba98986c777d Denmark | |
| 1652b40d-3b40-4081-9156-52a38422b897 Germany | |
| ed9928a1-7a4e-4cbf-b1fe-97c13ff9af9e Portugal | |
| 852b394b-c2cb-4752-b277-7ec917908eaa Poland | |
| e751a345-4de6-456a-84ff-c16b65781f56 Greece | |
| 22164576-b019-4277-b06c-4edadaf5871e Sweden | |
| 191c22f0-4d40-4e5a-9d52-d170cb1142dc Finland | |
| c6bcc609-87b6-4795-b938-5d0f213ca617 Netherlands | |
| 57f724b5-8e24-42d7-98c2-510254656827 Germany | |
| 0fb40861-f1aa-4452-9ca1-8591655f21da France | |
| 1bc4ab5b-3afe-4a9e-9d15-0c47d73acdc7 Croatia | |
| e751a345-4de6-456a-84ff-c16b65781f56 Greece | |
| ced4db81-e173-40f4-b266-96271bcecfc4 Norway | |
| 1bc4ab5b-3afe-4a9e-9d15-0c47d73acdc7 Croatia | |
| 9797d32c-c137-42f0-8d4f-9a7c956672ee Hungary | |
| ed9928a1-7a4e-4cbf-b1fe-97c13ff9af9e Portugal | |
| 8da6d47a-3d81-483b-afb4-3b9942d03656 Germany | |
| 5f53d06a-7c59-4510-b771-480775e7273d Germany | |
| c74845f6-0957-4fca-9b4d-412391a9c01f Hungary | |
| 57d2eb4e-e34a-4d16-94cd-990098cd7f0b Spain | |
| c479b8ea-2b9e-4873-9a1c-32bdf01c1063 Sweden | |
| 0d8ea55e-2124-4313-bd8c-640490f96288 Poland | |
| 0fb40861-f1aa-4452-9ca1-8591655f21da France | |
| 22164576-b019-4277-b06c-4edadaf5871e Sweden | |
| 8da6d47a-3d81-483b-afb4-3b9942d03656 Germany | |
| 5f53d06a-7c59-4510-b771-480775e7273d Germany | |
| 35302c7a-4454-404b-920a-0ce23f7197d3 France | |
| c6bcc609-87b6-4795-b938-5d0f213ca617 Netherlands | |
| 5eeef5bb-0356-4804-8c9f-d0debfde1431 Bulgaria | |
| 9797d32c-c137-42f0-8d4f-9a7c956672ee Hungary | |
| 1b712406-ee14-44a3-a08c-9e270445d12e Czech Republic | |
| 3a079b97-ee96-43d5-8284-5627c3bf302d Estonia | |
| 3a079b97-ee96-43d5-8284-5627c3bf302d Estonia | |
| 510ca590-58e3-464f-a588-cfd561a2da36 Belgium | |
| c74845f6-0957-4fca-9b4d-412391a9c01f Hungary | |
| 35302c7a-4454-404b-920a-0ce23f7197d3 France | |
| 852b394b-c2cb-4752-b277-7ec917908eaa Poland | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7LE412EGFF000XXX |
| EAN | 8056221015394 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221015394 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1390 |
| 1SDH002065A1338 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 57 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 65 kA | |
| (690 V AC) 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 65 kA | |
| (690 V AC) 50 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Release | Ekip Dip LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | L |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 1250 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 1250 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 1250 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1250 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
