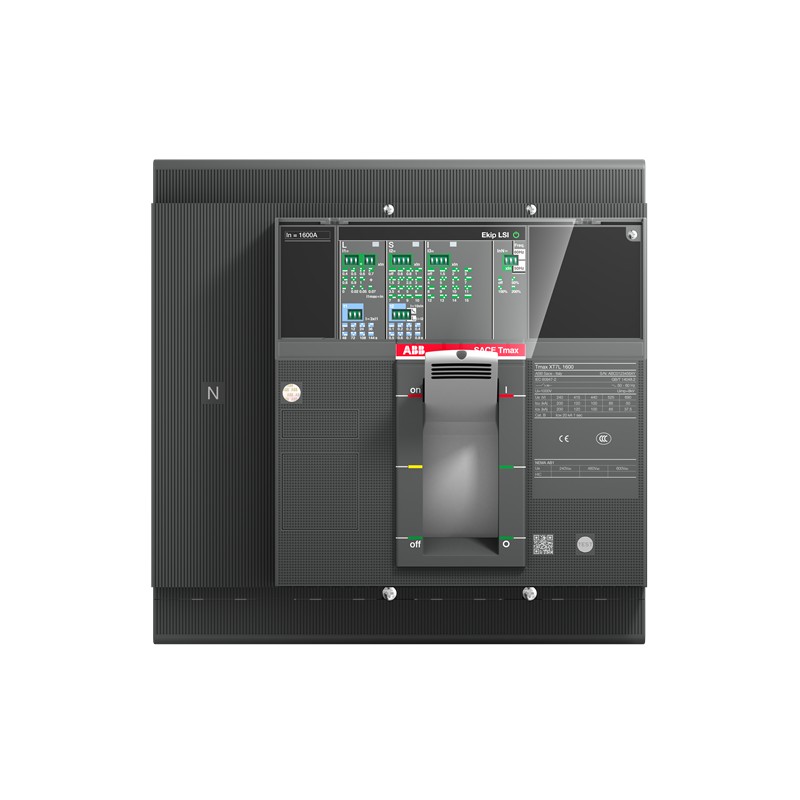

1SDA101232R1 ABB XT7L 1250 Ekip Dip LSI In 1250A 4p F F
1SDA101232R1
ABB
XT7L 1250 Ekip Dip LSI In=1250A 4p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 4a55af11-d0af-4d0f-961f-8f78f8dfc535 Italy |
| Simplified SCIP | 0eee14fe-0628-4b05-9799-60a4e6096ac8 Belgium |
| 0986f8c2-640b-4dff-9cde-a99fbba8b9b0 Germany | |
| 3887f691-2597-414f-9558-9166d057189c Norway | |
| aedb9bf8-3a03-4fed-8f31-f5cffcb329fa Belgium | |
| 53f6a9d9-b0e0-40b1-8239-65f3adae7f49 Germany | |
| c0e30bd8-6436-4185-bdff-a03e2fd915a1 Denmark | |
| 82a7560f-2cb0-43cd-9af8-93094ab91604 Bulgaria | |
| 0986f8c2-640b-4dff-9cde-a99fbba8b9b0 Germany | |
| aedb9bf8-3a03-4fed-8f31-f5cffcb329fa Belgium | |
| 2afcd66c-4696-4f58-8f9a-7be7730e10e2 Finland | |
| fca261d3-7ecd-4695-899e-252b6b721225 Germany | |
| ac372b0b-3d4d-4224-bd6e-26213caba291 Sweden | |
| e035606d-80a7-4e54-9a40-8e05bec9f507 Poland | |
| 03f88d4f-9d39-4be9-8683-c7ef5a3792f0 Czech Republic | |
| f1fa5abf-826b-4bc7-b906-35e0eabd59da Poland | |
| c0e30bd8-6436-4185-bdff-a03e2fd915a1 Denmark | |
| f1fa5abf-826b-4bc7-b906-35e0eabd59da Poland | |
| fca261d3-7ecd-4695-899e-252b6b721225 Germany | |
| f3e6d7b8-6360-4107-b777-21f5d295da01 Spain | |
| e7768fa5-c4f0-4988-8299-c0365cfe2058 Poland | |
| b8eb4044-510d-4758-ac77-e4a10e23a671 Greece | |
| 52bc8413-9473-43f8-b75a-d6f41035b270 Portugal | |
| 53f6a9d9-b0e0-40b1-8239-65f3adae7f49 Germany | |
| 2afcd66c-4696-4f58-8f9a-7be7730e10e2 Finland | |
| 22bcf3cf-0316-40f6-9445-c4cf0b377e8a Sweden | |
| b84a149c-7365-4109-a059-29c4b732a567 Netherlands | |
| af0bc758-2b5a-43a7-861d-9622a452d5e7 France | |
| 3887f691-2597-414f-9558-9166d057189c Norway | |
| c654a029-e553-4b4f-941c-ae9bf3589094 Croatia | |
| b8eb4044-510d-4758-ac77-e4a10e23a671 Greece | |
| 03f88d4f-9d39-4be9-8683-c7ef5a3792f0 Czech Republic | |
| b84a149c-7365-4109-a059-29c4b732a567 Netherlands | |
| 82a7560f-2cb0-43cd-9af8-93094ab91604 Bulgaria | |
| c654a029-e553-4b4f-941c-ae9bf3589094 Croatia | |
| 52bc8413-9473-43f8-b75a-d6f41035b270 Portugal | |
| a4b75054-7958-47d7-b95a-9a3518eed122 Germany | |
| d43875f9-d93e-4b53-8e58-46af7260dfad Hungary | |
| 8b195043-3f61-4d0e-bba3-bf7d3ed75f88 Germany | |
| c58baab9-71c1-44b0-9288-7b6522612a6a France | |
| 40000dad-d608-4154-aa17-4b264a56efec Hungary | |
| f3e6d7b8-6360-4107-b777-21f5d295da01 Spain | |
| e035606d-80a7-4e54-9a40-8e05bec9f507 Poland | |
| ac372b0b-3d4d-4224-bd6e-26213caba291 Sweden | |
| af0bc758-2b5a-43a7-861d-9622a452d5e7 France | |
| a4b75054-7958-47d7-b95a-9a3518eed122 Germany | |
| 8b195043-3f61-4d0e-bba3-bf7d3ed75f88 Germany | |
| 22bcf3cf-0316-40f6-9445-c4cf0b377e8a Sweden | |
| d43875f9-d93e-4b53-8e58-46af7260dfad Hungary | |
| bcd75d62-cbbd-4844-acee-3cd466bf7bae Estonia | |
| e7768fa5-c4f0-4988-8299-c0365cfe2058 Poland | |
| c58baab9-71c1-44b0-9288-7b6522612a6a France | |
| bcd75d62-cbbd-4844-acee-3cd466bf7bae Estonia | |
| 40000dad-d608-4154-aa17-4b264a56efec Hungary | |
| 0eee14fe-0628-4b05-9799-60a4e6096ac8 Belgium | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7LE412EFFF000XXX |
| E-Number (Norway) | 4380867 |
| EAN | 8056221015356 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221015356 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1390 |
| 1SDH002065A1338 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 57 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 65 kA | |
| (690 V AC) 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 65 kA | |
| (690 V AC) 50 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Release | Ekip Dip LSI |
| Release Type | EL |
| Short-Circuit Performance Level | L |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 1250 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 1250 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 1250 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1250 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
