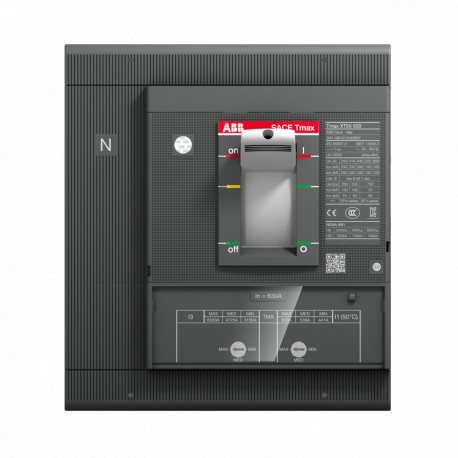

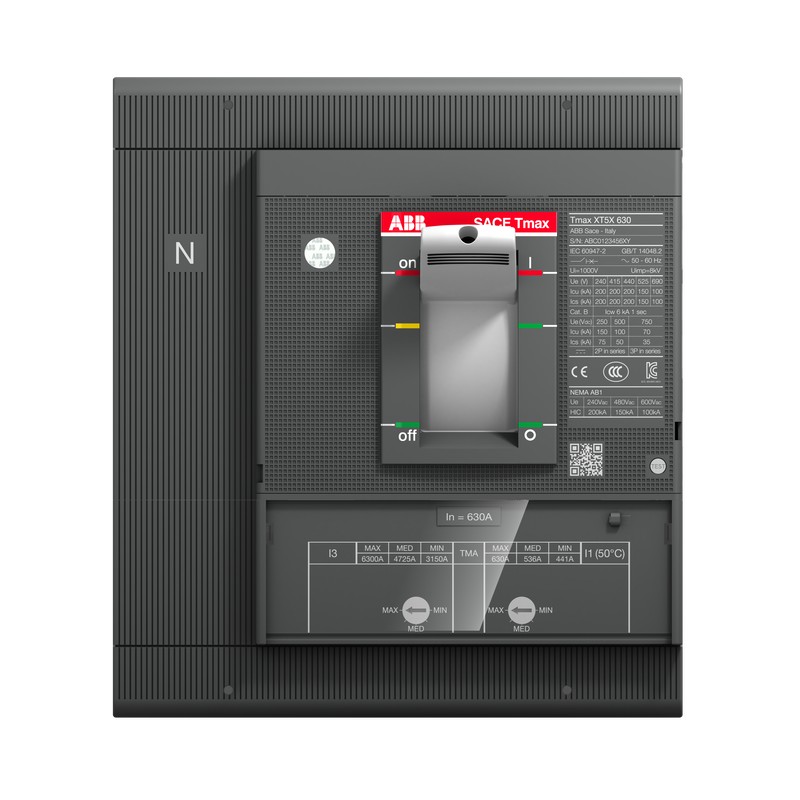

1SDA100383R1 ABB XT5N 400 TMA 320-3200 4p F F InN 100%In
1SDA100383R1
ABB
XT5N 400 TMA 320-3200 4p F F InN=100%In
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A9746 |
| 9AKK108468A1893 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 85a81276-3d26-4e86-96b2-e8322d253e1a Italy |
| Simplified SCIP | 78effd67-6f42-49db-b067-fc89a7ce10fa Germany |
| 41f907ea-f5a2-4586-a756-5ac2a1e4a709 Greece | |
| 35cd5cad-7b91-4f3d-919e-07b243a82ee3 Poland | |
| 2558a4d8-d29e-4746-af95-a81a14532b67 Portugal | |
| 37392a54-8ec1-4d42-85a2-2d7a8f17e101 Poland | |
| f0fb3001-c248-4b6e-aba3-23edf20a9ce8 France | |
| 27bda2ac-80d1-48d2-bf5f-5fd206cf8100 Belgium | |
| b94e8e1c-b054-4ce5-a349-d48783be37b2 Sweden | |
| 9b267f13-a969-43db-8fdc-5295a5ea1edb Germany | |
| 19e0438e-94b5-4e5e-bf57-74b8a00d8d91 Sweden | |
| aa33a372-bcc1-46c5-9c30-4e605eb6e4ce Estonia | |
| 2d5c0efd-5eeb-466e-ba89-67d4d9582edd Spain | |
| ac07acf9-f1b3-4acf-bd0d-4fdd2e3bacfc Hungary | |
| 35cd5cad-7b91-4f3d-919e-07b243a82ee3 Poland | |
| 86f00700-1712-4616-b5b3-6288e0f2564f France | |
| aa33a372-bcc1-46c5-9c30-4e605eb6e4ce Estonia | |
| 1041a68d-3d89-42bb-9d7a-9e38160fade6 Hungary | |
| b390e424-a3ac-4e7f-9320-f2940e60e5aa Bulgaria | |
| a119b114-4168-4ad0-b2d9-689089752140 Netherlands | |
| c5d7f9af-0b14-4643-8b9b-9e784dba90e7 Czech Republic | |
| 84d726f6-1abb-4dff-87ff-5cebcc8fb81b Croatia | |
| 2d5c0efd-5eeb-466e-ba89-67d4d9582edd Spain | |
| ac07acf9-f1b3-4acf-bd0d-4fdd2e3bacfc Hungary | |
| 86f00700-1712-4616-b5b3-6288e0f2564f France | |
| c5882ec1-a06b-4014-9bef-1083b6389c54 Germany | |
| 27bda2ac-80d1-48d2-bf5f-5fd206cf8100 Belgium | |
| dea8171c-55be-41ec-aacf-cd5b69c1e342 Poland | |
| f2d7905c-f50f-4131-a739-b81655a0e2db Belgium | |
| 081412ef-d484-405a-af2a-38c005b53909 Norway | |
| b390e424-a3ac-4e7f-9320-f2940e60e5aa Bulgaria | |
| 84c0c796-11dc-42ce-b716-28d7d03b5ecd Germany | |
| fa43febc-1637-43a7-838d-96008dec0f7b Denmark | |
| 24decf4c-7356-4d43-9c92-75abbf1f47de Germany | |
| b94e8e1c-b054-4ce5-a349-d48783be37b2 Sweden | |
| 37392a54-8ec1-4d42-85a2-2d7a8f17e101 Poland | |
| c5d7f9af-0b14-4643-8b9b-9e784dba90e7 Czech Republic | |
| 78effd67-6f42-49db-b067-fc89a7ce10fa Germany | |
| dea8171c-55be-41ec-aacf-cd5b69c1e342 Poland | |
| 0f82ec76-9029-4103-a9e2-f79652d31bf5 Finland | |
| f2d7905c-f50f-4131-a739-b81655a0e2db Belgium | |
| 84c0c796-11dc-42ce-b716-28d7d03b5ecd Germany | |
| a119b114-4168-4ad0-b2d9-689089752140 Netherlands | |
| 0f82ec76-9029-4103-a9e2-f79652d31bf5 Finland | |
| 19e0438e-94b5-4e5e-bf57-74b8a00d8d91 Sweden | |
| 1041a68d-3d89-42bb-9d7a-9e38160fade6 Hungary | |
| 2558a4d8-d29e-4746-af95-a81a14532b67 Portugal | |
| c5882ec1-a06b-4014-9bef-1083b6389c54 Germany | |
| 9b267f13-a969-43db-8fdc-5295a5ea1edb Germany | |
| fa43febc-1637-43a7-838d-96008dec0f7b Denmark | |
| 84d726f6-1abb-4dff-87ff-5cebcc8fb81b Croatia | |
| 081412ef-d484-405a-af2a-38c005b53909 Norway | |
| 41f907ea-f5a2-4586-a756-5ac2a1e4a709 Greece | |
| f0fb3001-c248-4b6e-aba3-23edf20a9ce8 France | |
| 24decf4c-7356-4d43-9c92-75abbf1f47de Germany | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT5NE432ABFF000XXX |
| E-Number (Norway) | 4380398 |
| EAN | 8056221004602 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 186 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 5.6 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 250 mm |
| Package Level 1 Height | 245 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 6.088 kg |
| Package Level 1 EAN | 8056221004602 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1183 |
| 1SDH002065A1131 | |
| Technical | |
| Current Type | AC/DC |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | 16.9 W |
| Rated Current (In) | 320 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 1600…3200 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| (250 V DC) 2 Poles in Series 25 kA | |
| (500 V DC) 2 Poles in Series 25 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| (250 V DC) 2 Poles in Series 25 kA | |
| (500 V DC) 2 Poles in Series 25 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | TMA |
| Release Type | TM |
| Setting Range | 224…320 A |
| Short-Circuit Performance Level | N |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Mechanical Drawings | 1SDH002011A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 320 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 128.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1600 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
