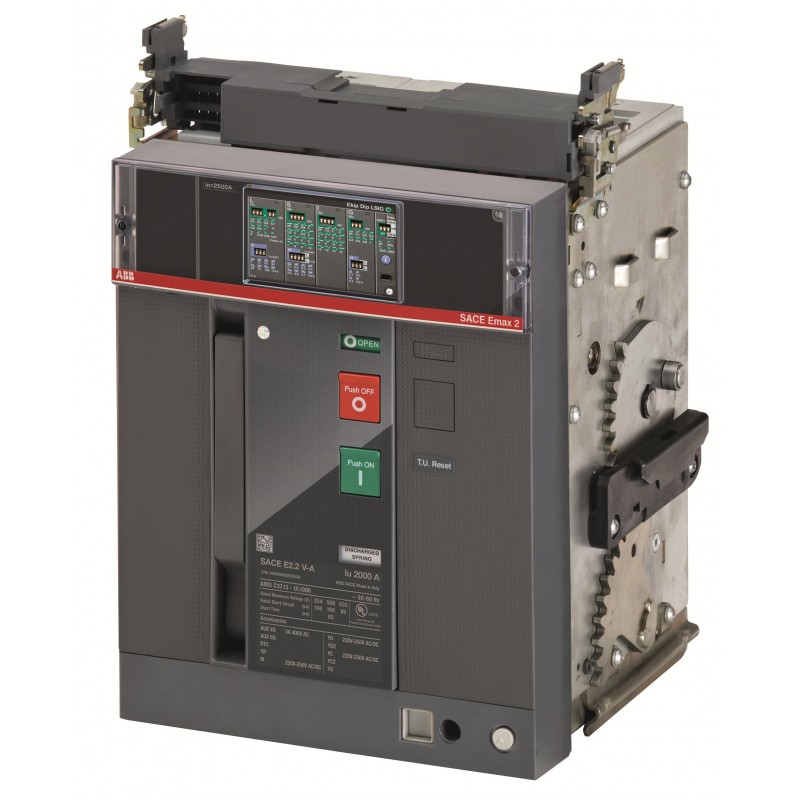

1SDA077582R1 ABB E2.2H-A 800 Ekip Touch LSI 3p WMP. MOVING PART FOR SACE EMAX2 E2.2H-A 800 UL THREE-POLE SWI..
1SDA077582R1
ABB
E2.2H-A 800 Ekip Touch LSI 3p WMP. MOVING PART FOR SACE EMAX2 E2.2H-A 800 UL THREE-POLE SWITCH WITH ELECTRONIC RELAYS IN AC EKIP/TOUCH-LSI R 800 WITH: 4 AUXILIARY SWITCH CONTACTS IN OPEN-CLOSED POSITION
E2.2H-A 800 Ekip Touch LSI 3p WMP
Rack "Megamax-Emax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2361 |
| Environmental Product Declaration - EPD | 9AKK108468A1906 |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 79.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 7730a8ae-0333-41a3-9b1d-0b2990aa9376 Italy |
| Simplified SCIP | ebc0ba1c-34f1-4bf8-9eb7-1ab86e6ade28 France |
| 9586893b-9c2a-406c-86ad-f10bf3695e0a Sweden | |
| f2052194-ab85-493e-9be7-65003bc76e9a Germany | |
| 71880da7-0215-4188-bce1-0a5cab463437 Estonia | |
| 4e831d72-eac9-4553-b837-b1838fabf793 Sweden | |
| cf11485b-70ee-40ae-9c30-0085a3202121 Poland | |
| 75f65db7-48d2-46ba-b4a4-61ca9c89d269 Spain | |
| 184f053a-6a80-489c-bbaa-fd0196d954dd Poland | |
| cb2a8bb5-a09d-4e2d-8e58-631f8183ca4f France | |
| 71880da7-0215-4188-bce1-0a5cab463437 Estonia | |
| 3046a739-177f-4581-b07a-6e8c1feff534 Germany | |
| 298bebed-b8fb-4639-921b-658ad40482e7 Belgium | |
| 75f65db7-48d2-46ba-b4a4-61ca9c89d269 Spain | |
| d7eecea0-610d-4b5a-9f34-11eccb144de0 Hungary | |
| 8a5b4426-4b80-4a30-acab-80139a293adf Belgium | |
| f72b0c6d-a80e-4b4f-b7ce-9b0d5de8f40d Norway | |
| 46fa8ba0-f804-47f4-b94f-6596587b1a25 Bulgaria | |
| 55789c04-4720-4aa6-b80f-eb5f12311854 Germany | |
| ced333de-6bd1-474e-a149-d39754d9a34e Germany | |
| 23aaf433-5ec6-4029-92ea-f4a3014786cb Denmark | |
| ef553443-dae5-4c46-8e91-64fdf41e154c Finland | |
| b7be9ea0-6708-42a6-9a1f-1b9438758abb Germany | |
| 4e831d72-eac9-4553-b837-b1838fabf793 Sweden | |
| a6c679a7-4ec8-4dca-8cbc-2ba8dc2b8b1a Croatia | |
| 55789c04-4720-4aa6-b80f-eb5f12311854 Germany | |
| cb2a8bb5-a09d-4e2d-8e58-631f8183ca4f France | |
| 8a5b4426-4b80-4a30-acab-80139a293adf Belgium | |
| aafb921b-2389-4855-847b-d1311de143d9 Poland | |
| d4ff5f7e-82a2-4f86-83a1-eba127139b2f Greece | |
| cf11485b-70ee-40ae-9c30-0085a3202121 Poland | |
| 85eac71b-740c-4a37-a6d6-1a945ca1fa43 Czech Republic | |
| 23aaf433-5ec6-4029-92ea-f4a3014786cb Denmark | |
| f72b0c6d-a80e-4b4f-b7ce-9b0d5de8f40d Norway | |
| b7be9ea0-6708-42a6-9a1f-1b9438758abb Germany | |
| d7eecea0-610d-4b5a-9f34-11eccb144de0 Hungary | |
| ebc0ba1c-34f1-4bf8-9eb7-1ab86e6ade28 France | |
| 4a656f2e-ac75-49a5-9b5f-51b1ae34ae54 Portugal | |
| ced333de-6bd1-474e-a149-d39754d9a34e Germany | |
| ef553443-dae5-4c46-8e91-64fdf41e154c Finland | |
| cd02c979-c9a5-4cac-bdf4-c8b75a6c8ece Netherlands | |
| a6c679a7-4ec8-4dca-8cbc-2ba8dc2b8b1a Croatia | |
| 02e7cadc-d341-4126-bbae-b0b8150bfaf4 Hungary | |
| 46fa8ba0-f804-47f4-b94f-6596587b1a25 Bulgaria | |
| 85eac71b-740c-4a37-a6d6-1a945ca1fa43 Czech Republic | |
| 3046a739-177f-4581-b07a-6e8c1feff534 Germany | |
| 02e7cadc-d341-4126-bbae-b0b8150bfaf4 Hungary | |
| f2052194-ab85-493e-9be7-65003bc76e9a Germany | |
| 9586893b-9c2a-406c-86ad-f10bf3695e0a Sweden | |
| 4a656f2e-ac75-49a5-9b5f-51b1ae34ae54 Portugal | |
| d4ff5f7e-82a2-4f86-83a1-eba127139b2f Greece | |
| 184f053a-6a80-489c-bbaa-fd0196d954dd Poland | |
| aafb921b-2389-4855-847b-d1311de143d9 Poland | |
| cd02c979-c9a5-4cac-bdf4-c8b75a6c8ece Netherlands | |
| 298bebed-b8fb-4639-921b-658ad40482e7 Belgium | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | Z2HCUFAE000A000000XX |
| EAN | 8015644840051 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 317 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 393 mm |
| Product Net Weight | 49 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 59 kg |
| Package Level 1 EAN | 8015644840051 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Connecting Capacity | 484 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 508 V 15000 cycle |
| Ue = 508 ... 635 V 15000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 68 W |
| Rated Current (In) | 800 A |
| Rated Insulation Voltage (Ui) | AC 635 V |
| Rated Operational Voltage | 600 V AC |
| Rated Voltage (Ur) | 600 V |
| Recommended Screw Driver | M12 |
| Release | Ekip Touch LSI |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | UL |
| Sub-type | E2.2 |
| Technical UL/CSA | |
| Interrupting Rating acc. to UL1066 | (254 V) 85 kA |
| (508 V) 85 kA | |
| (635 V) 85 kA | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SXU200040C0201 |
| Declaration of Conformity - CE | 9AKK106713A5902 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Instructions and Manuals | 1SDH001000R0002 |
| Instructions and Manuals (Part 2) | 1SDH001316R1002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
| UNSPSC | 39121615 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG EMAX 2 EN.pdf | 207 Mbytes |
|
