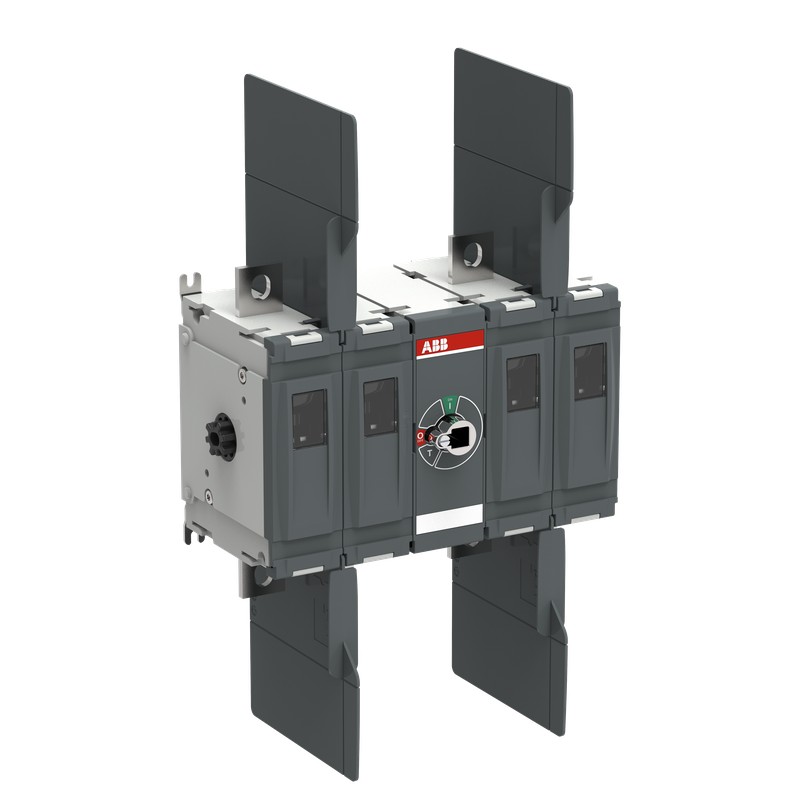

1SCA158299R1001 ABB DC OTDC400FV22 disconnect switch
1SCA158299R1001
ABB
DC OTDC400FV22 disconnect switch
A fully optimized four-pole DC switch-disconnector for 1500V utility-scale photovoltaic power plants covering 315-630A current range. The new design offers both a size reduction and an increase in efficiency and performance to help manufacturers adapt to the industry’s rapid adoption of 1500V DC solutions.The four-pole 1500V DC concept helps manufacturers improve system efficiency, reducing switch losses. The compact size of the new OTDC range makes it possible for manufacturers to reduce the size of combiner boxes and inverters.Main characteristics of this particular OTDC type:Disconnect double PV circuit, Approved according to IEC 60947-1, -3
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲b'
General Information
OTDC400FV22
1SCA158299R1001
6417019874043
OTDC400FV22 DC Switch-disconnector
A fully optimized four-pole DC switch-disconnector for 1500V utility-scale photovoltaic power plants covering 315-630A current range. The new design offers both a size reduction and an increase in efficiency and performance to help manufacturers adapt to the industry’s rapid adoption of 1500V DC solutions.The four-pole 1500V DC concept helps manufacturers improve system efficiency, reducing switch losses. The compact size of the new OTDC range makes it possible for manufacturers to reduce the size of combiner boxes and inverters.Main characteristics of this particular OTDC type:Disconnect double PV circuit, Approved according to IEC 60947-1, -3
Ordering
1 piece
85353010
Finland (FI)
Popular Downloads
Dimensions
M
255.5 mm
10.1 in
211 mm
8.3 in
135 mm
5.3 in
7.7 kg
16.9 lb
Technical
Double circuit 4a, 4c
(1500 V) 400 A
(1500 V) 400 A
(1500 V) 400 A
(1500 V) 400 A
400 A
Fully Enclosed 400 A
12 kV
1500 V
1500 V
(1500 V DC) 10 kA
(1500 V DC) 10 kA
for 1 s 10 kA
at Rated Operating Conditions per Pole 13 W
3
Handle and shaft not included
12 mm
0.47 in
Mechanism Between the Poles
22 (Between the Poles)
Top In - Bottom Out
Bottom In - Top Out
Front Operated
IEC 60947-1, -3
No
Base mounting
2
4
Front IP20
Lug terminals
30 mm
1.2 in
Cable Lug 30…40 N·m
10000 cycle
Environmental
Following EU Directive 2011/65/EU
Certificates and Declarations (Document Number)
Container Information
box 1 piece
270 mm
10.6 in
310 mm
12.2 in
200 mm
7.9 in
8 kg
17.5 lb
6417019874043
Classifications
Q
EC000216 - Switch disconnector
EC000216 - Switch disconnector
EC000216 - Switch disconnector
5. Small Equipment (No External Dimension More Than 50 cm)
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Rated operating voltage (EF001435) | 1500 V |
| Rated permanent current Iu (EF001389) | 400 A |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | Yes |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Interlockable (EF006281) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 1 |
