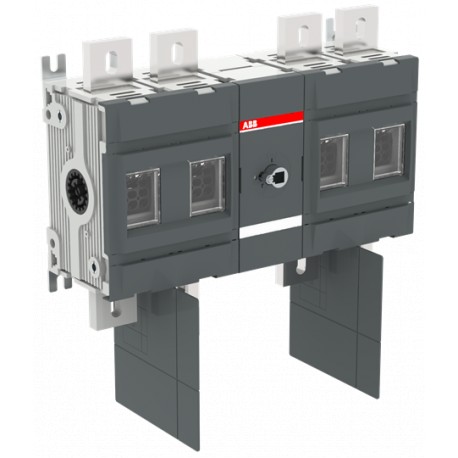

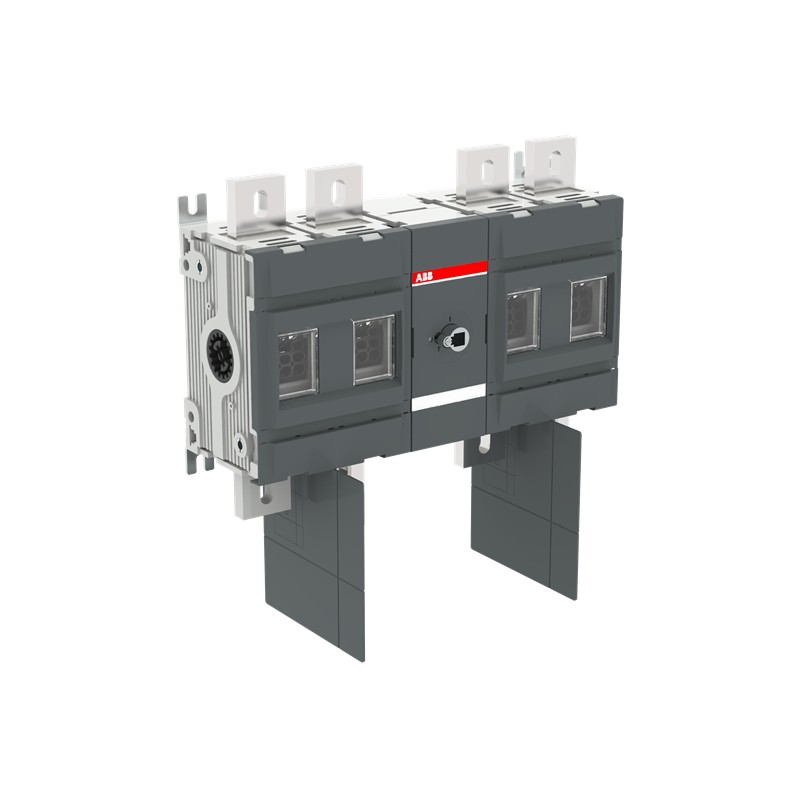

1SCA140871R1001 ABB DC disconnector switch OTDC1250E22
1SCA140871R1001
ABB
DC disconnector switch OTDC1250E22
OTDC1250E22 DC Switch-disconnector, Terminal bolt kit included, Handle and shaft need to be ordered separately, Base mounting, IEC 1000 VDC 1250 A
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲b'
General Information
OTDC1250E22
1SCA140871R1001
6417019686493
OTDC1250E22 DC Switch-disconnector
OTDC1250E22 DC Switch-disconnector, Terminal bolt kit included, Handle and shaft need to be ordered separately, Base mounting, IEC 1000 VDC 1250 A
Ordering
1 piece
85363090
Finland (FI)
Popular Downloads
Dimensions
L
414.5 mm
16.3 in
372 mm
14.6 in
235 mm
9.3 in
18.7 kg
41.2 lb
Technical
Single circuit 6a, 6b
(1000 V) 1250 A
1250 A
Fully Enclosed 1250 A
12 kV
1500 V
1000 V
(1000 V DC) 10 kA
(1000 V DC) 10 kA
for 1 s 10 kA
at Rated Operating Conditions per Pole 35 W
3
Handle and shaft not included
12 mm
0.47 in
Mechanism Between the Poles
22 (Between the Poles)
Top In - Bottom Out
Bottom In - Top Out
Front Operated
IEC 60947-1, -3
No
Base mounting
2
4
Front IP20
Lug terminals
50 mm
1.97 in
Cable Lug 50…75 N·m
Environmental
Following EU Directive 2011/65/EU
Certificates and Declarations (Document Number)
Container Information
box 1 piece
400 mm
15.7 in
435 mm
17.1 in
170 mm
6.7 in
20 kg
44.1 lb
6417019686493
Classifications
Q
EC000216 - Switch disconnector
EC000216 - Switch disconnector
EC000216 - Switch disconnector
5. Small Equipment (No External Dimension More Than 50 cm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG TRANSFER SWITCHES 2023 EN.pdf | 42 Mbytes |
|
| 1SCA140871R1001 EN_1SCA140871R1001.pdf | 264 Kbytes |
|
