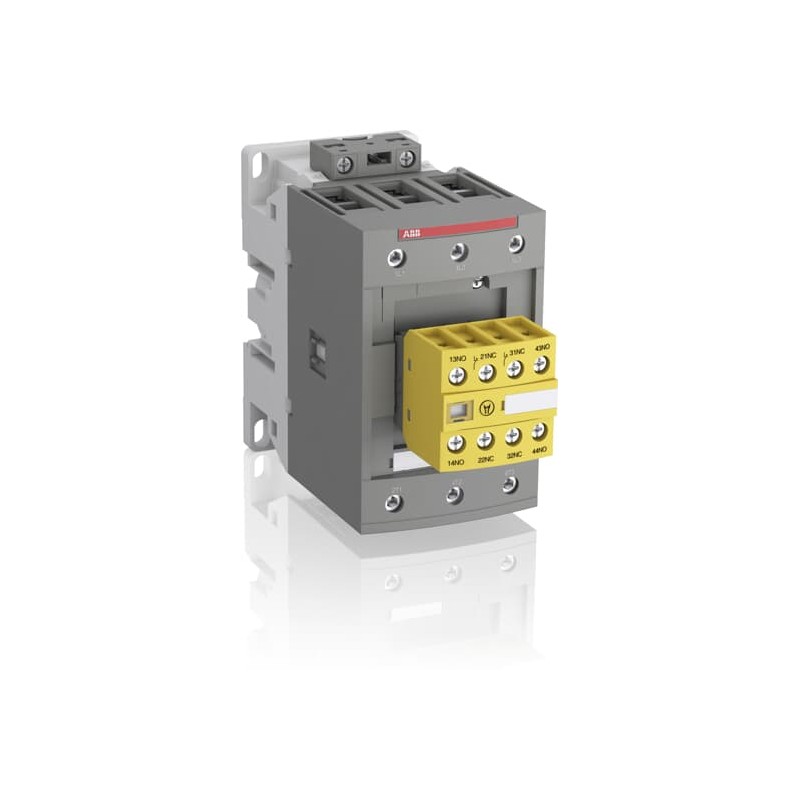

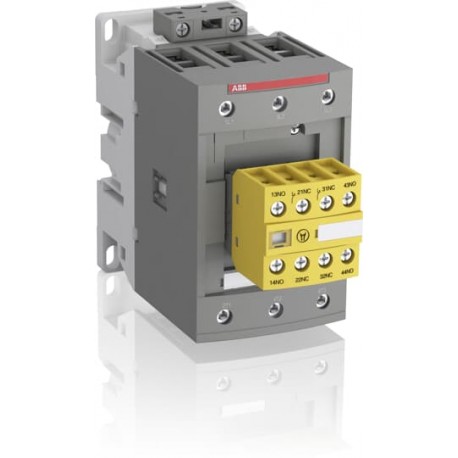

1SBL407082R1322 ABB AFS96-30-22-13 100-250V50/60HZ-DC Contactor

0/5 - 0 Opiniones

Reference: 1SBL407082R1322

Manufacturer: ABB

Description:

AFS96-30-22-13 100-250V50/60HZ-DC Contactor

AFS96-30-22-13 100-250V50/60HZ-DC

More details

Categories:
Low-voltage industrial components > Power contactor, AC switching

Contactors and overload relays

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

Guarantee, repair and return.

Total: $441.08

Unit price: $441.08

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers. Login or register and prices will be updated.

Calculate price by quantity

If our price is not the best, please ask us for a quote. Ask for a quotation

Viewed products

Related products

▲

Best sellers

▲

More info

▲

Ordering
Minimum Order Quantity	1 piece
Customs Tariff Number	85364900
Popular Downloads
EPLAN Data	9AAC190106_EPLAN
Data Sheet, Technical Information	1SBC100214C0202
Instructions and Manuals	1SBC101052M6801
Instructions and Manuals (Part 2)	1SAC200017M0002
CAD Dimensional Drawing	2CDC001079B0201
Dimensions
Product Net Width	70 mm
Product Net Depth / Length	149 mm
Product Net Height	125.5 mm
Product Net Weight	1.22 kg
Technical
Number of Main Contacts NO	3
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	2
Number of Auxiliary Contacts NC	2
Number of Poles	3P
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22
Rated Operational Voltage	Auxiliary Circuit 690 V
	Main Circuit 1000 V
Rated Frequency (f)	Auxiliary Circuit 50 / 60 Hz
	Control Circuit 50 / 60 Hz
	Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (I_th)	acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 130 A
	acc. to IEC 60947-5-1, Θ = 40 °C 16 A
Rated Operational Current AC-1 (I_e)	(690 V) 40 °C 130 A
	(690 V) 60 °C 105 A
	(690 V) 70 °C 90 A
Rated Operational Current AC-3 (I_e)	(415 V) 60 °C 96 A
	(440 V) 60 °C 96 A
	(500 V) 60 °C 80 A
	(690 V) 60 °C 57 A
	(1000 V) 60 °C 30 A
	(380 / 400 V) 60 °C 105 A
	(220 / 230 / 240 V) 60 °C 105 A
Rated Operational Current AC-3e (I_e)	(415 V) 60 °C 96 A
	(440 V) 60 °C 96 A
	(500 V) 60 °C 80 A
	(690 V) 60 °C 57 A
	(380 / 400 V) 60 °C 105 A
	(220 / 230 / 240 V) 60 °C 105 A
Rated Operational Current AC-15 (I_e)	(500 V) 2 A
	(690 V) 2 A
	(24 / 127 V) 6 A
	(220 / 240 V) 4 A
	(400 / 440 V) 3 A
Rated Operational Current DC-1 (I_e)	(110 V) 2 Poles in Series, 40 °C 130 A
	(110 V) 2 Poles in Series, 60 °C 105 A
	(110 V) 2 Poles in Series, 70 °C 90 A
	(110 V) 3 Poles in Series, 40 °C 130 A
	(110 V) 3 Poles in Series, 60 °C 105 A
	(110 V) 3 Poles in Series, 70 °C 90 A
	(220 V) 3 Poles in Series, 40 °C 125 A
	(220 V) 3 Poles in Series, 60 °C 105 A
	(220 V) 3 Poles in Series, 70 °C 90 A
	(72 V) 1-Pole, 40 °C 130 A
	(72 V) 1-Pole, 60 °C 105 A
	(72 V) 1-Pole, 70 °C 90 A
	(72 V) 2 Poles in Series, 40 °C 130 A
	(72 V) 2 Poles in Series, 60 °C 105 A
	(72 V) 2 Poles in Series, 70 °C 90 A
	(72 V) 3 Poles in Series, 40 °C 130 A
	(72 V) 3 Poles in Series, 60 °C 105 A
	(72 V) 3 Poles in Series, 70 °C 90 A
Rated Operational Current DC-3 (I_e)	(110 V) 2 Poles in Series, 40 °C 130 A
	(110 V) 2 Poles in Series, 60 °C 105 A
	(110 V) 2 Poles in Series, 70 °C 90 A
	(110 V) 3 Poles in Series, 40 °C 130 A
	(110 V) 3 Poles in Series, 60 °C 105 A
	(110 V) 3 Poles in Series, 70 °C 90 A
	(220 V) 3 Poles in Series, 40 °C 130 A
	(220 V) 3 Poles in Series, 60 °C 105 A
	(220 V) 3 Poles in Series, 70 °C 90 A
	(72 V) 1-Pole, 40 °C 130 A
	(72 V) 1-Pole, 60 °C 105 A
	(72 V) 1-Pole, 70 °C 90 A
	(72 V) 2 Poles in Series, 40 °C 130 A
	(72 V) 2 Poles in Series, 60 °C 105 A
	(72 V) 2 Poles in Series, 70 °C 90 A
	(72 V) 3 Poles in Series, 40 °C 130 A
	(72 V) 3 Poles in Series, 60 °C 105 A
	(72 V) 3 Poles in Series, 70 °C 90 A
Rated Operational Current DC-5 (I_e)	(110 V) 2 Poles in Series, 40 °C 130 A
	(110 V) 2 Poles in Series, 60 °C 105 A
	(110 V) 2 Poles in Series, 70 °C 90 A
	(110 V) 3 Poles in Series, 40 °C 130 A
	(110 V) 3 Poles in Series, 60 °C 105 A
	(110 V) 3 Poles in Series, 70 °C 90 A
	(220 V) 3 Poles in Series, 40 °C 130 A
	(220 V) 3 Poles in Series, 60 °C 105 A
	(220 V) 3 Poles in Series, 70 °C 90 A
	(72 V) 1-Pole, 40 °C 130 A
	(72 V) 1-Pole, 60 °C 105 A
	(72 V) 1-Pole, 70 °C 90 A
	(72 V) 2 Poles in Series, 40 °C 130 A
	(72 V) 2 Poles in Series, 60 °C 105 A
	(72 V) 2 Poles in Series, 70 °C 90 A
	(72 V) 3 Poles in Series, 40 °C 130 A
	(72 V) 3 Poles in Series, 60 °C 105 A
	(72 V) 3 Poles in Series, 70 °C 90 A
Rated Operational Current DC-13 (I_e)	(24 V) 6 A / 144 W
	(48 V) 2.8 A / 134 W
	(72 V) 1 A / 72 W
	(110 V) 1.1 A / 121 W
	(125 V) 0.55 A / 69 W
	(220 V) 0.27 A / 60 W
	(250 V) 0.27 A / 68 W
	(400 V) 0.15 A / 60 W
	(500 V) 0.13 A / 65 W
	(600 V) 0.1 A / 60 W
Rated Operational Power AC-3 (P_e)	(415 V) 55 kW
	(440 V) 55 kW
	(500 V) 55 kW
	(690 V) 55 kW
	(1000 V) 40 kW
	(380 / 400 V) 45 kW
	(380 / 400 V) 55 kW
	(220 / 230 / 240 V) 25 kW
	(220 / 230 / 240 V) 30 kW
Rated Operational Power AC-3e (P_e)	(415 V) 55 kW
	(440 V) 55 kW
	(500 V) 55 kW
	(690 V) 55 kW
	(380 / 400 V) 45 kW
	(380 / 400 V) 55 kW
	(220 / 230 / 240 V) 25 kW
	(220 / 230 / 240 V) 30 kW
Rated Short-time Withstand Current Low Voltage (I_cw)	at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 780 A
	at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 140 A
	at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 300 A
	at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1200 A
	at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 450 A
	for 0.1 s 140 A
	for 1 s 100 A
Maximum Breaking Capacity	cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1150 A
	cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 750 A
Rated Insulation Voltage (U_i)	acc. to IEC 60947-4-1 1000 V
	acc. to IEC 60947-5-1 690 V
	acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (U_imp)	8 kV
Maximum Electrical Switching Frequency	(AC-1) 600 cycles per hour
	(AC-15) 1200 cycles per hour
	(AC-2 / AC-4) 150 cycles per hour
	(AC-3) 1200 cycles per hour
	(DC-13) 900 cycles per hour
Maximum Mechanical Switching Frequency	3600 cycles per hour
Rated Control Circuit Voltage (U_c)	50 Hz 100 ... 250 V
	60 Hz 100 ... 250 V
	DC Operation 100 ... 250 V
Power Loss	at 6 A per Pole 0.1 W
	at Rated Operating Conditions AC-1 per Pole 8.2 W
	at Rated Operating Conditions AC-3 per Pole 4.5 W
Operate Time	Between Coil De-energization and NC Contact Closing 19 ... 105 ms
	Between Coil De-energization and NO Contact Opening 17 ... 100 ms
	Between Coil Energization and NC Contact Opening 38 ... 95 ms
	Between Coil Energization and NO Contact Closing 42 ... 100 ms
Mounting on DIN Rail	TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Mounting by Screws (not supplied)	2 x M4 or 2 x M6 Screws Placed Diagonally
Connecting Capacity Main Circuit	Flexible with Ferrule 1/2x 6 ... 50 mm²
	Flexible with Insulated Ferrule 1/2x 6 ... 50 mm²
	Rigid Stranded 1x 6 ... 70 mm²
	Rigid Stranded 2x 6 ... 50 mm²
Connecting Capacity Auxiliary Circuit	Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
	Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
	Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
	Rigid 1/2x 1 ... 2.5 mm²
Connecting Capacity Control Circuit	Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
	Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
	Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
	Rigid 1/2x 1 ... 2.5 mm²
Wire Stripping Length	Auxiliary Circuit 10 mm
	Control Circuit 10 mm
	Main Circuit 17 mm
Degree of Protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
	acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
	acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Tightening Torque	Auxiliary Circuit 1.2 N·m
	Control Circuit 1.2 N·m
	Main Circuit 6 N·m
Terminal Type	Screw Terminals
Product Name	Block Contactor
Technical UL/CSA
Maximum Operating Voltage UL/CSA	Main Circuit 600 V
General Use Rating UL/CSA	(600 V AC) 115 A
Horsepower Rating UL/CSA	(120 V AC) Single Phase 7-1/2 hp
	(200 ... 208 V AC) Three Phase 30 hp
	(220 ... 240 V AC) Three Phase 40 hp
	(240 V AC) Single Phase 20 hp
	(440 ... 480 V AC) Three Phase 75 hp
	(550 ... 600 V AC) Three Phase 75 hp
Connecting Capacity Main Circuit UL/CSA	Rigid Stranded 1/2x 6-1 AWG
Tightening Torque UL/CSA	Auxiliary Circuit 11 in·lb
	Control Circuit 11 in·lb
	Main Circuit 53 in·lb
Full Load Amps Motor Use	(120 V AC) Single Phase 80 A
	(200 ... 208 V AC) Three Phase 92 A
	(220 ... 240 V AC) Three Phase 80 A
	(240 V AC) Single Phase 88 A
	(440 ... 480 V AC) Three Phase 77 A
	(550 ... 600 V AC) Three Phase 77 A
Environmental
Ambient Air Temperature	Close to Contactor Fitted with Thermal O/L Relay -40 ... 70 °C
	Close to Contactor without Thermal O/L Relay -40 ... 70 °C
	Close to Contactor for Storage -60 ... +80 °C
Climatic Withstand	Category B according to IEC 60947-1 Annex Q
Maximum Operating Altitude Permissible	Without Derating 3000 m
Resistance to Shock acc. to IEC 60068-2-27	Closed, Shock Direction: A 25 g
	Closed, Shock Direction: B1 25 g
	Closed, Shock Direction: B2 15 g
	Closed, Shock Direction: C1 25 g
	Closed, Shock Direction: C2 25 g
Resistance to Vibrations	3g Closed Position & 3g Open Position 5 ... 300 Hz
Pollution Degree	3
Material Compliance
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
REACH Declaration	2CMT2021-006202
RoHS Declaration	2CMT2021-006277
Toxic Substances Control Act - TSCA	2CMT2023-006525
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutions
ABB EcoSolutions	Yes
ABB Site Meeting Group Waste To Landfill Target	No non-hazardous waste is sent to a landfill
End Of Life Disassembling Instructions	1SBC101081M6801
Environmental Product Declaration - EPD	1SBD250584E2000
Improved Energy Efficiency for Customers	Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
	Product Efficiency - Product requires less energy to operate compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555	Design for Closing Resource Loops - Standard EN45555 - 91.9 %
Certificates and Declarations
A2L Certificate – UL	9AKK108469A4890
	9AKK108469A4892
ABS Certificate	ABS_20-2060694-PDA
BV Certificate	BV_2634H36994A
CB Certificate	CB_SE-96557
CCC Certificate	CCC_2024010304656667
Declaration of Conformity - CCC	2020980304001255
Declaration of Conformity - CE	1SBD250022U1000
Declaration of Conformity - UKCA	1SBD250044U1000
DNV Certificate	DNV_TAE00001AF-4
LR Certificate	LRS_LR23403517TA-02
RMRS Certificate	RMRS_1802705280
UL Certificate	UL-US-L312527-1141-10303102-19
	UL-CA-L312527-4141-10303102-19
UL Listing Card	E312527
Container Information
Package Level 1 Units	box 1 piece
Package Level 1 Width	167 mm
Package Level 1 Depth / Length	180 mm
Package Level 1 Height	97 mm
Package Level 1 Gross Weight	1.36 kg
Package Level 1 EAN	3471523158030
Package Level 2 Units	box 6 piece
Package Level 2 Width	250 mm
Package Level 2 Depth / Length	300 mm
Package Level 2 Height	300 mm
Package Level 2 Gross Weight	8.16 kg
External Classifications and Standards
Object Classification Code	Q
ETIM 7	EC000066 - Power contactor, AC switching
ETIM 8	EC000066 - Power contactor, AC switching
ETIM 9	EC000066 - Power contactor, AC switching
eClass	V11.0 : 27371003
UNSPSC	39121529
IDEA Granular Category Code (IGCC)	4758 >> Iec Contactors
E-Number (Finland)	3708072
E-Number (Sweden)	3210676

ETIM for 1SBL407082R1322 Low-voltage industrial controls and switchgear (EC000066)
Feature Name	Feature Value
Rated control supply voltage AC 50 Hz (EF003978)	100 V
Rated control supply voltage AC 60 Hz (EF003979)	100 V
Rated control supply voltage DC (EF003980)	100 V
Voltage type for actuating (EF008242)	AC/DC
Rated operation current Ie at AC-1, 400 V (EF001393)	130 A
Rated operation current Ie at AC-3, 400 V (EF001392)	105 A
Rated operation power at AC-3, 400 V (EF001364)	45 kW
Modular version (EF001126)	No
Number of auxiliary contacts as normally open contact (EF001376)	2
Number of auxiliary contacts as normally closed contact (EF001377)	2
Type of electrical connection of main circuit (EF006819)	Screw connection
Number of normally closed contacts as main contact (EF001375)	0
Number of normally open contacts as main contact (EF001374)	3

Datasheet - PDF

▲

Title:	Size:	Type:
PDF CATALOGUE MOTOR PROTECTION EN.pdf	240 Mbytes

Reviews (0) ▲

No customer reviews for the moment.

Add Review

Add Review

hide form

Rating:
Name:
Email:
Subject:
Text:
Do you recommend this product to buy? Yes No

	Add review

Latest Customer Reviews

All ratings we receive from the items we offer are real and verified. A small gesture, but a lot of value. That's why we thank you for that minute you invest in leaving us your opinion and qualification about the products, because it helps us to continue improving and to offer you a service of even higher quality.

5 / 5 merci beaucoup

— sotitradim 11/29/2025
Customer rating:

Product: SL20,MNM,IP42,300lm,1H SL2MNM42H1C EATON ELEC
4 / 5 Amazing to use it

— B rahul 10/04/2025
Customer rating:

Product: 661601 LEGRAND URA21LED 70LM 1H IP42 NP
5 / 5 good

— B rahul 09/18/2025
Customer rating:

Product: 31295 WÖHNER Class CC 1p, 30A / 600V fus
5 / 5 Usefull product

— B rahul 09/18/2025
Customer rating:

Product: 2CSF202004R1250 ABB FH202 AC-25/0,03 Residual
