> EATON - MOELLER series>Auxiliares de mando y señalización >M22-E6 216547 M22-E6Q ELECTRIC Botonera empotrable 6 orificio Para M22
Anterior producto Siguiente producto

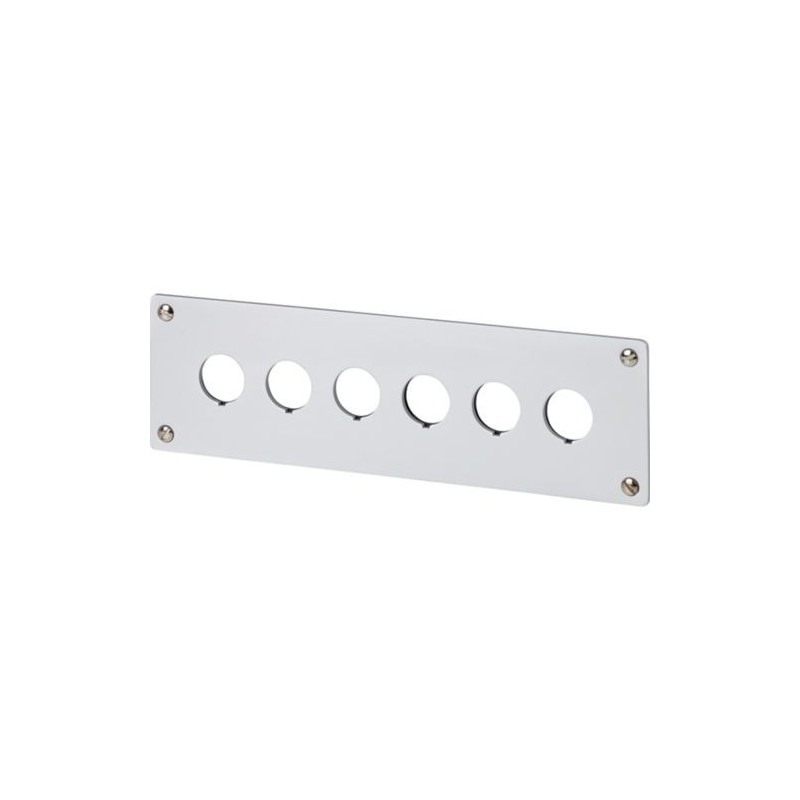

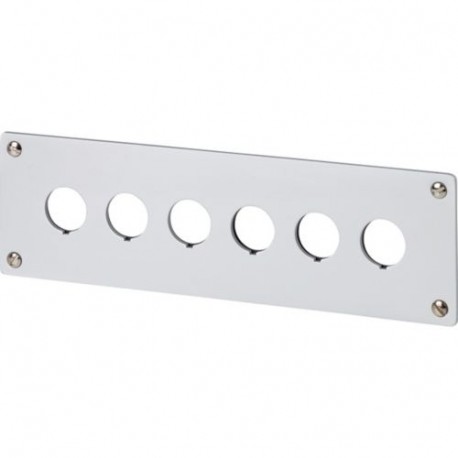

M22-E6 216547 M22-E6Q EATON ELECTRIC Botonera empotrable 6 orificio Para M22 Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

M22-E6 216547 M22-E6Q EATON ELECTRIC Botonera empotrable 6 orificio Para M22

M22-E6

216547

M22-E6Q

EATON-MOELLER

Botonera empotrable; 6 orificio; Para M22

Eaton Moeller® series M22 Flush mounting plate, 6 mounting locations

Más detalles


Interruptores de baja tensión > Tapa de montaje de dispositivos de control

Auxiliares de mando y señalización

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $34.06
Precio unitario: $34.06

Cantidad Precio
1+$34.06
2+$34.07
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Más vendidos

▲

Comprados juntos habitualmente

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton Moeller® series M22 Accessory Flush mounting plate
Catalog Number
216547
EAN
4015082165475
Product Length/Depth
3 mm
Product Height
72 mm
Product Width
237 mm
Product Weight
0.193 kg
Certifications
CE
UL
UL Category Control No.: NKCR
CSA
CSA-C22.2 No. 94-91
CSA Class No.: 3211-03
IEC/EN 60947-5
UL 508
CSA-C22.2 No. 14-05
UL File No.: E29184
CSA File No.: 012528
Model Code
M22-E6

Features & Functions

Color
Gray
Material
Aluminum
Number of locations
6
RAL-number
7035

General

Degree of protection
Only in conjunction with a suitable enclosure and correct mounting
IP Other
NEMA 4X, 13
Opening diameter
22 mm
Type
Surface mounting enclosure
Used with
Modular pushbutton

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Communication

Connection to SmartWire-DT
No

Contacts

Force for positive opening - min
0 N

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Datasheet - PDF

▲
Título: Tamaño: Tipo:
PDF CATALOGO EATON CONTROL Y AUTOMATIZACION ES.pdf 9 Mbytes
PDF CATALOGUE EATON EN.pdf 51 Mbytes
M22-E6 M22-E6Q 216547 DE_216523.pdf 1 Mbytes M22-E6 M22-E6Q 216547 DE_216523.pdf
