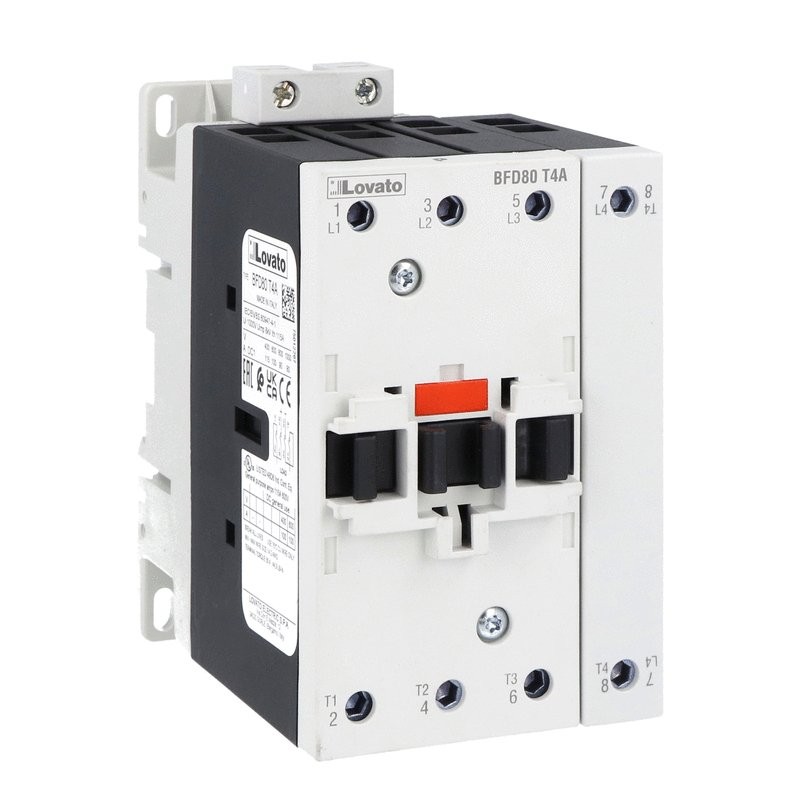

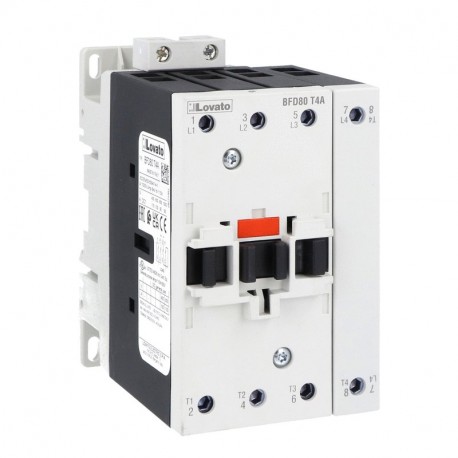

BFD80T4A230 LOVATO FOUR-POLE CONTACTOR, 60A/1000V DC1, AC COIL, 230VAC 50/60HZ
BFD80T4A230
LOVATO ELECTRIC
FOUR-POLE CONTACTOR, 60A/1000V DC1, AC COIL, 230VAC 50/60HZ
Контактор Тетраполярная СО1 600В 100А катушка 230В AC
Промышленные контакторы и аксессуары - Lovato Electric
* Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами LOVATO ELECTRIC
Описание
▲| Код заказа | BFD80T4A230 |
| Вес [г] | 1247.6 |
| Количество в упаковке | 1 |
| Кратное количество коробок в заказе | 1 |
| Размеры упаковки [мм] | 141X080X120 |
| Объем [cm³] | 1354 |
| Штрих-код [EAN13] | 8013975224335 |
| Код ТНВД | 85365080 |
Размеры
Электросхема
Сертификаты:
cULus
cULus
Соответствие:
IEC/EN 60947-1
IEC/EN 60947-4-1
UL 60947-4-1
CSA C22.2 n° 60947-1
CSA C22.2 n° 60947-4-1.
IEC/EN 60947-1
IEC/EN 60947-4-1
UL 60947-4-1
CSA C22.2 n° 60947-1
CSA C22.2 n° 60947-4-1.
| Product designation | Power contactor | |||
| Product type designation | BFD80 | |||
| Contact characteristics | ||||
| Number of poles | nr. | 4 | ||
| Rated insulation voltage Ui IEC/EN | V | 1000 | ||
| Rated impulse withstand voltage Uimp | kV | 8 | ||
| Operational frequency | ||||
| min | Hz | 25 | ||
| max | Hz | 400 | ||
| Conventional free air thermal current Ith IEC/EN | A | 115 | ||
| Operational current Ie | ||||
| Operational current AC-1 (≤40°C) | A | 115 | ||
| Short-time allowable current for 10s (IEC/EN60947-1) | A | 640 | ||
| Protection fuse | ||||
| gG (IEC) | A | 125 | ||
| Making capacity (RMS value) | A | 800 | ||
| Breaking capacity at voltage | ||||
| Breaking capacity 440V | A | 640 | ||
| Breaking capacity 500V | A | 625 | ||
| Breaking capacity 690V | A | 456 | ||
| Resistance per pole (average value) | mΩ | 0.6 | ||
| Tightening torque for terminals | ||||
| min | Nm | 4 | ||
| max | Nm | 5 | ||
| min | Ibft | 2.95 | ||
| max | Ibft | 3.69 | ||
| Tightening torque for coil terminal | ||||
| min | Nm | 0.8 | ||
| max | Nm | 1 | ||
| min | Ibft | 0.8 | ||
| max | Ibft | 0.74 | ||
| Max number of wires simultaneously connectable | nr. | 2 | ||
| Conductor section | ||||
| AWG | ||||
| min | 14 | |||
| max | 2 | |||
| Flexible w/o lug conductor section | ||||
| min | mm² | 1.5 | ||
| max | mm² | 35 | ||
| Flexible c/w lug conductor section | ||||
| min | mm² | 1.5 | ||
| max | mm² | 35 | ||
| Power terminal protection according to IEC/EN 60529 | IP20 front | |||
| Auxiliary contact characteristics | ||||
| Operational current AC-1 (≤40°C) | A | 115 | ||
| Operating current DC13 | ||||
| 110V | A | Screw / DIN rail 35mm | ||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -50 | ||
| max | °C | 70 | ||
| Storage temperature | ||||
| min | °C | -60 | ||
| max | °C | 80 | ||
| Max altitude | m | 3000 | ||
| Operational position | ||||
| Operating position normal | vertical plan | |||
| Operating position allowable | ±30° | |||
| Mounting | Screw / DIN rail 35mm | |||
| Weight | g | 12476 | ||
| Operations | ||||
| Mechanical life | Cycles | 15000000 | ||
| Electrical life | Cycles | 1300000 | ||
| Safety related data | ||||
| Performance level B10d according to EN/ISO 13489-1 | ||||
| rated load | Cicli | 1300000 | ||
| mechanical load | Cicli | 15000000 | ||
| Mirror contats according to IEC/EN 609474-4-1 | yes | |||
| EMC compatibility | yes | |||
| AC coil operating | ||||
| AC operating voltage | ||||
| of 50/60Hz coil powered at 50Hz | ||||
| pick-up | ||||
| min | %Us | 0.8 | ||
| max | %Us | 1.1 | ||
| drop-out | ||||
| min | %Us | 0.2 | ||
| max | %Us | 0.55 | ||
| of 50/60Hz coil powered at 60Hz | ||||
| pick-up | ||||
| min | %Us | 0.85 | ||
| max | %Us | 1.1 | ||
| drop-out | ||||
| min | %Us | 0.4 | ||
| max | %Us | 0.55 | ||
| of 60Hz coil powered at 60Hz | ||||
| pick-up | ||||
| min | %Us | 0.8 | ||
| max | %Us | 1.1 | ||
| drop-out | ||||
| min | %Us | 0.2 | ||
| max | %Us | 0.55 | ||
| AC operating voltage | ||||
| of 50/60Hz coil powered at 50Hz | ||||
| in-rush | VA | 210 | ||
| holding | VA | 15 | ||
| of 50/60Hz coil powered at 60Hz | ||||
| in-rush | VA | 195 | ||
| holding | VA | 13 | ||
| of 60Hz coil powered at 60Hz | ||||
| in-rush | VA | 210 | ||
| holding | VA | 15 | ||
| Dissipation at holding ≤20°C 50Hz | W | 5.0 | ||
| Max cycles frequency | ||||
| Mechanical operations | Cycles/h | 3600 | ||
| Operating times | ||||
| Average time for Us control | ||||
| in AC | ||||
| Closing NO | ||||
| min | ms | 12 | ||
| max | ms | 28 | ||
| Opening NO | ||||
| min | ms | 8 | ||
| max | ms | 22 | ||
| UL technical data | ||||
| Full-load current (FLA) for three-phase AC motor | ||||
| at 480V | A | 77 | ||
| at 600V | A | 77 | ||
| Yielded mechanical performance | ||||
| for three-phase AC motor | ||||
| at 200/208V | hp | 25 | ||
| at 220/230V | hp | 30 | ||
| at 460/480V | hp | 60 | ||
| at 575/600V | hp | 75 | ||
| General USE | ||||
| Contactor | ||||
| AC current | A | 32 | ||
| Other features | ||||
| Pollution degree | 3 | |||
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| BFD80T4A230 BFD80T4A230 02-__________-02-______-2018_RU.pdf | 6 Mbytes |
 |
