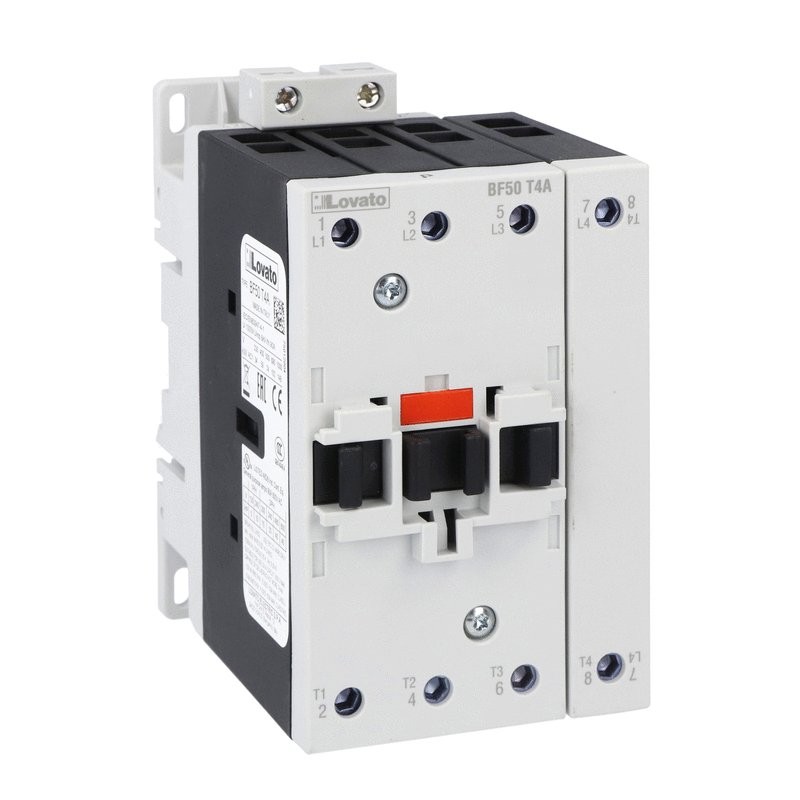

BF50T4A048 LOVATO Параметры 48VAC
BF50T4A048
LOVATO ELECTRIC
Параметры 48VAC
4P КОНТАКТОР 90A AC1 48VAC 50/60HZ
ЧЕТЫРЕХПОЛЮСНЫЙ КОНТАКТОР, РАБОЧИЙ ТОК IEC ITH (AC1) = 90A, КАТУШКА ПЕРЕМЕННОГО ТОКА 50/60 ГЦ, 48 В ПЕРЕМЕННОГО ТОКА
Промышленные контакторы и аксессуары - Lovato Electric
* Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами LOVATO ELECTRIC
Best sellers
▲Описание
▲| Код заказа | BF50T4A048 |
| Вес [г] | 1240 |
| Количество в упаковке | 1 |
| Кратное количество коробок в заказе | 1 |
| Размеры упаковки [мм] | 141X080X120 |
| Объем [cm³] | 1354 |
| Штрих-код [EAN13] | 8013975223116 |
| Код ТНВД | 85365080 |
Размеры
Электросхема
Сертификаты:
cULus
CCC
cULus
CCC
Соответствие:
IEC/EN 60947-1
IEC/EN 60947-4-1
UL 60947-1
UL 60947-4-1
CSA C22.2 n° 60947-1
CSA C22.2 n° 60947-4-1
IEC/EN 60947-1
IEC/EN 60947-4-1
UL 60947-1
UL 60947-4-1
CSA C22.2 n° 60947-1
CSA C22.2 n° 60947-4-1
| Product designation | Power contactor | |||
| Product type designation | BF50 | |||
| Contact characteristics | ||||
| Number of poles | nr. | 4 | ||
| Rated insulation voltage Ui IEC/EN | V | 1000 | ||
| Rated impulse withstand voltage Uimp | kV | 8 | ||
| Operational frequency | ||||
| min | Hz | 25 | ||
| max | Hz | 400 | ||
| IEC Conventional free air thermal current Ith | A | 90 | ||
| Operational current Ie | ||||
| AC-1 (≤40°C) | A | 90 | ||
| AC-1 (≤55°C) | A | 75 | ||
| AC-1 (≤70°C) | A | 65 | ||
| AC-3 (≤440V ≤55°C) | A | 50 | ||
| AC-4 (400V) | A | 28 | ||
| Rated operational power AC-1 (T≤40°C) | ||||
| 230V | kW | 34 | ||
| 400V | kW | 59 | ||
| 500V | kW | 74 | ||
| 690V | kW | 102 | ||
| IEC max current Ie in DC1 with L/R ≤ 1ms with 1 poles in series | ||||
| ≤24V | A | 45 | ||
| 48V | A | 40 | ||
| 75V | A | 40 | ||
| 110V | A | 8 | ||
| 220V | A | – | ||
| IEC max current Ie in DC1 with L/R ≤ 1ms with 2 poles in series | ||||
| ≤24V | A | 60 | ||
| 48V | A | 60 | ||
| 75V | A | 60 | ||
| 110V | A | 50 | ||
| 220V | A | 7 | ||
| IEC max current Ie in DC1 with L/R ≤ 1ms with 3 poles in series | ||||
| ≤24V | A | 60 | ||
| 48V | A | 60 | ||
| 75V | A | 60 | ||
| 110V | A | 55 | ||
| 220V | A | 75 | ||
| IEC max current Ie in DC1 with L/R ≤ 1ms with 4 poles in series | ||||
| ≤24V | A | 60 | ||
| 48V | A | 60 | ||
| 75V | A | 60 | ||
| 110V | A | 60 | ||
| 220V | A | 90 | ||
| IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 1 poles in series | ||||
| ≤24V | A | 30 | ||
| 48V | A | 25 | ||
| 75V | A | 22 | ||
| 110V | A | 3 | ||
| 220V | A | – | ||
| IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 2 poles in series | ||||
| ≤24V | A | 35 | ||
| 48V | A | 35 | ||
| 75V | A | 30 | ||
| 110V | A | 25 | ||
| 220V | A | 5 | ||
| IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 3 poles in series | ||||
| ≤24V | A | 50 | ||
| 48V | A | 50 | ||
| 75V | A | 45 | ||
| 110V | A | 30 | ||
| 220V | A | 40 | ||
| IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 4 poles in series | ||||
| ≤24V | A | 55 | ||
| 48V | A | 55 | ||
| 75V | A | 55 | ||
| 110V | A | 45 | ||
| 220V | A | 50 | ||
| Short-time allowable current for 10s (IEC/EN60947-1) | A | 400 | ||
| Protection fuse | ||||
| gG (IEC) | A | 100 | ||
| aM (IEC) | A | 50 | ||
| Making capacity (RMS value) | A | 500 | ||
| Breaking capacity at voltage | ||||
| 440V | A | 400 | ||
| 500V | A | 352 | ||
| 690V | A | 312 | ||
| Resistance per pole (average value) | mΩ | 0.8 | ||
| Power dissipation per pole (average value) | ||||
| Ith | W | 6.5 | ||
| AC3 | W | 2 | ||
| Tightening torque for terminals | ||||
| min | Nm | 4 | ||
| max | Nm | 5 | ||
| min | Ibin | 2.95 | ||
| max | Ibin | 3.69 | ||
| Tightening torque for coil terminal | ||||
| min | Nm | 0.8 | ||
| max | Nm | 1 | ||
| min | Ibft | 0.8 | ||
| max | Ibft | 0.74 | ||
| Max number of wires simultaneously connectable | nr. | 2 | ||
| Conductor section | ||||
| Flexible w/o lug conductor section | ||||
| min | mm² | 1.5 | ||
| max | mm² | 35 | ||
| Flexible c/w lug conductor section | ||||
| min | mm² | 1.5 | ||
| max | mm² | 35 | ||
| Power terminal protection according to IEC/EN 60529 | IP20 front | |||
| Mechanical features | ||||
| Operating position | ||||
| normal | vertical plan | |||
| allowable | ±30° | |||
| Fixing | Screw / DIN rail 35mm | |||
| Weight | g | 1240 | ||
| Operations | ||||
| Mechanical life | cycles | 15000000 | ||
| Electrical life | cycles | 1400000 | ||
| Safety related data | ||||
| Performance level B10d according to EN/ISO 13489-1 | ||||
| rated load | cycles | 1400000 | ||
| mechanical load | cycles | 15000000 | ||
| Mirror contats according to IEC/EN 609474-4-1 | yes | |||
| EMC compatibility | yes | |||
| AC coil operating | ||||
| Rated AC voltage at 50/60Hz | V | 48 | ||
| AC operating voltage | ||||
| of 50/60Hz coil powered at 50Hz | ||||
| pick-up | ||||
| min | %Us | 80 | ||
| max | %Us | 110 | ||
| drop-out | ||||
| min | %Us | 20 | ||
| max | %Us | 55 | ||
| of 50/60Hz coil powered at 60Hz | ||||
| pick-up | ||||
| min | %Us | 85 | ||
| max | %Us | 110 | ||
| drop-out | ||||
| min | %Us | 40 | ||
| max | %Us | 55 | ||
| AC average coil consumption at 20°C | ||||
| of 50/60Hz coil powered at 50Hz | ||||
| in-rush | VA | 210 | ||
| holding | VA | 15 | ||
| of 50/60Hz coil powered at 60Hz | ||||
| in-rush | VA | 195 | ||
| holding | VA | 13 | ||
| of 60Hz coil powered at 60Hz | ||||
| in-rush | VA | 210 | ||
| holding | VA | 15 | ||
| Dissipation at holding ≤20°C 50Hz | W | 5 | ||
| Max cycles frequency | ||||
| Mechanical operation | cycles/h | 3600 | ||
| Operating times | ||||
| Average time for Us control | ||||
| in AC | ||||
| Closing NO | ||||
| min | ms | 12 | ||
| max | ms | 28 | ||
| Opening NO | ||||
| min | ms | 8 | ||
| max | ms | 22 | ||
| in DC | ||||
| Closing NO | ||||
| min | ms | 40 | ||
| max | ms | 85 | ||
| Opening NO | ||||
| min | ms | 20 | ||
| max | ms | 55 | ||
| UL technical data | ||||
| Full-load current (FLA) for three-phase AC motor | ||||
| at 480V | A | 52 | ||
| at 600V | A | 41 | ||
| Yielded mechanical performance | ||||
| for single-phase AC motor | ||||
| 110/120V | HP | 5 | ||
| 230V | HP | 10 | ||
| for three-phase AC motor | ||||
| 200/208V | HP | 15 | ||
| 220/230V | HP | 20 | ||
| 460/480V | HP | 40 | ||
| 575/600V | HP | 40 | ||
| General USE | ||||
| Contactor | ||||
| AC current | A | 90 | ||
| Short-circuit protection fuse, 600V | ||||
| High fault | ||||
| Short circuit current | kA | 100 | ||
| Fuse rating | A | 150 | ||
| Fuse class | J | |||
| Standard fault | ||||
| Short circuit current | kA | 5 | ||
| Fuse rating | A | 150 | ||
| Fuse class | RK5 | |||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -50 | ||
| max | °C | 70 | ||
| Storage temperature | ||||
| min | °C | -60 | ||
| max | °C | 80 | ||
| Max altitude | m | 3000 | ||
| Resistance & Protection | ||||
| Pollution degree | 3 | |||
| ETIM classification | ||||
| ETIM 8.0 | EC000066 - Power contactor, AC switching | |||
