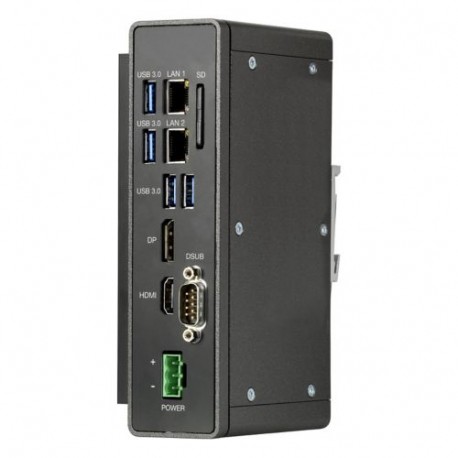

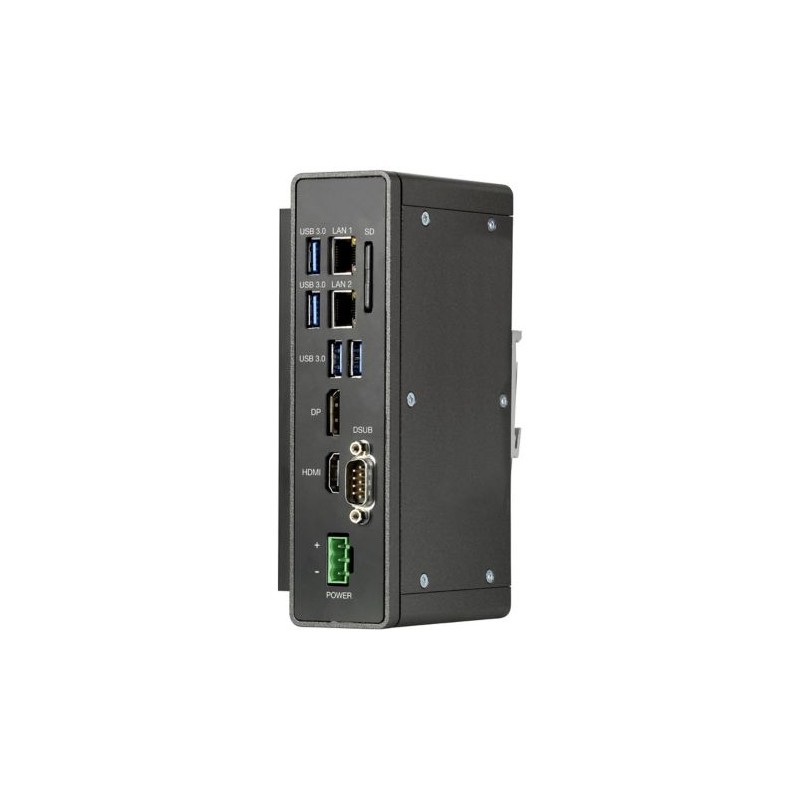

XP-504-BOXPC-A10-A00-2V EP-400012 Y7-400012 EATON ELECTRIC PC Box со средой выполнения Visual Designer
XP-504-BOXPC-A10-A00-2V
EP-400012
Y7-400012
EATON-MOELLER
PC Box со средой выполнения Visual Designer
Panel PC
Коробочный ПК, 2 x Ethernet, 4 x USB3.0, 1 x RS-232, Windows 10, ВИЗУАЛЬНЫЙ ДИЗАЙНЕР
Программируемые логические контроллеры (ПЛК) > Промышленный ПК
Сенсорные панели HMI
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами EATON-MOELLER
Best sellers
▲Описание
▲Panel PC
General specifications
Product name
Eaton XP Panel PC
Part no.
XP-504-BOXPC-A10-A00-2V
EAN
7640130100022
Product Length/Depth
55 millimetre
Product height
170 millimetre
Product width
92.3 millimetre
Product weight
1.15 kilogram
Certifications
CE
Product Tradename
XP
Product Type
Panel PC
Product Sub Type
None
Features & Functions
Features
Customer individual configuration
Fitted with:
Other storage media
General information
Degree of protection
NEMA 1
IP20
IP20
Degree of protection (front side)
IP20
Mounting method
Rail mounting possible
Wall mounting/direct mounting
Wall mounting/direct mounting
Protocol
EtherNet/IP
Voltage type
DC
Climatic environmental conditions
Operating temperature - min
0 °C
Operating temperature - max
45 °C
Electrical rating
Supply voltage at AC, 50 Hz - min
0 V AC
Supply voltage at AC, 50 Hz - max
0 V AC
Supply voltage at DC - min
20 V DC
Supply voltage at DC - max
28 V DC
Technical data ETIM 8.0
Programmable logic controllers PLC (EG000024) / Industrial PC (EC001413)
Information, communication and media technology / Computer system for industrial use / Industrial PC / Industrial PC (built-in) ([email protected] [ACM011012])
Supply voltage AC 50 Hz
0 - 0 V
Supply voltage AC 60 Hz
0 - 0 V
Supply voltage DC
20 - 28 V
Voltage type of supply voltage
DC
Number of HW-interfaces industrial Ethernet
2
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
1
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
4
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
0
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
Suitable for operating system Windows 9x
No
Suitable for operating system Windows 2000
No
Suitable for operating system Windows XP
No
Suitable for operating system Windows ME
No
Suitable for operating system Windows CE
No
Suitable for operating system Linux
No
Suitable for operating system Windows Vista
No
Suitable for operating system Windows 2003 Server
No
Suitable for operating system Windows 7
No
Suitable for operating system Windows 8
No
Suitable for other operating system
No
Preinstalled operating system
Windows 10
Max. main memory
8 MB
Degree of protection (IP)
IP20
Degree of protection (NEMA)
1
Operating temperature
0 - 45 °C
Construction type housing
Box
With hard disc
No
Processor type
Intel Atom
Processor clock rate
2 GHz
With graphic card
No
With sound card
No
With optical drive
No
With floppy disc drive
No
Number of free AGP-slots
0
Number of free PCI-slots
0
With other storage media
Yes
Number of free ISA-slots
0
Number of free PCMCIA-slots
0
Number of other free slots
0
Rail mounting possible
Yes
Wall mounting/direct mounting
Yes
Front built-in possible
No
Rack-assembly possible
No
Number of storage media bays
1
Suitable for safety functions
No
Width
92.3 mm
Height
170 mm
Depth
55 mm
Memory capacity hard disc
0.064 TB
| Характеристика | Значение |
|---|---|
| Supply voltage AC 50 Hz (EF007532) | 0 V |
| Supply voltage AC 60 Hz (EF007533) | 0 V |
| Supply voltage DC (EF007534) | 20 V |
| Voltage type (supply voltage) (EF002991) | DC |
| Number of HW-interfaces industrial Ethernet (EF003020) | 2 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 1 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces USB (EF003025) | 4 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces other (EF003027) | 0 |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for EtherCAT (EF017564) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | Yes |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for other bus systems (EF003062) | No |
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| Radio standard GSM (EF008524) | No |
| Radio standard UMTS (EF008525) | No |
| IO link master (EF007298) | No |
| Suitable for operating system Windows 9x (EF003041) | No |
| Suitable for operating system Windows 2000 (EF003043) | No |
| Suitable for operating system Windows XP (EF003044) | No |
| Suitable for operating system Windows ME (EF003045) | No |
| Suitable for operating system Windows CE (EF003046) | No |
| Suitable for operating system Linux (EF003047) | No |
| Suitable for operating system Windows Vista (EF007091) | No |
| Suitable for operating system Windows 2003 Server (EF007090) | No |
| Suitable for operating system Windows 7 (EF008526) | No |
| Suitable for operating system Windows 8 (EF009923) | No |
| Suitable for other operating system (EF003048) | No |
| Preinstalled operating system (EF007535) | Windows 10 |
| Max. main memory (EF003123) | 8 MB |
| Degree of protection (IP) (EF005474) | IP20 |
| Degree of protection (NEMA) (EF011959) | 1 |
| Operating temperature (EF002393) | 0 °C |
| Construction type housing (EF004008) | Box |
| With hard disc (EF002000) | No |
| Processor type (EF003122) | Intel Atom |
| Processor clock rate (EF011957) | 2 GHz |
| With graphic card (EF003130) | No |
| With sound card (EF003131) | No |
| With optical drive (EF012515) | No |
| With floppy disc drive (EF003128) | No |
| Number of free AGP-slots (EF003133) | 0 |
| Number of free PCI-slots (EF003134) | 0 |
| With other storage media (EF003129) | Yes |
| Number of free ISA-slots (EF003135) | 0 |
| Number of free PCMCIA-slots (EF003136) | 0 |
| Number of other free slots (EF003137) | 0 |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting/direct mounting (EF007020) | Yes |
| Front built-in possible (EF007016) | No |
| Rack-assembly possible (EF007018) | No |
| Number of storage media bays (EF011958) | 1 |
| Suitable for safety functions (EF001597) | No |
| Width (EF000008) | 92.3 mm |
| Height (EF000040) | 170 mm |
| Depth (EF000049) | 55 mm |
| Memory capacity hard disc (EF004682) | 0.064 TB |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XP-504-BOXPC-A10-A00-2V Y7-400012 EP-400012 RU_EP-400012.pdf | 110 Kbytes |
|
