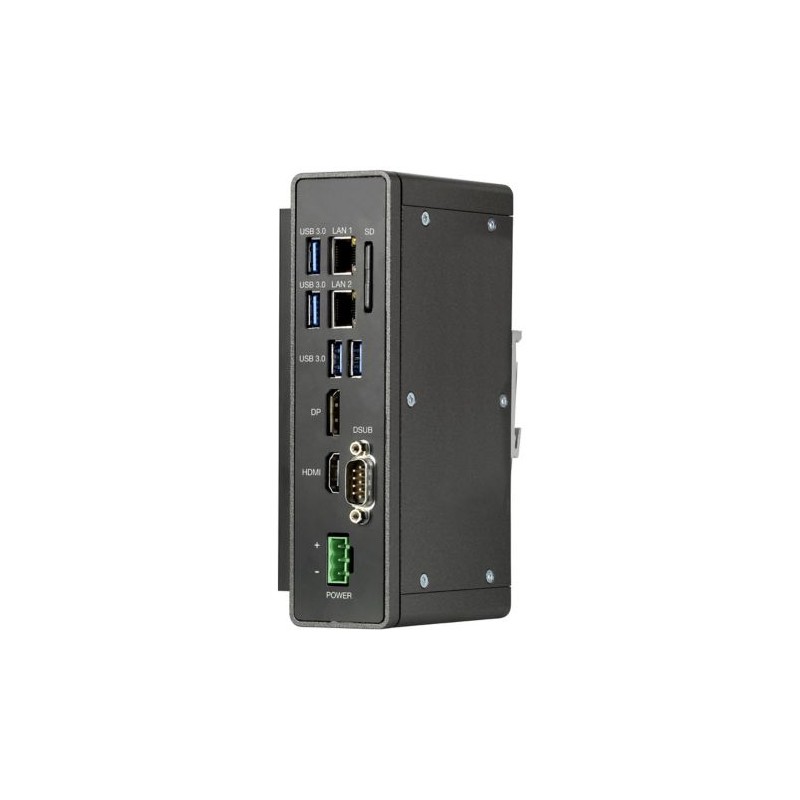

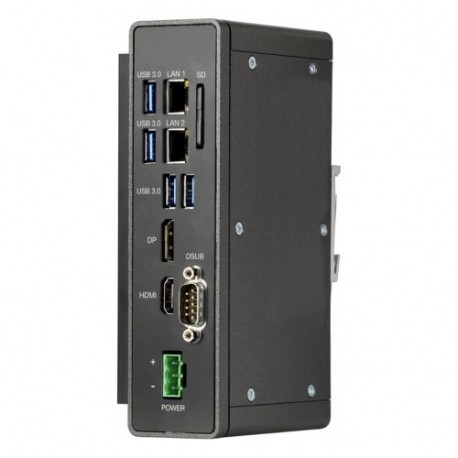

XP-504-BOXPC-A10-A00-2V EP-400012 Y7-400012 EATON ELECTRIC PC Box with Visual Designer Runtime
XP-504-BOXPC-A10-A00-2V
EP-400012
Y7-400012
EATON-MOELLER
PC Box with Visual Designer Runtime
Eaton Box-PC, 2 x Ethernet, 4 x USB3.0, 1 x RS-232, Windows 10, VISUAL DESIGNER
PLC's > Industrial PC
HMI Touch Terminals
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product Name
Eaton XP Panel PC
Catalog Number
EP-400012
Model Code
XP-504-BOXPC-A10-A00-2V
EAN
7640130100022
Product Length/Depth
55 mm
Product Height
170 mm
Product Width
92.3 mm
Product Weight
1.15 kg
Certifications
CE
UKCA
UL
UL File No.: E205091
Certified by UL for use in Canada
UL report applies to both US and Canada
UL 61010-1
RoHS
UKCA
UL
UL File No.: E205091
Certified by UL for use in Canada
UL report applies to both US and Canada
UL 61010-1
RoHS
Features & Fuctions
Enclosure material
Aluminum (die-cast)
Features
Customer individual configuration
Fitted with:
Other storage media
General
Degree of protection
NEMA 1
IP20
IP20
Degree of protection (front side)
IP20
Mounting method
Rail mounting possible
Wall mounting/direct mounting
Wall mounting/direct mounting
Number of slots
1 (for SD-Card)
Product category
Panel PC
Protocol
EtherNet/IP
Software
VISUAL DESIGNER
Type
Industrial PC
Voltage type
DC
Climatic environmental conditions
Ambient operating temperature - min
0 °C
Ambient operating temperature - max
50 °C
Ambient storage temperature - min
-20 °C
Ambient storage temperature - max
60 °C
Environmental conditions
Condensation: Non-condensing
Operating temperature - min
0 °C
Operating temperature - max
45 °C
Electrical rating
Rated operational voltage
24 V DC (power-supply - safety extra low voltage)
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at DC - min
20 VDC
Supply voltage at DC - max
28 VDC
System
Battery runtime
5 years typ.
Operating system
Windows 10
Design verification
Static heat dissipation, non-current-dependent Pvs
31.2 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Is the panel builder's responsibility.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Feature Name | Feature Value |
|---|---|
| Supply voltage AC 50 Hz (EF007532) | 0 V |
| Supply voltage AC 60 Hz (EF007533) | 0 V |
| Supply voltage DC (EF007534) | 20 V |
| Voltage type (supply voltage) (EF002991) | DC |
| Number of HW-interfaces industrial Ethernet (EF003020) | 2 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 1 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces USB (EF003025) | 4 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces other (EF003027) | 0 |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for EtherCAT (EF017564) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | Yes |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for other bus systems (EF003062) | No |
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| Radio standard GSM (EF008524) | No |
| Radio standard UMTS (EF008525) | No |
| IO link master (EF007298) | No |
| Suitable for operating system Windows 9x (EF003041) | No |
| Suitable for operating system Windows 2000 (EF003043) | No |
| Suitable for operating system Windows XP (EF003044) | No |
| Suitable for operating system Windows ME (EF003045) | No |
| Suitable for operating system Windows CE (EF003046) | No |
| Suitable for operating system Linux (EF003047) | No |
| Suitable for operating system Windows Vista (EF007091) | No |
| Suitable for operating system Windows 2003 Server (EF007090) | No |
| Suitable for operating system Windows 7 (EF008526) | No |
| Suitable for operating system Windows 8 (EF009923) | No |
| Suitable for other operating system (EF003048) | No |
| Preinstalled operating system (EF007535) | Windows 10 |
| Max. main memory (EF003123) | 8 MB |
| Degree of protection (IP) (EF005474) | IP20 |
| Degree of protection (NEMA) (EF011959) | 1 |
| Operating temperature (EF002393) | 0 °C |
| Construction type housing (EF004008) | Box |
| With hard disc (EF002000) | No |
| Processor type (EF003122) | Intel Atom |
| Processor clock rate (EF011957) | 2 GHz |
| With graphic card (EF003130) | No |
| With sound card (EF003131) | No |
| With optical drive (EF012515) | No |
| With floppy disc drive (EF003128) | No |
| Number of free AGP-slots (EF003133) | 0 |
| Number of free PCI-slots (EF003134) | 0 |
| With other storage media (EF003129) | Yes |
| Number of free ISA-slots (EF003135) | 0 |
| Number of free PCMCIA-slots (EF003136) | 0 |
| Number of other free slots (EF003137) | 0 |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting/direct mounting (EF007020) | Yes |
| Front built-in possible (EF007016) | No |
| Rack-assembly possible (EF007018) | No |
| Number of storage media bays (EF011958) | 1 |
| Suitable for safety functions (EF001597) | No |
| Width (EF000008) | 92.3 mm |
| Height (EF000040) | 170 mm |
| Depth (EF000049) | 55 mm |
| Memory capacity hard disc (EF004682) | 0.064 TB |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XP-504-BOXPC-A10-A00-2V Y7-400012 EP-400012 EN_EP-400011.pdf | 2 Mbytes |
|
