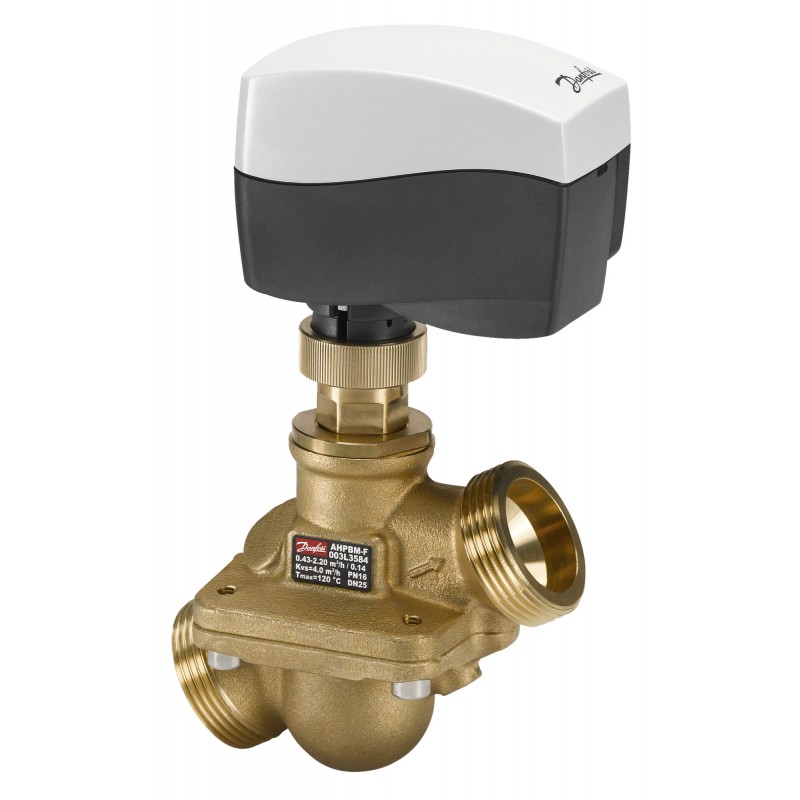

003L3584 DANFOSS HEATING AHPBM-F PN16 25/4/0,14 доб.thr. течь
003L3584
DANFOSS HEATING
AHPBM-F PN16 25/4/0,14 доб.thr. течь
AHPBM-F, PN 16, DN 25, Flow rate [m³/h]: 0.43 - 2.20, External Thread, G 1 1/4 A, Mounting version: Flow
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲AHPBM-F PN16 25/4/0,14 ext.thr. flow
Product details
| Gross weight | 1.3 Kg |
| Net weight | 1.3 Kg |
| Volume | 2.228 Liter |
| EAN | 5702421558164 |
| Gross weight | 1.3 Kg |
| Net weight | 1.3 Kg |
| Volume | 2.228 Liter |
| EAN | 5702421558164 |
| Actuator diaphragm material | EPDM |
| Application | District Heating |
| Cavitation factor | 0.6 |
| Connection size | G 1 1/4 A |
| Connection types | External Thread |
| Description | AHPBM-F PN16 25/4/0,14 ext.thr. flow |
| Diameter [mm] | 25 mm |
| Differential pressure range [bar] [Max] | 4 bar |
| Differential pressure setting [bar] [Max] | 0.14 bar |
| Differential pressure setting [bar] [Min] | 0.14 bar |
| dPb virtual | 0.1 |
| Flow control | No |
| Flow limitation | Yes |
| Flow rate [m³/h] | 2.2 m³/h |
| Flow rate [m³/h] [Max] | 2.2 m³/h |
| Flow rate [m³/h] [Min] | 0.43 m³/h |
| Function | Diff. press. and flow limiter with int. control valve |
| Function VSP - P | Yes |
| Function VSP - Q | Yes |
| Function VSP - T | No |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 4 m³/h |
| Leakage rate [% Kvs] | 0.05 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Flow |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 10 |
| Pressure class | PN 16 |
| Pressure controller | Differential pressure controller |
| Pressure nominal [bar] | 16 bar |
| Product group | Pressure flow controllers |
| Sealing CV material | EPDM |
| Sealing DP material | EPDM |
| Setting Type | Fixed |
| Stem position | Normally open |
| Stroke [mm] | 5 mm |
| Type | AHPBM-F |
| Valve body material | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve cone CV material | Dezincing free brass CuZn36Pb2As |
| Valve cone DP material | Dezincing free brass CuZn36Pb2As |
| Valve seat material | Dezincing free brass CuZn36Pb2As |
| Valve size | DN 25 |
| Actuator diaphragm material | EPDM |
| Application | District Heating |
| Cavitation factor | 0.6 |
| Connection size | G 1 1/4 A |
| Connection types | External Thread |
| Description | AHPBM-F PN16 25/4/0,14 ext.thr. flow |
| Diameter [mm] | 25 mm |
| Differential pressure range [bar] [Max] | 4 bar |
| Differential pressure setting [bar] [Max] | 0.14 bar |
| Differential pressure setting [bar] [Min] | 0.14 bar |
| dPb virtual | 0.1 |
| Flow control | No |
| Flow limitation | Yes |
| Flow rate [m³/h] | 2.2 m³/h |
| Flow rate [m³/h] [Max] | 2.2 m³/h |
| Flow rate [m³/h] [Min] | 0.43 m³/h |
| Function | Diff. press. and flow limiter with int. control valve |
| Function VSP - P | Yes |
| Function VSP - Q | Yes |
| Function VSP - T | No |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 4 m³/h |
| Leakage rate [% Kvs] | 0.05 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Flow |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 10 |
| Pressure class | PN 16 |
| Pressure controller | Differential pressure controller |
| Pressure nominal [bar] | 16 bar |
| Product group | Pressure flow controllers |
| Sealing CV material | EPDM |
| Sealing DP material | EPDM |
| Setting Type | Fixed |
| Stem position | Normally open |
| Stroke [mm] | 5 mm |
| Type | AHPBM-F |
| Valve body material | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve cone CV material | Dezincing free brass CuZn36Pb2As |
| Valve cone DP material | Dezincing free brass CuZn36Pb2As |
| Valve seat material | Dezincing free brass CuZn36Pb2As |
| Valve size | DN 25 |
Datasheet - PDF
