Reference: 003L3584
Manufacturer: DANFOSS HEATING
Description:
Categories:
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
LAST VIEWED

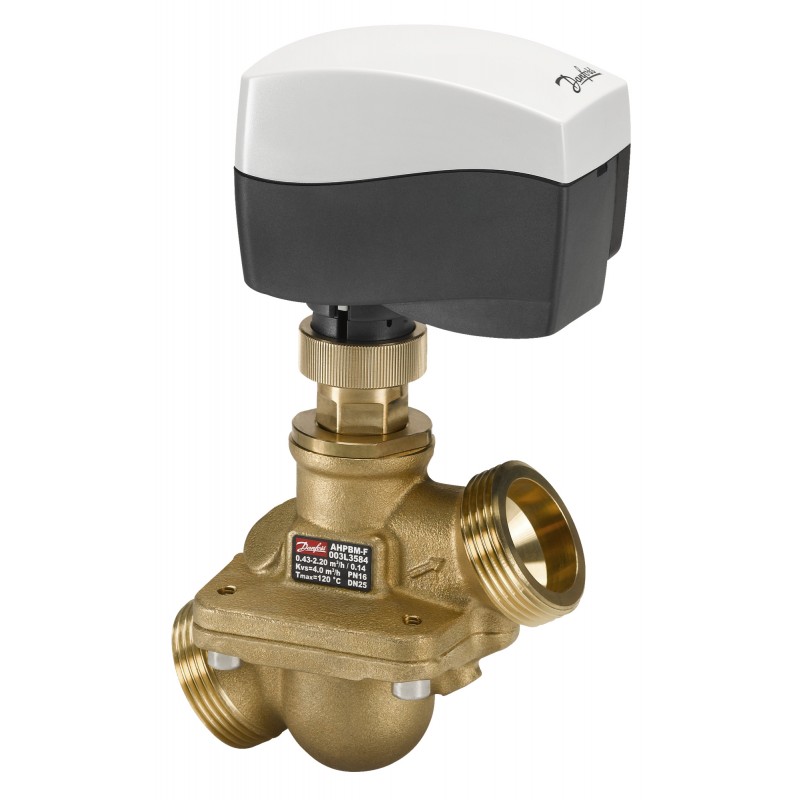

AHPBM-F PN16 25/4/0,14 ext.thr. flow
| Gross weight | 1.3 Kilogram |
| Net weight | 1.3 Kilogram |
| Volume | 2.228 Liter |
| EAN | 5702421558164 |
| Gross weight | 1.3 Kilogram |
| Net weight | 1.3 Kilogram |
| Volume | 2.228 Liter |
| EAN | 5702421558164 |
| Actuator diaphragm material | EPDM |
| Application | District Heating |
| Cavitation factor | 0.6 |
| Connection size | G 1 1/4 A |
| Connection types | External Thread |
| Description | AHPBM-F PN16 25/4/0,14 ext.thr. flow |
| Diameter [mm] | 25 mm |
| Differential pressure range [bar] [Max] | 4 bar |
| Differential pressure setting [bar] [Max] | 0.14 bar |
| Differential pressure setting [bar] [Min] | 0.14 bar |
| dPb virtual | 0.1 |
| Flow control | No |
| Flow limitation | Yes |
| Flow rate [m³/h] | 2.2 m³/h |
| Flow rate [m³/h] [Max] | 2.2 m³/h |
| Flow rate [m³/h] [Min] | 0.43 m³/h |
| Function | Diff. press. and flow limiter with int. control valve |
| Function VSP - P | Yes |
| Function VSP - Q | Yes |
| Function VSP - T | No |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 4 m³/h |
| Leakage rate [% Kvs] | 0.05 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Flow |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 10 |
| Pressure class | PN 16 |
| Pressure controller | Differential pressure controller |
| Pressure nominal [bar] | 16 bar |
| Product group | Pressure flow controllers |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Sealing CV material | EPDM |
| Sealing DP material | EPDM |
| Select if the Shock valve should be with a Fixed pressure or Adjustablepressure | Fixed |
| Stem position | Normally open |
| Stroke [mm] | 5 mm |
| Type | AHPBM-F |
| Valve body material | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve cone CV material | Dezincing free brass CuZn36Pb2As |
| Valve cone DP material | Dezincing free brass CuZn36Pb2As |
| Valve seat material | Dezincing free brass CuZn36Pb2As |
| Valve size | DN 25 |
